ecan

The goal of ecan is to support ecological analysis.

Installation

install.packages("ecan")
  # development
  # install.packages("devtools")
devtools::install_github("matutosi/ecan")

You can use almost the same functionality in shiny.

https://matutosi.shinyapps.io/ecanvis/ .

Example

Prepare and convert data

library(ecan)
library(vegan)
#> Loading required package: permute
#> Loading required package: lattice
#> This is vegan 2.6-4
library(dplyr)
#>
#> Attaching package: 'dplyr'
#> The following objects are masked from 'package:stats':
#>
#>     filter, lag
#> The following objects are masked from 'package:base':
#>
#>     intersect, setdiff, setequal, union
library(stringr)
library(tibble)
library(ggplot2)
data(dune)
data(dune.env)

df <-
  table2df(dune) %>%
  dplyr::left_join(tibble::rownames_to_column(dune.env, "stand"))
#> Joining with `by = join_by(stand)`

sp_dammy <-
 tibble::tibble("species" = colnames(dune),
                "dammy_1" = stringr::str_sub(colnames(dune), 1, 1),
                "dammy_6" = stringr::str_sub(colnames(dune), 6, 6))

df <-
  df %>%
  dplyr::left_join(sp_dammy)
#> Joining with `by = join_by(species)`

df
#> # A tibble: 197 × 10
#>    stand species  abundance    A1 Moisture Manage…¹ Use   Manure dammy_1 dammy_6
#>    <chr> <chr>        <dbl> <dbl> <ord>    <fct>    <ord> <ord>  <chr>   <chr>
#>  1 1     Achimill         1   2.8 1        SF       Hayp… 4      A       i
#>  2 1     Elymrepe         4   2.8 1        SF       Hayp… 4      E       e
#>  3 1     Lolipere         7   2.8 1        SF       Hayp… 4      L       e
#>  4 1     Poaprat          4   2.8 1        SF       Hayp… 4      P       a
#>  5 1     Poatriv          2   2.8 1        SF       Hayp… 4      P       i
#>  6 2     Achimill         3   3.5 1        BF       Hayp… 2      A       i
#>  7 2     Alopgeni         2   3.5 1        BF       Hayp… 2      A       e
#>  8 2     Bellpere         3   3.5 1        BF       Hayp… 2      B       e
#>  9 2     Bromhord         4   3.5 1        BF       Hayp… 2      B       o
#> 10 2     Elymrepe         4   3.5 1        BF       Hayp… 2      E       e
#> # … with 187 more rows, and abbreviated variable name ¹​Management

Diversity index

div <-
  shdi(df) %>%
  dplyr::left_join(select_one2multi(df, "stand"))
#> Joining with `by = join_by(stand)`

group <- "Management"
div_index <- "s"
div %>%
  ggplot(aes(x = .data[[group]], y = .data[[div_index]])) +
    geom_boxplot(outlier.shape = NA) +  # do not show outer point
    geom_jitter(height = 0, width = 0.1)

Indicator Species Analysis (ISA, ind val)

ind_val(df, group = "Moisture", row_data = TRUE)
#> $relfrq
#>                  1    2         3   4
#> Achimill 0.7142857 0.50 0.0000000 0.0
#> Elymrepe 0.4285714 0.50 0.0000000 0.5
#> Lolipere 1.0000000 0.75 0.1428571 0.5
#> Poaprat  1.0000000 1.00 0.2857143 0.5
#> Poatriv  0.7142857 0.75 0.4285714 1.0
#> Alopgeni 0.1428571 0.50 0.4285714 1.0
#> Bellpere 0.4285714 0.75 0.0000000 0.0
#> Bromhord 0.4285714 0.50 0.0000000 0.0
#> Scorautu 0.8571429 1.00 0.8571429 1.0
#> Trifrepe 0.8571429 0.75 0.7142857 1.0
#> Agrostol 0.0000000 0.50 0.8571429 1.0
#> Bracruta 0.7142857 0.75 0.7142857 1.0
#> Cirsarve 0.0000000 0.25 0.0000000 0.0
#> Sagiproc 0.1428571 0.25 0.4285714 1.0
#> Anthodor 0.4285714 0.50 0.1428571 0.0
#> Planlanc 0.7142857 0.50 0.0000000 0.0
#> Rumeacet 0.4285714 0.00 0.0000000 1.0
#> Trifprat 0.4285714 0.00 0.0000000 0.0
#> Juncbufo 0.1428571 0.00 0.1428571 1.0
#> Eleopalu 0.0000000 0.00 0.7142857 0.0
#> Juncarti 0.0000000 0.00 0.5714286 0.5
#> Ranuflam 0.0000000 0.00 0.8571429 0.0
#> Vicilath 0.2857143 0.25 0.0000000 0.0
#> Hyporadi 0.1428571 0.25 0.1428571 0.0
#> Chenalbu 0.0000000 0.00 0.1428571 0.0
#> Comapalu 0.0000000 0.00 0.2857143 0.0
#> Callcusp 0.0000000 0.00 0.4285714 0.0
#> Airaprae 0.0000000 0.25 0.1428571 0.0
#> Salirepe 0.1428571 0.00 0.2857143 0.0
#> Empenigr 0.0000000 0.00 0.1428571 0.0
#>
#> $relabu
#>                   1         2          3          4
#> Achimill 0.48780488 0.5121951 0.00000000 0.00000000
#> Elymrepe 0.25531915 0.2978723 0.00000000 0.44680851
#> Lolipere 0.46204620 0.3927393 0.05280528 0.09240924
#> Poaprat  0.35036496 0.3576642 0.08759124 0.20437956
#> Poatriv  0.24806202 0.2713178 0.15503876 0.32558140
#> Alopgeni 0.02846975 0.2241993 0.19928826 0.54804270
#> Bellpere 0.40000000 0.6000000 0.00000000 0.00000000
#> Bromhord 0.39506173 0.6049383 0.00000000 0.00000000
#> Scorautu 0.33922261 0.2226148 0.24028269 0.19787986
#> Trifrepe 0.27636364 0.2290909 0.18909091 0.30545455
#> Agrostol 0.00000000 0.2818792 0.38926174 0.32885906
#> Bracruta 0.29197080 0.1532847 0.24817518 0.30656934
#> Cirsarve 0.00000000 1.0000000 0.00000000 0.00000000
#> Sagiproc 0.05161290 0.2258065 0.18064516 0.54193548
#> Anthodor 0.33333333 0.5185185 0.14814815 0.00000000
#> Planlanc 0.70588235 0.2941176 0.00000000 0.00000000
#> Rumeacet 0.50000000 0.0000000 0.00000000 0.50000000
#> Trifprat 1.00000000 0.0000000 0.00000000 0.00000000
#> Juncbufo 0.06060606 0.0000000 0.09090909 0.84848485
#> Eleopalu 0.00000000 0.0000000 1.00000000 0.00000000
#> Juncarti 0.00000000 0.0000000 0.50000000 0.50000000
#> Ranuflam 0.00000000 0.0000000 1.00000000 0.00000000
#> Vicilath 0.63157895 0.3684211 0.00000000 0.00000000
#> Hyporadi 0.19047619 0.3333333 0.47619048 0.00000000
#> Chenalbu 0.00000000 0.0000000 1.00000000 0.00000000
#> Comapalu 0.00000000 0.0000000 1.00000000 0.00000000
#> Callcusp 0.00000000 0.0000000 1.00000000 0.00000000
#> Airaprae 0.00000000 0.5384615 0.46153846 0.00000000
#> Salirepe 0.27272727 0.0000000 0.72727273 0.00000000
#> Empenigr 0.00000000 0.0000000 1.00000000 0.00000000
#>
#> $indval
#>                    1          2           3          4
#> Achimill 0.348432056 0.25609756 0.000000000 0.00000000
#> Elymrepe 0.109422492 0.14893617 0.000000000 0.22340426
#> Lolipere 0.462046205 0.29455446 0.007543612 0.04620462
#> Poaprat  0.350364964 0.35766423 0.025026069 0.10218978
#> Poatriv  0.177187154 0.20348837 0.066445183 0.32558140
#> Alopgeni 0.004067107 0.11209964 0.085409253 0.54804270
#> Bellpere 0.171428571 0.45000000 0.000000000 0.00000000
#> Bromhord 0.169312169 0.30246914 0.000000000 0.00000000
#> Scorautu 0.290762241 0.22261484 0.205956588 0.19787986
#> Trifrepe 0.236883117 0.17181818 0.135064935 0.30545455
#> Agrostol 0.000000000 0.14093960 0.333652924 0.32885906
#> Bracruta 0.208550574 0.11496350 0.177267987 0.30656934
#> Cirsarve 0.000000000 0.25000000 0.000000000 0.00000000
#> Sagiproc 0.007373272 0.05645161 0.077419355 0.54193548
#> Anthodor 0.142857143 0.25925926 0.021164021 0.00000000
#> Planlanc 0.504201681 0.14705882 0.000000000 0.00000000
#> Rumeacet 0.214285714 0.00000000 0.000000000 0.50000000
#> Trifprat 0.428571429 0.00000000 0.000000000 0.00000000
#> Juncbufo 0.008658009 0.00000000 0.012987013 0.84848485
#> Eleopalu 0.000000000 0.00000000 0.714285714 0.00000000
#> Juncarti 0.000000000 0.00000000 0.285714286 0.25000000
#> Ranuflam 0.000000000 0.00000000 0.857142857 0.00000000
#> Vicilath 0.180451128 0.09210526 0.000000000 0.00000000
#> Hyporadi 0.027210884 0.08333333 0.068027211 0.00000000
#> Chenalbu 0.000000000 0.00000000 0.142857143 0.00000000
#> Comapalu 0.000000000 0.00000000 0.285714286 0.00000000
#> Callcusp 0.000000000 0.00000000 0.428571429 0.00000000
#> Airaprae 0.000000000 0.13461538 0.065934066 0.00000000
#> Salirepe 0.038961039 0.00000000 0.207792208 0.00000000
#> Empenigr 0.000000000 0.00000000 0.142857143 0.00000000
#>
#> $maxcls
#> Achimill Elymrepe Lolipere  Poaprat  Poatriv Alopgeni Bellpere Bromhord
#>        1        4        1        2        4        4        2        2
#> Scorautu Trifrepe Agrostol Bracruta Cirsarve Sagiproc Anthodor Planlanc
#>        1        4        3        4        2        4        2        1
#> Rumeacet Trifprat Juncbufo Eleopalu Juncarti Ranuflam Vicilath Hyporadi
#>        4        1        4        3        3        3        1        2
#> Chenalbu Comapalu Callcusp Airaprae Salirepe Empenigr
#>        3        3        3        2        3        3
#>
#> $indcls
#>   Achimill   Elymrepe   Lolipere    Poaprat    Poatriv   Alopgeni   Bellpere
#> 0.34843206 0.22340426 0.46204620 0.35766423 0.32558140 0.54804270 0.45000000
#>   Bromhord   Scorautu   Trifrepe   Agrostol   Bracruta   Cirsarve   Sagiproc
#> 0.30246914 0.29076224 0.30545455 0.33365292 0.30656934 0.25000000 0.54193548
#>   Anthodor   Planlanc   Rumeacet   Trifprat   Juncbufo   Eleopalu   Juncarti
#> 0.25925926 0.50420168 0.50000000 0.42857143 0.84848485 0.71428571 0.28571429
#>   Ranuflam   Vicilath   Hyporadi   Chenalbu   Comapalu   Callcusp   Airaprae
#> 0.85714286 0.18045113 0.08333333 0.14285714 0.28571429 0.42857143 0.13461538
#>   Salirepe   Empenigr
#> 0.20779221 0.14285714
#>
#> $pval
#> Achimill Elymrepe Lolipere  Poaprat  Poatriv Alopgeni Bellpere Bromhord
#>    0.240    0.417    0.062    0.378    0.502    0.053    0.131    0.190
#> Scorautu Trifrepe Agrostol Bracruta Cirsarve Sagiproc Anthodor Planlanc
#>    0.797    0.698    0.383    0.614    0.286    0.072    0.311    0.107
#> Rumeacet Trifprat Juncbufo Eleopalu Juncarti Ranuflam Vicilath Hyporadi
#>    0.092    0.136    0.004    0.024    0.214    0.001    0.699    1.000
#> Chenalbu Comapalu Callcusp Airaprae Salirepe Empenigr
#>    1.000    0.449    0.072    0.755    0.594    1.000
#>
#> $error
#> [1] 0
#>
#> attr(,"class")
#> [1] "indval"
ind_val(df, group = "Management")
#> Joining with `by = join_by(numeric_Management)`
#> # A tibble: 30 × 4
#>    Management species  ind.val p.value
#>    <fct>      <chr>      <dbl>   <dbl>
#>  1 SF         Elymrepe   0.188   0.684
#>  2 SF         Alopgeni   0.547   0.038
#>  3 SF         Agrostol   0.472   0.054
#>  4 SF         Cirsarve   0.167   1
#>  5 SF         Sagiproc   0.241   0.514
#>  6 SF         Chenalbu   0.167   1
#>  7 BF         Achimill   0.386   0.118
#>  8 BF         Lolipere   0.45    0.07
#>  9 BF         Poaprat    0.379   0.188
#> 10 BF         Bellpere   0.362   0.126
#> # … with 20 more rows
ind_val(df, group = "Use")
#> Joining with `by = join_by(numeric_Use)`
#> # A tibble: 30 × 4
#>    Use      species  ind.val p.value
#>    <ord>    <chr>      <dbl>   <dbl>
#>  1 Haypastu Elymrepe   0.292   0.288
#>  2 Haypastu Lolipere   0.259   0.796
#>  3 Haypastu Poaprat    0.288   0.824
#>  4 Haypastu Poatriv    0.451   0.118
#>  5 Haypastu Alopgeni   0.359   0.184
#>  6 Haypastu Agrostol   0.269   0.589
#>  7 Haypastu Cirsarve   0.125   1
#>  8 Haypastu Sagiproc   0.178   0.8
#>  9 Haypastu Juncbufo   0.118   0.848
#> 10 Haypastu Chenalbu   0.125   1
#> # … with 20 more rows
ind_val(df, group = "Manure")
#> Joining with `by = join_by(numeric_Manure)`
#> # A tibble: 30 × 4
#>    Manure species  ind.val p.value
#>    <ord>  <chr>      <dbl>   <dbl>
#>  1 4      Elymrepe   0.5     0.048
#>  2 4      Lolipere   0.351   0.211
#>  3 4      Poaprat    0.315   0.28
#>  4 4      Bellpere   0.248   0.469
#>  5 4      Cirsarve   0.333   0.279
#>  6 2      Achimill   0.309   0.262
#>  7 2      Poatriv    0.299   0.394
#>  8 2      Bromhord   0.173   0.703
#>  9 2      Anthodor   0.178   0.763
#> 10 2      Rumeacet   0.522   0.041
#> # … with 20 more rows

Cluster analysis

library(ggdendro)
library(dendextend)
#> Registered S3 method overwritten by 'dendextend':
#>   method     from
#>   rev.hclust vegan
#>
#> ---------------------
#> Welcome to dendextend version 1.16.0
#> Type citation('dendextend') for how to cite the package.
#>
#> Type browseVignettes(package = 'dendextend') for the package vignette.
#> The github page is: https://github.com/talgalili/dendextend/
#>
#> Suggestions and bug-reports can be submitted at: https://github.com/talgalili/dendextend/issues
#> You may ask questions at stackoverflow, use the r and dendextend tags:
#>   https://stackoverflow.com/questions/tagged/dendextend
#>
#>  To suppress this message use:  suppressPackageStartupMessages(library(dendextend))
#> ---------------------
#>
#> Attaching package: 'dendextend'
#> The following object is masked from 'package:ggdendro':
#>
#>     theme_dendro
#> The following object is masked from 'package:permute':
#>
#>     shuffle
#> The following object is masked from 'package:stats':
#>
#>     cutree

cls <- cluster(dune, c_method = "average", d_method = "euclidean")
ggdendro::ggdendrogram(cls)


indiv <- "stand"
group <- "Use"

ggdendro::ggdendrogram(cls_add_group(cls, df, indiv, group))
#> Joining with `by = join_by(stand)`


col <- cls_color(cls, df, indiv, group)
#> Joining with `by = join_by(stand)`
#> Joining with `by = join_by(Use)`
cls <-
  cls_add_group(cls, df, indiv, group) %>%
  stats::as.dendrogram()
#> Joining with `by = join_by(stand)`
labels_colors(cls) <- gray(0)

plot(cls)
dendextend::colored_bars(colors = col, cls, group, y_shift = 0,  y_scale = 3)
par(new = TRUE)
plot(cls)

Ordination

ord_dca <- ordination(dune, o_method = "dca")
ord_pca <-
  df %>%
  df2table() %>%
  ordination(o_method = "pca")

ord_dca_st <-
  ord_extract_score(ord_dca, score = "st_scores")

ord_dca_st %>%
  ggplot(aes(DCA1, DCA2, label = rownames(.))) +
  geom_text()

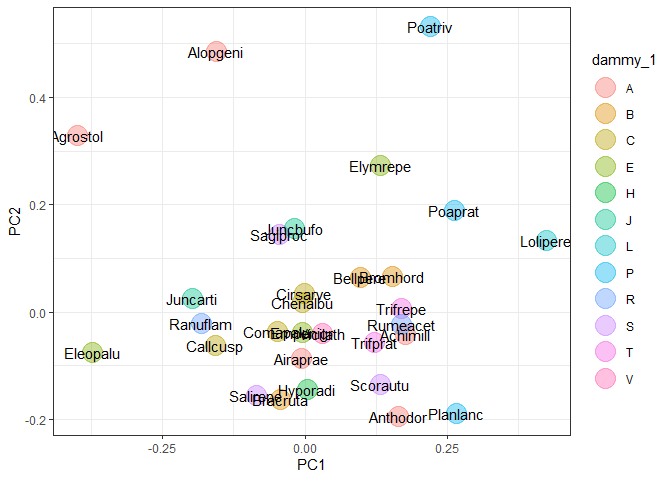

indiv <- "species"
group <- "dammy_1"
ord_pca_sp <-
  ord_add_group(ord_pca, score = "sp_scores", df, indiv, group)
#> Joining with `by = join_by(species)`

ord_pca_sp %>%
  ggplot(aes(PC1, PC2, label = rownames(.))) +
  geom_point(aes(col = .data[[group]]), alpha = 0.4, size = 7) +
  geom_text() +
  theme_bw()

Citation

Toshikazu Matsumura (2022) Ecological analysis tools with R. https://github.com/matutosi/ecan/.

These binaries (installable software) and packages are in development.
They may not be fully stable and should be used with caution. We make no claims about them.
