glydraw is a ggplot2-native R engine for drawing
reproducible SNFG glycan cartoons from glycan structure objects or text
notations, with support for batch export, structural highlighting, and
deep appearance customization.
We recommend installing the meta-package glycoverse, which includes this package and other core glycoverse packages.
If you don’t want to install all glycoverse packages, you can only install glydraw.
You can install the latest release of glydraw from CRAN:
pak::pkg_install("glydraw")Or from r-universe:
pak::repo_add(glycoverse = "https://glycoverse.r-universe.dev")
pak::pkg_install("glydraw")Or install the latest GitHub release:
pak::pkg_install("glycoverse/glydraw@*release")Or install the development version from GitHub:
pak::pkg_install("glycoverse/glydraw")library(glydraw)
glycan <- paste0(
"Glc(a1-2)Glc(a1-3)Glc(a1-3)Man(a1-2)Man(a1-2)Man(a1-3)[Man(a1-2)Man(a1-3)",
"[Man(a1-2)Man(a1-6)]Man(a1-6)]Man(b1-4)GlcNAc(b1-4)GlcNAc(a1-"
)
draw_cartoon(glycan, red_end = "PP-Dol")

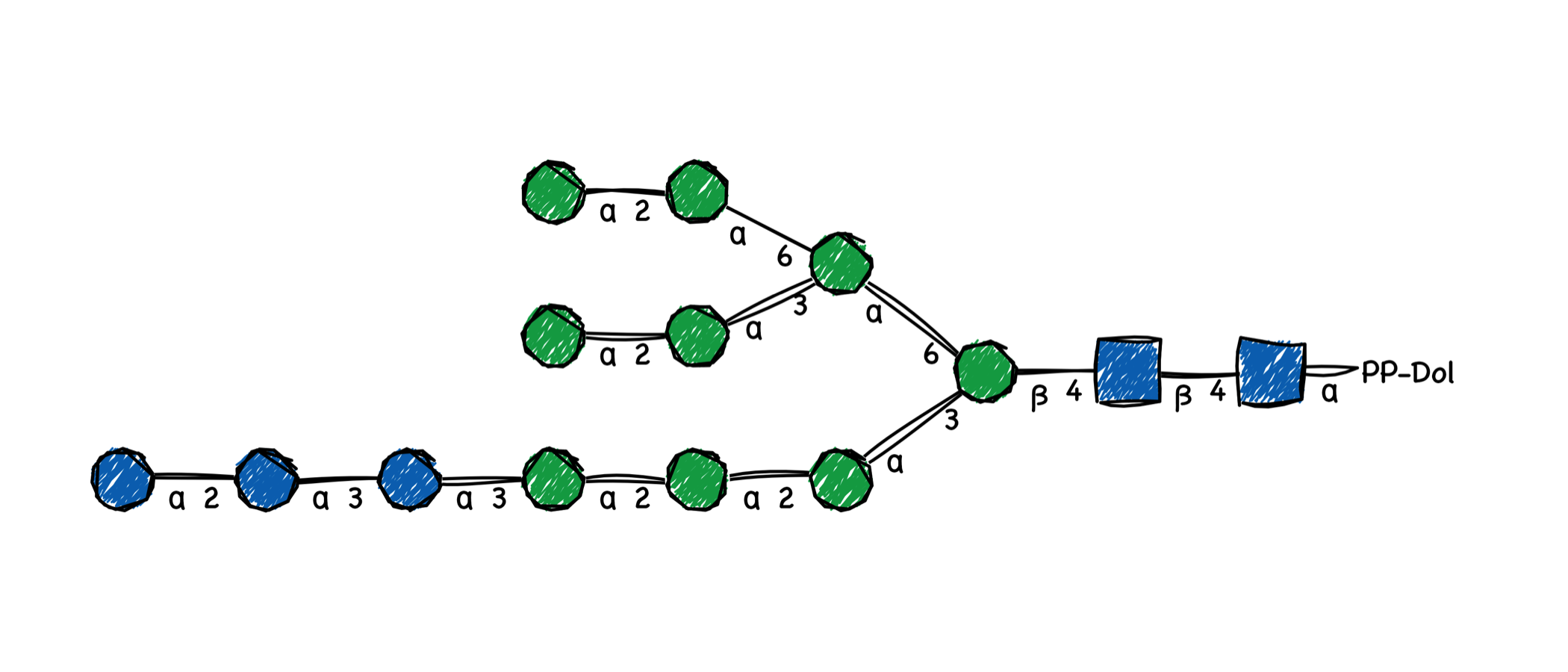

draw_cartoon_sketch() plots a glycan cartoon with
hand-drawn strokes and patterned residue fills.
library(glydraw)
glycan <- paste0(
"Glc(a1-2)Glc(a1-3)Glc(a1-3)Man(a1-2)Man(a1-2)Man(a1-3)[Man(a1-2)Man(a1-3)",
"[Man(a1-2)Man(a1-6)]Man(a1-6)]Man(b1-4)GlcNAc(b1-4)GlcNAc(a1-"
)
draw_cartoon_sketch(glycan, red_end = "PP-Dol", seed = 1)

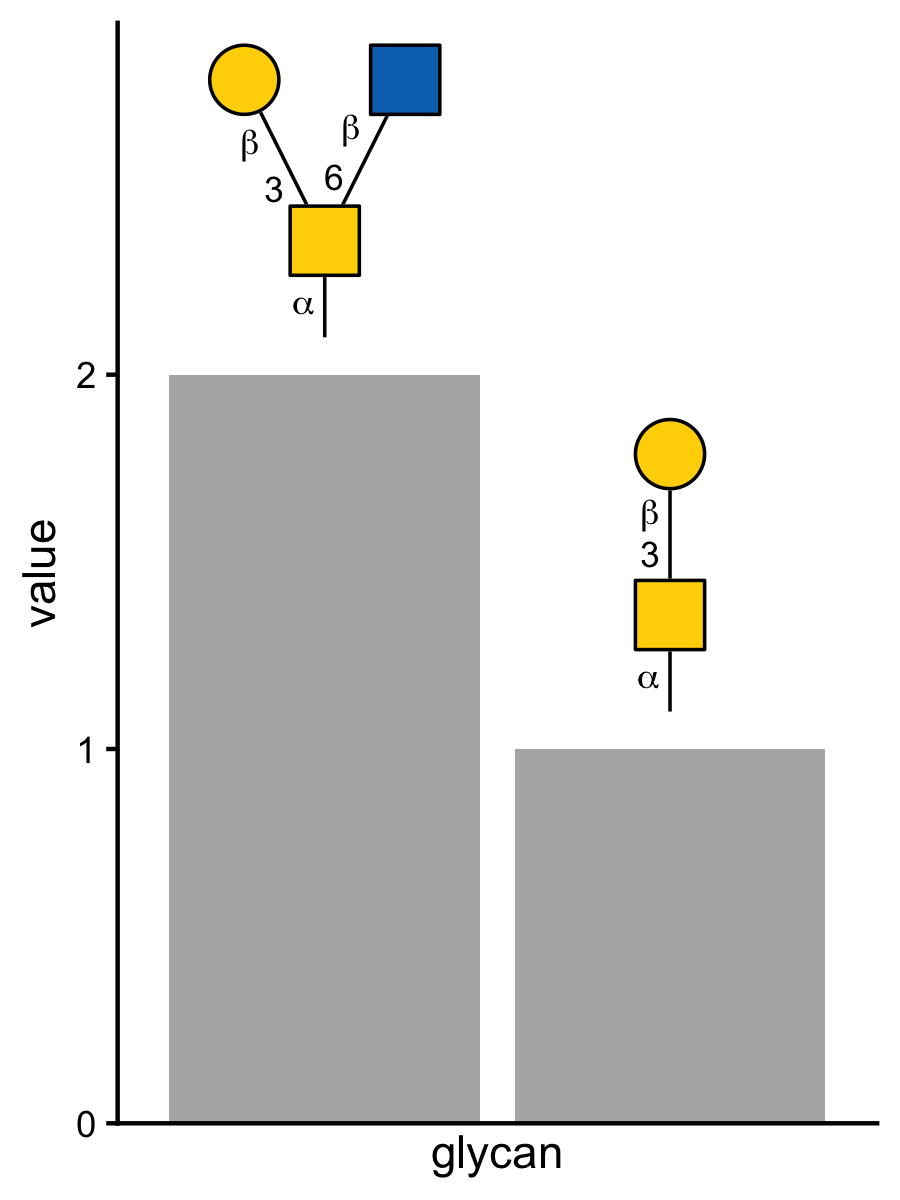

glydraw provides ggplot2 extensions to plot
glycan cartoons on a panel, axis, or legend. For example,
geom_glycan() adds glycan cartoons to a bar plot:
library(ggplot2)
library(glydraw)
library(tibble)
plot_data <- tibble(
glycan = c("Gal(b1-3)GalNAc(a1-", "Gal(b1-3)[GlcNAc(b1-6)]GalNAc(a1-"),
value = c(1, 2)
)
ggplot(plot_data, aes(glycan, value)) +
geom_col(fill = "grey70") +
geom_glycan(
aes(structure = glycan),
orient = "up",
size = 0.5,
vjust = 0,
position = position_nudge(y = 0.1)
) +
scale_y_continuous(expand = expansion(mult = c(0, 0.4))) +
theme_classic() +
theme(
axis.text.x = element_blank(),
axis.ticks.x = element_blank()
)

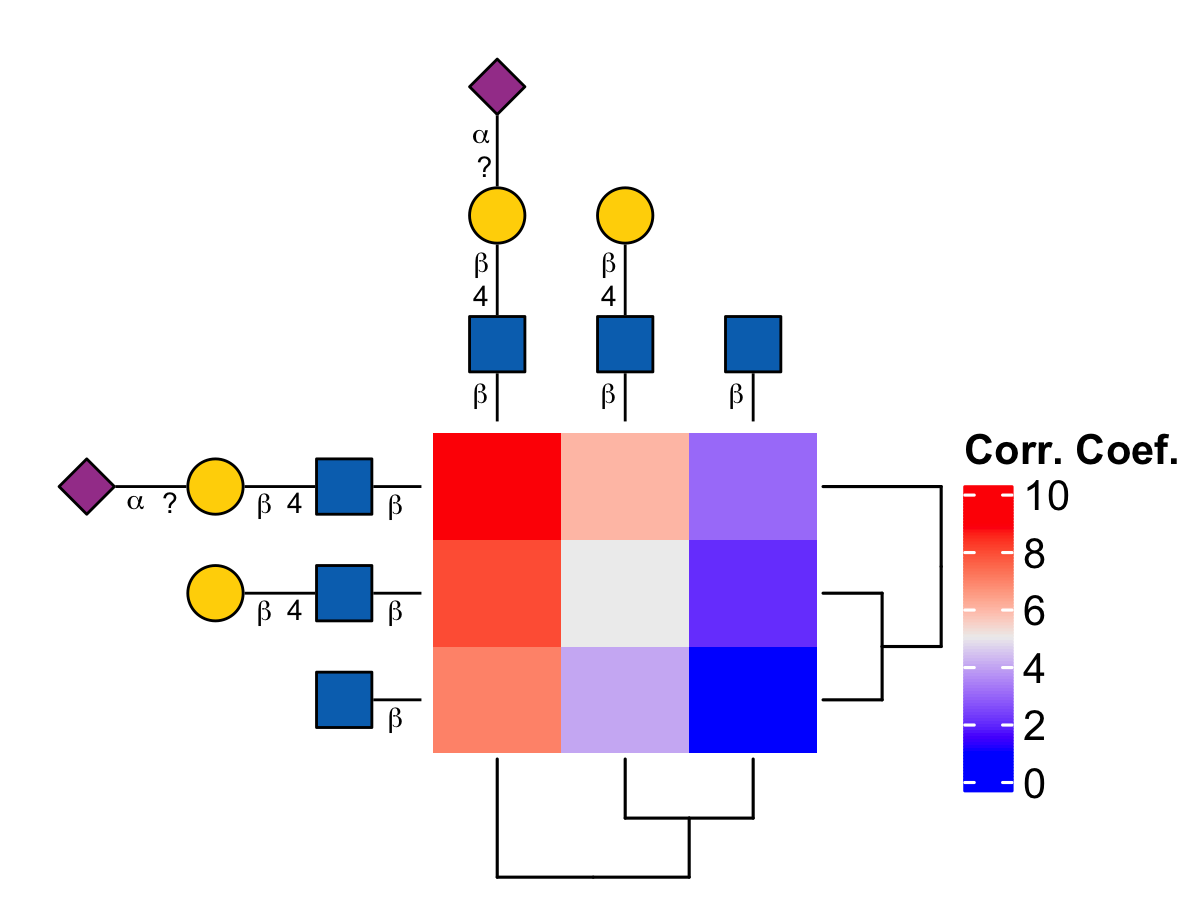

anno_glycan() adds glycan cartoons as row or column
labels in a ComplexHeatmap
heatmap.
suppressPackageStartupMessages(library(ComplexHeatmap))
mat <- matrix(
seq_len(9),
nrow = 3,
dimnames = list(paste0("row", 1:3), paste0("column", 1:3))
)
structures <- c(
"GlcNAc(b1-",
"Gal(b1-4)GlcNAc(b1-",
"Neu5Ac(a2-?)Gal(b1-4)GlcNAc(b1-"
)
Heatmap(
mat,
name = "Corr. Coef.",
show_row_names = FALSE,
show_column_names = FALSE,
row_dend_side = "right",
column_dend_side = "bottom",
left_annotation = rowAnnotation(
glycan = anno_glycan(structures, which = "row")
),
top_annotation = HeatmapAnnotation(
glycan = anno_glycan(structures, which = "column")
)
)
glycan <- paste0(
"Neu5Ac(a2-3)Gal(b1-3)[Fuc(a1-2)Gal(b1-3)[Fuc(a1-4)]GlcNAc(b1-3)",
"[Gal(b1-4)[Fuc(a1-3)]GlcNAc(b1-6)]Gal(b1-4)GlcNAc(b1-6)]GalNAc(a1-"
)
draw_cartoon(glycan, style = style_glygen())

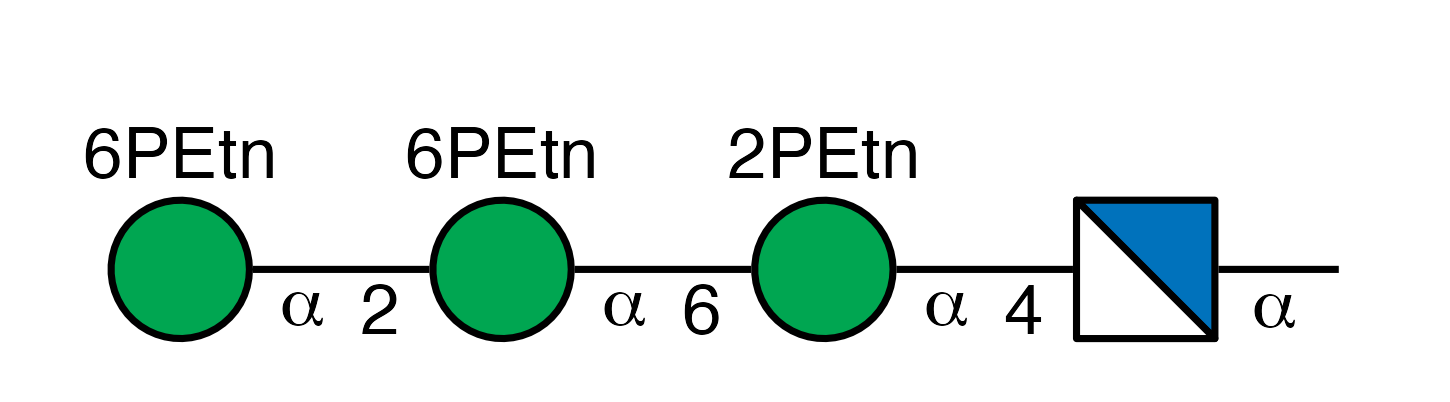

glycan <- "Gal(b1-3)[Neu5Ac(a2-3)Gal6S(b1-4)[Fuc(a1-3)]GlcNAc(b1-6)]GalNAc(a1-"
draw_cartoon(glycan, orient = "up", red_end = "Ser/Thr")
glycan <- "Fuc(a1-3)[Fuc(a1-6)]GlcNAc(b1-"
draw_cartoon(
glycan,
orient = "up",
red_end = "Asn",
style = style_glydraw(fuc_orient = "up")
)
glycan <- paste0(
"WURCS=2.0/3,4,3/[a2122h-1a_1-5_2*N][a1122h-1a_1-5_2*OP^XOCCN/3O/3=O]",
"[a1122h-1a_1-5_6*OP^XOCCN/3O/3=O]/1-2-3-3/a4-b1_b6-c1_c2-d1"
)
draw_cartoon(glycan)
glycan <- "Glc(b1-4)[Xyl(a1-6)][Xyl(a1-2)]Glc(b1-4)[Xyl(a1-6)]Glc(b1-4)[Fuc(a1-2)Gal(b1-2)Xyl(a1-6)]Glc(b1-4)Glc(b1-4)[Xyl(a1-6)]Glc(b1-"
draw_cartoon(glycan, style = style_glydraw(fuc_orient = "up"))
