lorax

The goal of lorax is to help look at different aspects of tree- and rule-based models.

lorax supports a few APIs:

as.party() converts trees to the format used by partykit::ctree(), mostly because it has an amazing plot() method.
extract_rules() helps write out the logical paths to the terminal nodes.
active_predictors() enumerates which predictors were actually used in a split.
var_imp() is a wrapper for any importance method contained in the package. This is a wrapper that enables a common interface to the scores.

Here is a list of which classes have which methods:

class	var_imp	active_predictors	as.party	extract_rules
bart	n/a	✔	✔	✔
C5.0	n/a	✔	✔	✔
cforest	✔	✔	n/a	✔
cubist	✖	✔	✖	✔
grf	✔	✔	✔	✔
lgb.Booster	✔	✔	✔	✔
ObliqueForest	✔	✔	✖	✔
party	✔	✔	n/a	✔
randomForest	✔	✔	✔	✔
ranger	✔	✔	✔	✔
rpart	✔	✔	n/a	✔
xgb.Booster	✔	✔	✔	✔

Note that as.party.rpart() is in the partykit package and that cforest is made out of party objects.

Installation

You can install the released version of lorax from CRAN:

install.packages("lorax")

Or install the development version from GitHub:

pak::pak("tidymodels/lorax")

Example

set.seed(822)
rngr_fit <- ranger(species ~ ., data = penguins, max.depth = 3, num.trees = 10)

rngr_party <- as.party(rngr_fit, tree = 1, data = penguins)
rngr_party
#>
#> Model formula:
#> ~island + bill_length_mm + bill_depth_mm + flipper_length_mm +
#>     body_mass_g + sex + year
#>
#> Fitted party:
#> [1] root
#> |   [2] flipper_length_mm <= 206.5
#> |   |   [3] body_mass_g <= 2800: Adelie (n = 3, err = 66.7%)
#> |   |   [4] body_mass_g > 2800
#> |   |   |   [5] bill_length_mm <= 44.15: Adelie (n = 152, err = 3.9%)
#> |   |   |   [6] bill_length_mm > 44.15: Chinstrap (n = 60, err = 6.7%)
#> |   [7] flipper_length_mm > 206.5
#> |   |   [8] bill_depth_mm <= 18.15: Gentoo (n = 123, err = 0.8%)
#> |   |   [9] bill_depth_mm > 18.15: Chinstrap (n = 6, err = 16.7%)
#>
#> Number of inner nodes:    4
#> Number of terminal nodes: 5

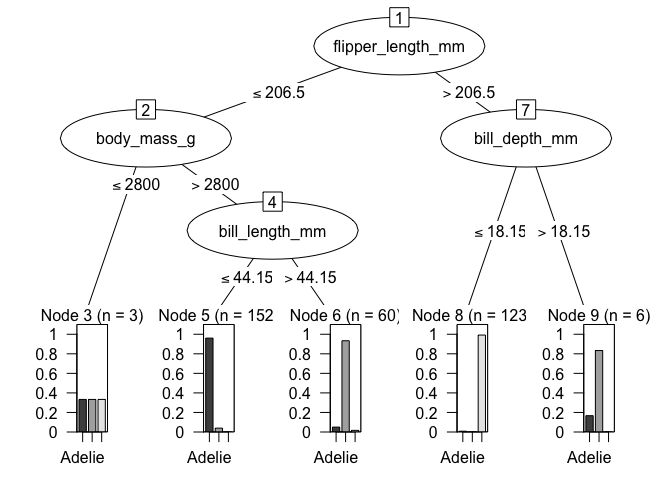

plot(rngr_party)

all_rules <- extract_rules(rngr_party, trees = 10)

# An expression
all_rules$rules[[1]]
#> flipper_length_mm <= 206.5 & body_mass_g <= 2800

# Text
all_rules$rules[[1]] |> rule_text()
#> [1] "flipper_length_mm <= 206.5 & body_mass_g <= 2800"

# Substitutions
new_names <-
 tribble(
  ~ original, ~ label,
  "flipper_length_mm", "Flipper Length",
  "body_mass_g", "Body Mass"
 )

all_rules$rules[[1]] |> rule_text(key = new_names)
#> [1] "Flipper Length <= 206.5 & Body Mass <= 2800"

# Bullets:
all_rules$rules[[1]] |>
 rule_text(key = new_names, bullets = TRUE) |>
 cat()
#> * Flipper Length <= 206.5
#> * Body Mass <= 2800

Code of Conduct

Please note that the lorax project is released with a Contributor Code of Conduct. By contributing to this project, you agree to abide by its terms.
