Type:

Package

Title:

Chart Generation for 'Microsoft Word', 'Microsoft Excel' and 'Microsoft PowerPoint' Documents

Version:

0.5.0

Description:

Create native charts for 'Microsoft PowerPoint', 'Microsoft Excel' and 'Microsoft Word' documents. The resulting charts can then be edited and annotated in the host application. It provides functions to create charts and to modify their content and formatting. The chart's underlying data is automatically saved within the 'Word', 'Excel' or 'PowerPoint' file. It extends the 'officer' package, which does not provide native 'Microsoft' chart production.

License:

MIT + file LICENSE

URL:

https://ardata-fr.github.io/officeverse/, https://ardata-fr.github.io/mschart/

BugReports:

https://github.com/ardata-fr/mschart/issues

Depends:

R (≥ 3.5)

Imports:

cellranger, data.table, grDevices, htmltools, officer (≥ 0.7.5), scales, stats, utils, writexl, xml2 (≥ 1.1.0)

Suggests:

doconv (≥ 0.4.0), testthat (≥ 3.0.0)

Config/testthat/edition:

Encoding:

UTF-8

LazyData:

true

Config/roxygen2/version:

8.0.0

NeedsCompilation:

Packaged:

2026-05-16 15:18:39 UTC; davidgohel

Author:

David Gohel [aut, cre], ArData [cph], YouGov [fnd], Jan Marvin Garbuszus [ctb] (support for openxlsx2 and combo charts), Stefan Moog [ctb] (support to set chart and plot area color and border, fix for line style none), Eli Daniels [ctb], Marlon Molina [ctb] (added table feature), Rokas Klydzia [ctb] (custom labels), David Camposeco [ctb] (chart_data_smooth function), Dan Joplin [ctb] (fix scatter plot data structure)

Maintainer:

David Gohel <david.gohel@ardata.fr>

Repository:

CRAN

Date/Publication:

2026-05-16 21:50:37 UTC

Chart Generation for 'Microsoft Word', 'Microsoft Excel' and 'Microsoft PowerPoint' Documents

Description

It lets R users create Microsoft Office charts from data, and then add title, legends, and annotations to the chart object.

The graph produced is a Microsoft graph, which means that it can be edited in your Microsoft software and that the underlying data are available.

The package will not allow you to make the same charts as with ggplot2. It allows only a subset of the charts possible with 'Office Chart'. The package is often used to industrialize graphs that are then consumed and annotated by non-R users.

The following chart types are available.

Classical charts (Office 2007+ DrawingML pipeline):

bar charts: ms_barchart()
line charts: ms_linechart()

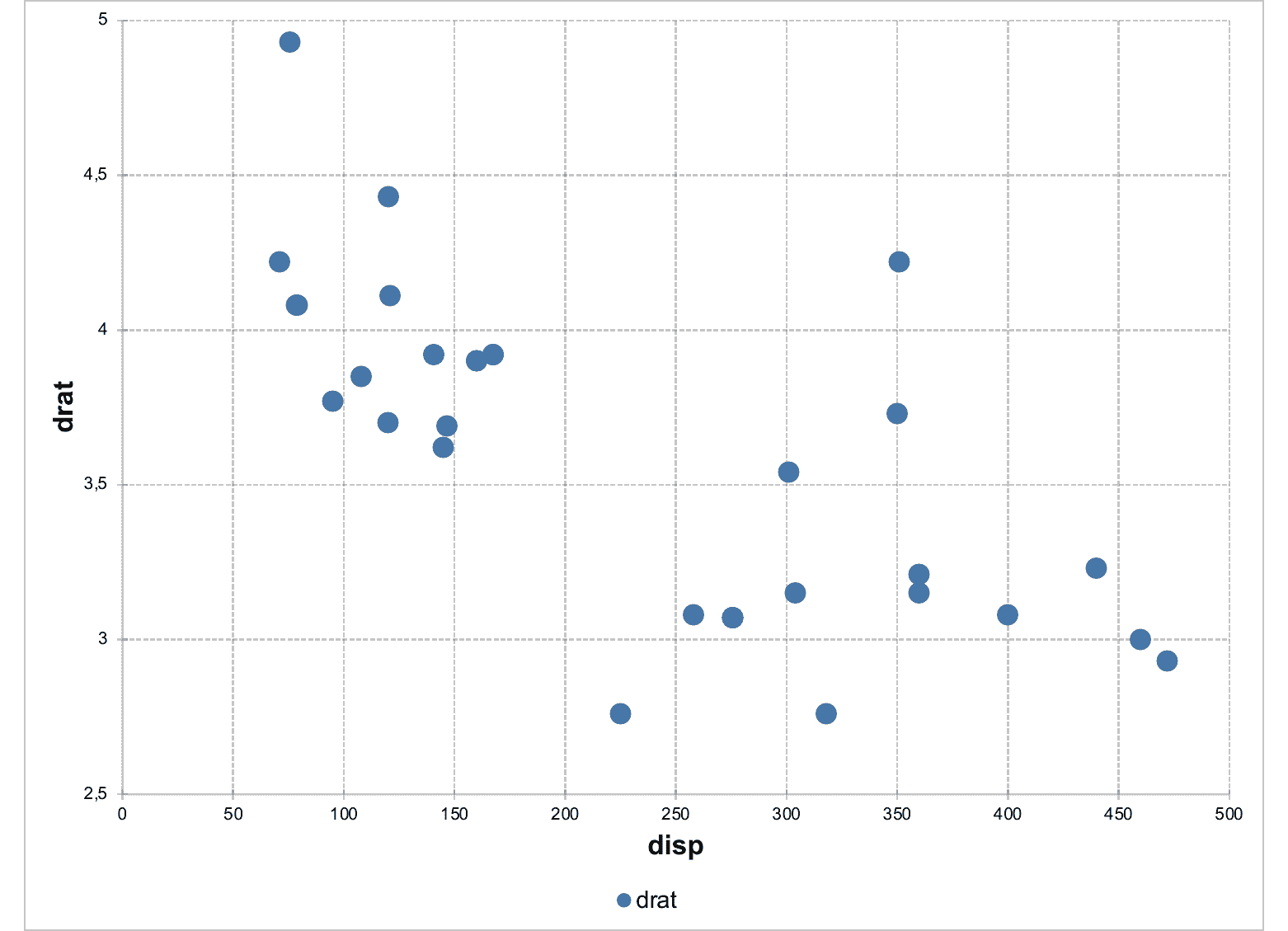

scatter plots: ms_scatterchart()
area charts: ms_areachart()
pie and doughnut charts: ms_piechart()
bubble charts: ms_bubblechart()
radar (spider) charts: ms_radarchart()
stock charts (HLC and OHLC): ms_stockchart()

chartEx charts (Office 2016+ pipeline; older viewers show a placeholder):

box-and-whisker: ms_boxplotchart()
funnel: ms_funnelchart()
histogram: ms_histogramchart()
pareto: ms_paretochart()
sunburst: ms_sunburstchart()
treemap: ms_treemapchart()
waterfall: ms_waterfallchart()

Several classical chart types can be combined on a single chart, with an optional secondary axis (y or x), using ms_chart_combine().

These functions create a 'chart' object that can be customized:

by using options specific to the chart (with chart_settings()),
by changing the options related to the axes (with chart_ax_x() and chart_ax_y()),
by changing the options related to the labels (with chart_data_labels()),
by changing the colors, line widths, ... with functions
- chart_labels_text()
- chart_data_fill()
- chart_data_line_style()
- chart_data_line_width()
- chart_data_size()
- chart_data_smooth()
- chart_data_stroke()
- chart_data_symbol()
by changing the general theme with function chart_theme(),
by changing the title labels with function chart_labels().

You can add a chart into a slide in PowerPoint with function ph_with.ms_chart().

You can add a chart into a Word document with function body_add_chart().

You can add a chart into an Excel sheet with function sheet_add_drawing.ms_chart().

Series styling properties by chart type

Not all series styling properties have an effect on every chart type. A warning is emitted when a property is set on a chart type that does not support it.

Classical charts:

Property	bar	line	area	scatter	stock	radar	bubble	pie
fill	x	x	x	x	x	x	x	x
colour	x	x	x	x	x	x	x	x
symbol		x		x	x	x
size		x		x	x	x
line_width	x	x	x	x	x	x	x	x
line_style		x		x	x	x
smooth		x		x
labels_fp	x	x	x	x		x		x

chartEx charts expose a narrower set of styling knobs, since most visual aspects are computed by Office from the data (bins, levels, connectors, ...). For these, prefer the chart-type-specific chart_settings() method when one is available (e.g. for pareto and boxplot: chart_settings(x, line = fp_border(...))).

Property	boxplot	funnel	histogram	pareto	sunburst	treemap	waterfall
fill	x	x	x	x	x	x	x
colour	x	x	x	x	x	x	x
labels_fp	x	x	x	x	x	x	x

Two arguments often confused: `asis` and `write_data`

asis is a constructor argument (on ms_barchart(), ms_linechart() and most other classical constructors). It describes the input shape of the data frame:

asis = FALSE (default): long format, with a group column that splits the rows into series. mschart reshapes the data internally.
asis = TRUE: wide format, with one column per series. y accepts a vector of series column names.

write_data is an embed-time argument of sheet_add_drawing.ms_chart() for the Excel pipeline. It decides whether mschart writes the chart's data into the target sheet (TRUE, the default) or leaves you in charge of placing it via officer::sheet_write_data() (FALSE, recommended for non-trivial workbooks).

The two arguments are independent: a chart built with asis = TRUE can still be embedded with either write_data = TRUE or write_data = FALSE.

Author(s)

Maintainer: David Gohel david.gohel@ardata.fr

Authors:

David Gohel david.gohel@ardata.fr

Other contributors:

ArData [copyright holder]
YouGov [funder]
Jan Marvin Garbuszus (support for openxlsx2 and combo charts) [contributor]
Stefan Moog moogs@gmx.de (support to set chart and plot area color and border, fix for line style none) [contributor]
Eli Daniels eli.daniels@ardata.fr [contributor]
Marlon Molina (added table feature) [contributor]
Rokas Klydzia (custom labels) [contributor]
David Camposeco david.camposeco.paulsen@gmail.com (chart_data_smooth function) [contributor]
Dan Joplin (fix scatter plot data structure) [contributor]

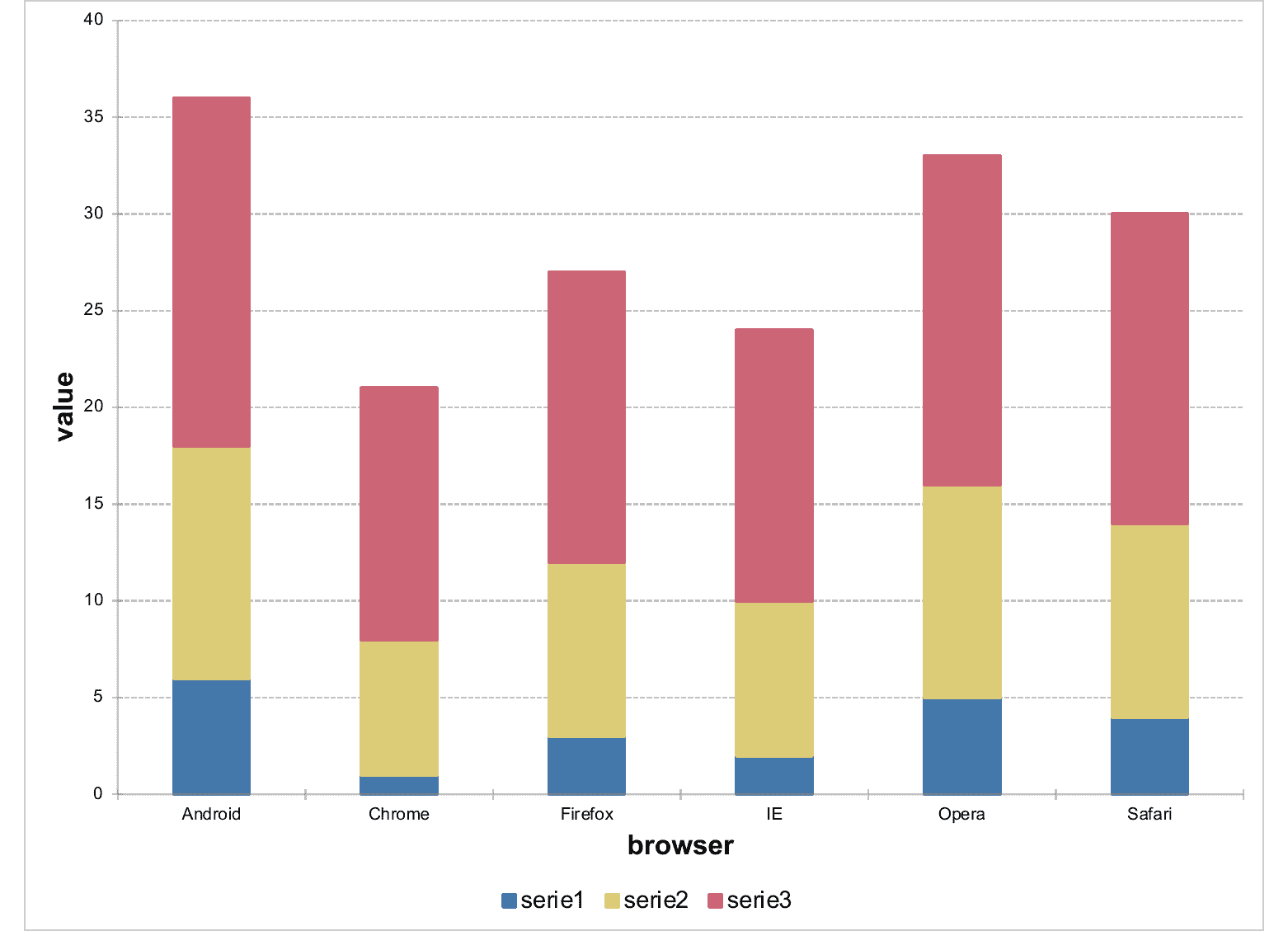

Set a barchart as a stacked barchart

Description

Apply settings to an ms_barchart object to produce a stacked barchart. Options are available to use percentage instead of values and to choose if bars should be vertically or horizontally drawn.

Usage

as_bar_stack(x, dir = "vertical", percent = FALSE, gap_width = 50)

Arguments

x

an ms_barchart object

dir

the direction of the bars in the chart, value must be one of "horizontal" or "vertical".

percent

should bars be displayed as percentages.

gap_width

gap width between bars for each category on a bar chart, as a percentage of the bar width. It can be set between 0 and 500.

Value

An ms_chart object.

Examples

library(officer)

my_bar_stack_01 <- ms_barchart(data = browser_data, x = "browser",
  y = "value", group = "serie")
my_bar_stack_01 <- as_bar_stack( my_bar_stack_01 )

my_bar_stack_02 <- ms_barchart(data = browser_data, x = "browser",
  y = "value", group = "serie")
my_bar_stack_02 <- as_bar_stack( my_bar_stack_02, percent = TRUE,
  dir = "horizontal" )

doc <- read_pptx()
doc <- add_slide(doc, layout = "Title and Content", master = "Office Theme")
doc <- ph_with(doc, my_bar_stack_02, location = ph_location_fullsize())

fileout <- tempfile(fileext = ".pptx")
print(doc, target = fileout)

Add a chart to a Word document

Description

Add a ms_chart to an rdocx object. The graphic will be inserted in an empty paragraph.

Usage

body_add_chart(x, chart, style = NULL, pos = "after", width = 5, height = 3)

Arguments

x

an rdocx object

chart

an ms_chart object.

style

paragraph style

pos

where to add the new element relative to the cursor, one of "after", "before", "on".

height, width

height and width in inches.

Value

An rdocx object.

Examples

library(officer)
my_barchart <- ms_barchart(data = browser_data,
  x = "browser", y = "value", group = "serie")
my_barchart <- chart_settings( my_barchart, grouping = "stacked",
  gap_width = 50, overlap = 100 )

doc <- read_docx()
doc <- body_add_chart(doc, chart = my_barchart, style = "centered")
print(doc, target = tempfile(fileext = ".docx"))

Dummy dataset for barchart

Description

A dataset containing two categorical variables and one integer variable:

Format

A data frame with 18 rows and 3 variables

Details

browser web browser
serie id of series
value integer values

Dummy dataset for time series charts

Description

A dataset containing a date, a categorical, and an integer variable:

Format

A data frame with 36 rows and 3 variables

Details

date date values
browser web browser
freq values in percent

X axis settings

Description

Define settings for an x axis. S3 generic; the default method is documented below. ChartEx charts have a leaner set of supported options - see the package documentation.

Usage

chart_ax_x(x, ...)

## Default S3 method:
chart_ax_x(
  x,
  orientation,
  crosses,
  cross_between,
  major_tick_mark,
  minor_tick_mark,
  tick_label_pos,
  display,
  num_fmt,
  rotation,
  limit_min,
  limit_max,
  position,
  major_unit,
  minor_unit,
  major_time_unit,
  minor_time_unit,
  ...
)

Arguments

x

an ms_chart object.

...

arguments passed to S3 methods.

orientation

axis orientation, one of 'maxMin', 'minMax'.

crosses

specifies how the axis crosses the perpendicular axis, one of 'autoZero', 'max', 'min'.

cross_between

specifies how the value axis crosses the category axis between categories, one of 'between', 'midCat'.

major_tick_mark, minor_tick_mark

tick marks position, one of 'cross', 'in', 'none', 'out'.

tick_label_pos

ticks labels position, one of 'high', 'low', 'nextTo', 'none'.

display

should the axis be displayed (a logical of length 1).

num_fmt

number formatting. See the num_fmt section for more details.

rotation

rotation angle. Value should be between -360 and 360.

limit_min

minimum value on the axis. Date objects are also accepted and will be converted automatically.

limit_max

maximum value on the axis. Date objects are also accepted and will be converted automatically.

position

the value at which this axis crosses the perpendicular axis.

major_unit

numeric, interval between major ticks and gridlines.

minor_unit

numeric, interval between minor ticks and gridlines.

major_time_unit

time unit for major ticks on date axes, one of "days", "months", "years".

minor_time_unit

time unit for minor ticks on date axes, one of "days", "months", "years".

Value

An ms_chart object.

num_fmt

All ⁠%⁠ need to be doubled, ⁠0%%⁠ means "a number and percent symbol".

To my current knowledge, depending on the chart type and options, the following values are not systematically used by office chart engine; i.e. when chart pre-compute percentages, it seems using ⁠0%%⁠ will have no effect.

General: default value
0: display the number with no decimal
0.00: display the number with two decimals
⁠0%%⁠: display as percentages
⁠0.00%%⁠: display as percentages with two decimal places
⁠#,##0⁠
⁠#,##0.00⁠
0.00E+00
⁠# ?/?⁠
⁠# ??/??⁠
mm-dd-yy
d-mmm-yy
d-mmm
mmm-yy
⁠h:mm AM/PM⁠
⁠h:mm:ss AM/PM⁠
h:mm
h:mm:ss
⁠m/d/yy h:mm⁠
⁠#,##0 ;(#,##0)⁠
⁠#,##0 ;[Red](#,##0)⁠
⁠#,##0.00;(#,##0.00)⁠
⁠#,##0.00;[Red](#,##0.00)⁠
mm:ss
⁠[h]:mm:ss⁠
mmss.0
⁠##0.0E+0⁠
@

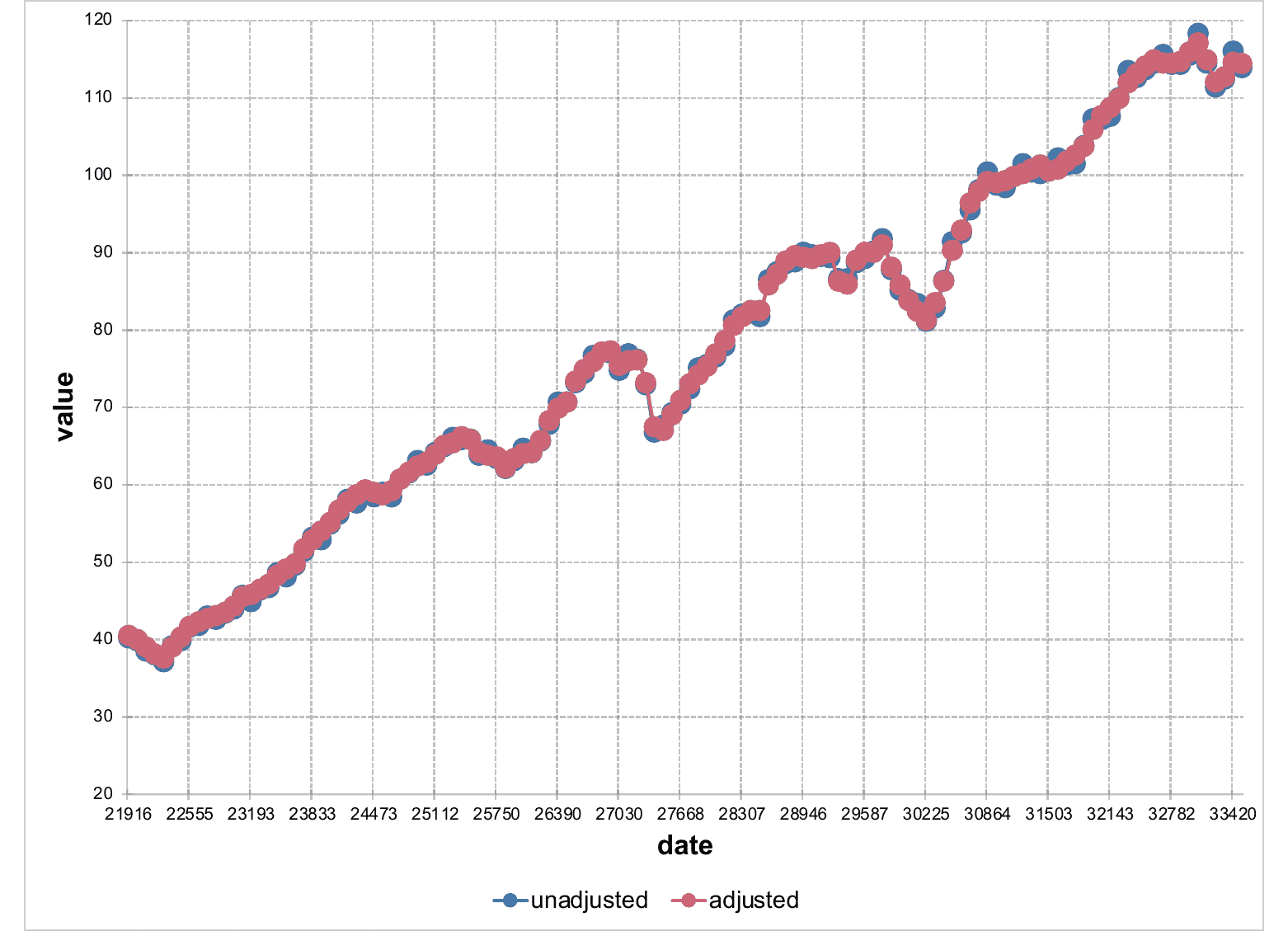

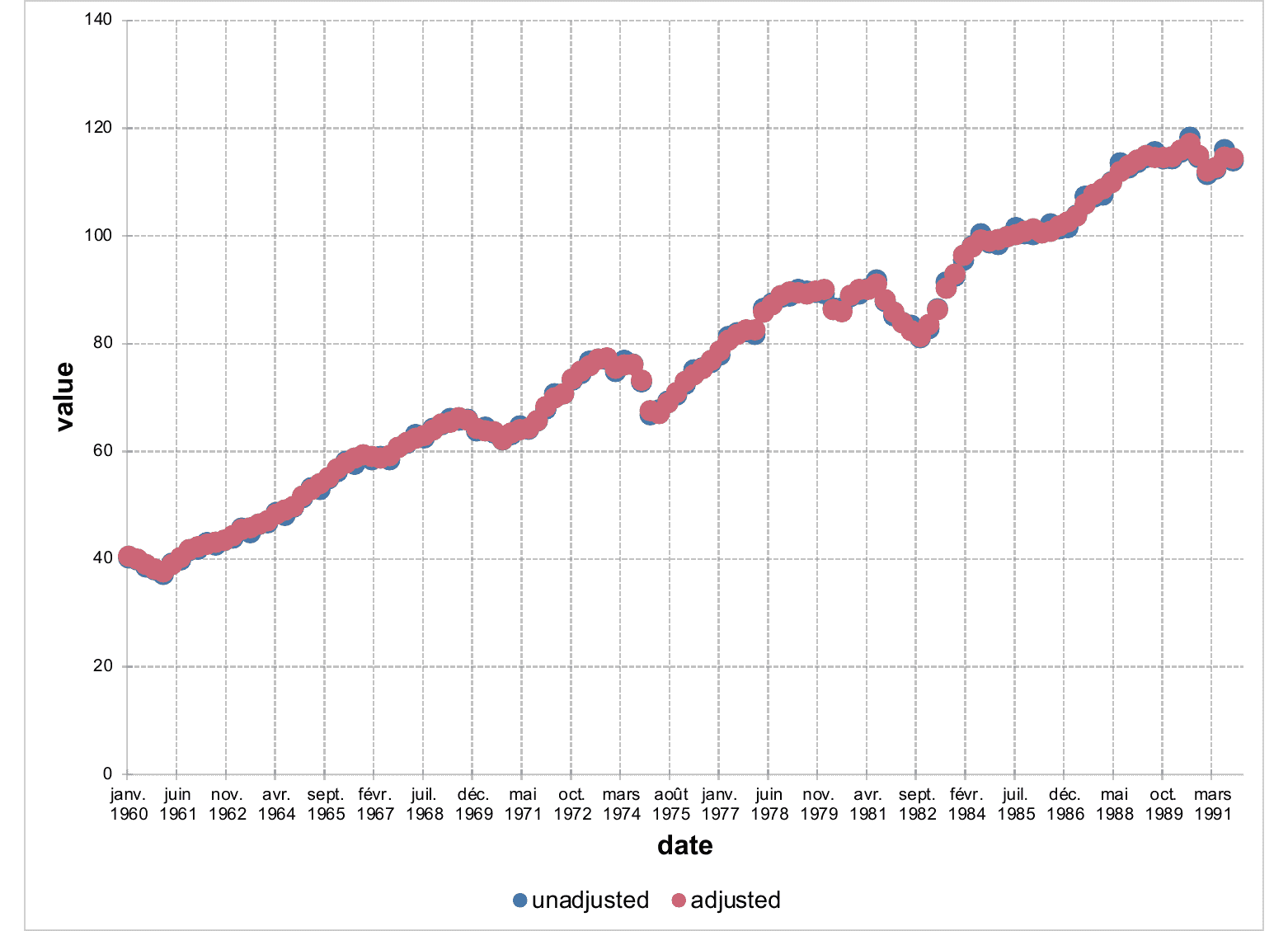

Illustrations

Examples

library(mschart)

chart_01 <- ms_linechart(
  data = us_indus_prod,
  x = "date", y = "value",
  group = "type"
)

chart_01 <- chart_ax_y(x = chart_01, limit_min = 20, limit_max = 120)
chart_01

# control axis intervals
chart_01 <- chart_ax_x(chart_01,
  major_unit = 10, major_time_unit = "years"
)
chart_01 <- chart_ax_y(chart_01, major_unit = 20)
chart_01

Y axis settings

Description

Define settings for a y axis. S3 generic; the default method is documented below. ChartEx charts have a leaner set of supported options - see the package documentation.

Usage

chart_ax_y(x, ...)

## Default S3 method:
chart_ax_y(
  x,
  orientation,
  crosses,
  cross_between,
  major_tick_mark,
  minor_tick_mark,
  tick_label_pos,
  display,
  num_fmt,
  rotation,
  limit_min,
  limit_max,
  position,
  major_unit,
  minor_unit,
  major_time_unit,
  minor_time_unit,
  ...
)

Arguments

x

an ms_chart object.

...

arguments passed to S3 methods.

orientation

axis orientation, one of 'maxMin', 'minMax'.

crosses

specifies how the axis crosses the perpendicular axis, one of 'autoZero', 'max', 'min'.

cross_between

specifies how the value axis crosses the category axis between categories, one of 'between', 'midCat'.

major_tick_mark, minor_tick_mark

tick marks position, one of 'cross', 'in', 'none', 'out'.

tick_label_pos

ticks labels position, one of 'high', 'low', 'nextTo', 'none'.

display

should the axis be displayed (a logical of length 1).

num_fmt

number formatting. See the num_fmt section for more details.

rotation

rotation angle. Value should be between -360 and 360.

limit_min

minimum value on the axis. Date objects are also accepted and will be converted automatically.

limit_max

maximum value on the axis. Date objects are also accepted and will be converted automatically.

position

the value at which this axis crosses the perpendicular axis.

major_unit

numeric, interval between major ticks and gridlines.

minor_unit

numeric, interval between minor ticks and gridlines.

major_time_unit

time unit for major ticks on date axes, one of "days", "months", "years".

minor_time_unit

time unit for minor ticks on date axes, one of "days", "months", "years".

Value

An ms_chart object.

Illustrations

num_fmt

All ⁠%⁠ need to be doubled, ⁠0%%⁠ means "a number and percent symbol".

General: default value
0: display the number with no decimal
0.00: display the number with two decimals
⁠0%%⁠: display as percentages
⁠0.00%%⁠: display as percentages with two decimal places
⁠#,##0⁠
⁠#,##0.00⁠
0.00E+00
⁠# ?/?⁠
⁠# ??/??⁠
mm-dd-yy
d-mmm-yy
d-mmm
mmm-yy
⁠h:mm AM/PM⁠
⁠h:mm:ss AM/PM⁠
h:mm
h:mm:ss
⁠m/d/yy h:mm⁠
⁠#,##0 ;(#,##0)⁠
⁠#,##0 ;[Red](#,##0)⁠
⁠#,##0.00;(#,##0.00)⁠
⁠#,##0.00;[Red](#,##0.00)⁠
mm:ss
⁠[h]:mm:ss⁠
mmss.0
⁠##0.0E+0⁠
@

Examples

library(officer)
library(mschart)

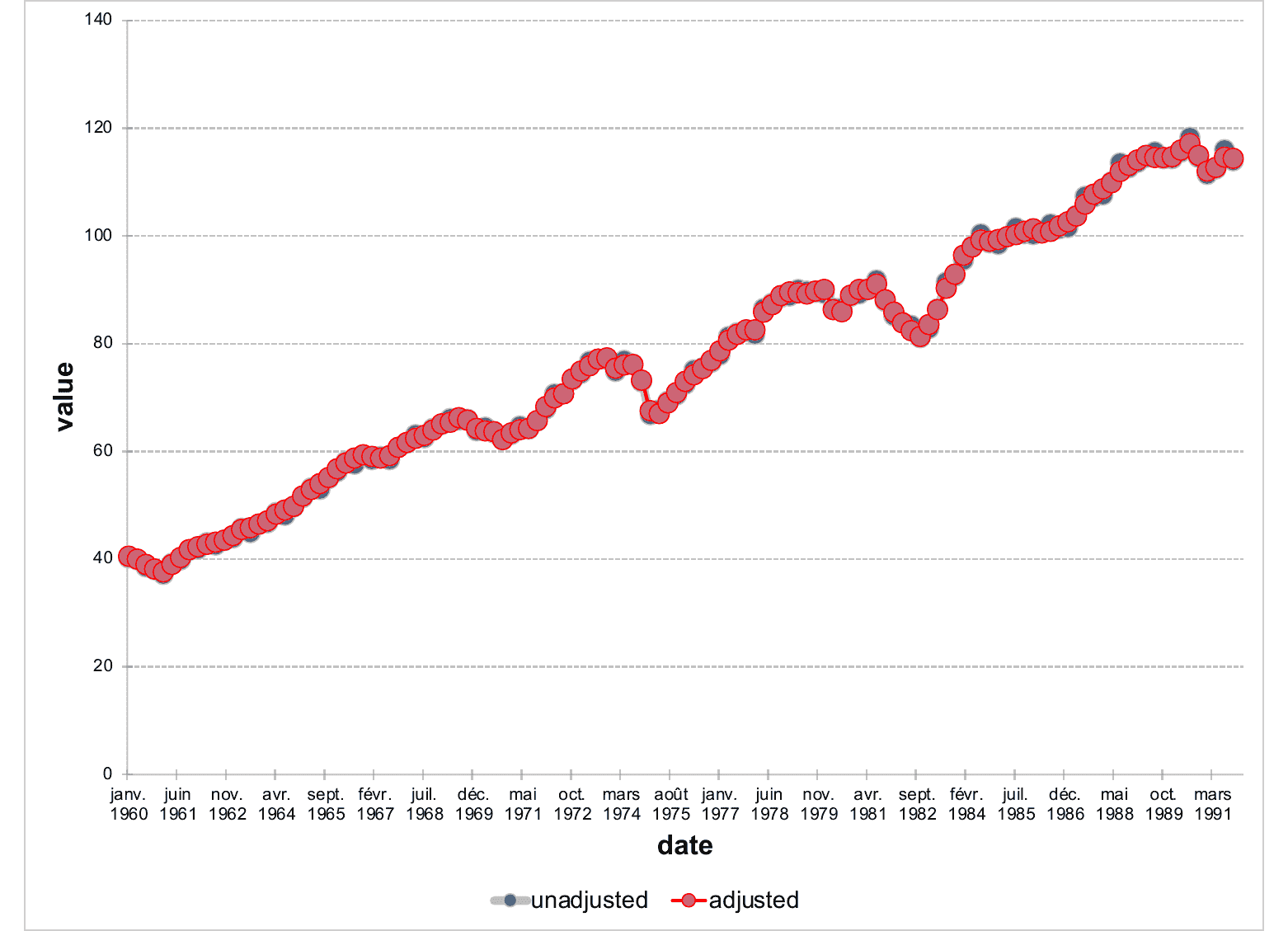

chart_01 <- ms_linechart(
  data = us_indus_prod,
  x = "date", y = "value",
  group = "type"
)
chart_01 <- chart_settings(chart_01, style = "marker")
chart_01 <- chart_ax_x(
  x = chart_01, num_fmt = "[$-fr-FR]mmm yyyy",
  limit_min = min(us_indus_prod$date),
  limit_max = as.Date("1992-01-01")
)
chart_01

Modify fill colour

Description

Specify mappings from levels in the data to displayed fill colours.

Usage

chart_data_fill(x, values, update_stroke = TRUE)

Arguments

x

an ms_chart object.

values

⁠character(num of series|1)⁠: a set of colour values to map data values to. It is a named vector, the values will be matched based on the names. If it contains only one colour, this colour will be associated to all existing series.

update_stroke

if TRUE (the default), the series stroke colour is also updated to values, so that the filled shape and its border match. Series whose stroke was set to "transparent" (for example by the ms_areachart() and ms_piechart() constructors) are left untouched to preserve that deliberate "no border" default. Set to FALSE to keep the current stroke colours untouched and manage them independently via chart_data_stroke().

Value

An ms_chart object.

Examples

my_scatter <- ms_scatterchart(data = iris, x = "Sepal.Length",
  y = "Sepal.Width",  group = "Species")
my_scatter <- chart_data_fill(my_scatter,
  values = c(virginica = "#6FA2FF", versicolor = "#FF6161", setosa = "#81FF5B") )

Modify data labels settings

Description

Data labels show details about data series. S3 generic; the default method is documented below. ChartEx charts honor a leaner set of options.

Usage

chart_data_labels(x, ...)

## Default S3 method:
chart_data_labels(
  x,
  num_fmt = "General",
  position = "ctr",
  show_legend_key = FALSE,
  show_val = FALSE,
  show_cat_name = FALSE,
  show_serie_name = FALSE,
  show_percent = FALSE,
  separator = ", ",
  ...
)

Arguments

x

an ms_chart object.

...

arguments passed to S3 methods.

num_fmt

character(1): number formatting specifies number format properties which indicate how to format and render the numeric values. It can be "General", "0.00", "#,##0", "#,##0.00", "mm-dd-yy", "m/d/yy h:mm", etc.

position

character(1): it specifies the position of the data label. It should be one of 'b', 'ctr', 'inBase', 'inEnd', 'l', 'outEnd', 'r', 't'. When grouping is 'clustered', it should be one of 'ctr','inBase','inEnd','outEnd'. When grouping is 'stacked', it should be one of 'ctr','inBase','inEnd'. When grouping is 'standard', it should be one of 'b','ctr','l','r','t'.

show_legend_key

show legend key if TRUE.

show_val

show values if TRUE.

show_cat_name

show categories if TRUE.

show_serie_name

show names of series if TRUE.

show_percent

show percentages if TRUE.

separator

separator between the label components (value, category name, series name, etc.) when multiple components are displayed. Default is ", ".

Value

An ms_chart object.

Examples

my_bc <- ms_barchart(
  data = browser_data, x = "browser",
  y = "value", group = "serie"
)
my_bc <- chart_data_labels(my_bc, show_val = TRUE, position = "outEnd")

Modify line style

Description

Specify mappings from levels in the data to displayed line style.

Usage

chart_data_line_style(x, values)

Arguments

x

an ms_chart object.

values

⁠character(num of series)⁠: a set of line style values to map data values to. It is a named vector, the values will be matched based on the names. Possible values are: 'none', 'solid', 'dashed', 'dotted'. If it contains only one line style, this style will be associated to all existing series.

Value

An ms_chart object.

Examples

my_scatter <- ms_scatterchart(data = iris, x = "Sepal.Length",
  y = "Sepal.Width",  group = "Species")
my_scatter <- chart_data_fill(my_scatter,
  values = c(virginica = "#6FA2FF", versicolor = "#FF6161", setosa = "#81FF5B") )
my_scatter <- chart_data_stroke(my_scatter,
  values = c(virginica = "black", versicolor = "black", setosa = "black") )
my_scatter <- chart_data_symbol(my_scatter,
  values = c(virginica = "circle", versicolor = "diamond", setosa = "circle") )
my_scatter <- chart_data_line_style(my_scatter,
  values = c(virginica = "solid", versicolor = "dotted", setosa = "dashed") )

Modify line width

Description

Specify mappings from levels in the data to the displayed line width.

Usage

chart_data_line_width(x, values)

Arguments

x

an ms_chart object.

values

⁠double(num of series)⁠: a set of size values to map data values to. It is a named vector, the values will be matched based on the names. If it contains only one size, this size will be associated to all existing series.

Value

An ms_chart object.

Examples

my_scatter <- ms_scatterchart(data = iris, x = "Sepal.Length",
  y = "Sepal.Width",  group = "Species")
my_scatter <- chart_settings(my_scatter, style = "lineMarker")
my_scatter <- chart_data_fill(my_scatter,
  values = c(virginica = "#6FA2FF", versicolor = "#FF6161", setosa = "#81FF5B") )
my_scatter <- chart_data_stroke(my_scatter,
  values = c(virginica = "black", versicolor = "black", setosa = "black") )
my_scatter <- chart_data_symbol(my_scatter,
  values = c(virginica = "circle", versicolor = "diamond", setosa = "circle") )
my_scatter <- chart_data_size(my_scatter,
  values = c(virginica = 20, versicolor = 16, setosa = 20) )
my_scatter <- chart_data_line_width(my_scatter,
  values = c(virginica = 2, versicolor = 3, setosa = 6) )

Modify symbol size

Description

Specify mappings from levels in the data to displayed size of symbols.

Usage

chart_data_size(x, values)

Arguments

x

an ms_chart object.

values

Value

An ms_chart object.

Examples

my_scatter <- ms_scatterchart(data = iris, x = "Sepal.Length",
  y = "Sepal.Width",  group = "Species")
my_scatter <- chart_data_fill(my_scatter,
  values = c(virginica = "#6FA2FF", versicolor = "#FF6161", setosa = "#81FF5B") )
my_scatter <- chart_data_stroke(my_scatter,
  values = c(virginica = "black", versicolor = "black", setosa = "black") )
my_scatter <- chart_data_symbol(my_scatter,
  values = c(virginica = "circle", versicolor = "diamond", setosa = "circle") )
my_scatter <- chart_data_size(my_scatter,
  values = c(virginica = 20, versicolor = 16, setosa = 20) )

Smooth series

Description

Specify whether lines should be smoothed, per series. This feature only applies to ms_linechart().

Usage

chart_data_smooth(x, values)

Arguments

x

an ms_chart object.

values

⁠integer(num of series)⁠: a set of smooth values to map data values to. It is a named vector, the values will be matched based on the names. Use 0 to disable smoothing and 1 to enable it. If it contains only one integer it will be associated to all existing series.

Value

An ms_chart object.

Examples

linec <- ms_linechart(data = iris, x = "Sepal.Length",
  y = "Sepal.Width", group = "Species")
linec <- chart_data_smooth(linec,
  values = c(virginica = 0, versicolor = 0, setosa = 0) )

Modify marker stroke colour

Description

Specify mappings from levels in the data to displayed marker stroke colours.

Usage

chart_data_stroke(x, values, ...)

Arguments

x

an ms_chart object.

values

⁠character(num of series)⁠: a set of colour values to map data values to. It is a named vector, the values will be matched based on the names. If it contains only one colour, this colour will be associated to all existing series.

...

arguments passed to S3 methods.

Value

An ms_chart object.

Examples

my_scatter <- ms_scatterchart(data = iris, x = "Sepal.Length",
  y = "Sepal.Width",  group = "Species")
my_scatter <- chart_data_fill(my_scatter,
  values = c(virginica = "#6FA2FF", versicolor = "#FF6161", setosa = "#81FF5B") )
my_scatter <- chart_data_stroke(my_scatter,
  values = c(virginica = "black", versicolor = "black", setosa = "black") )

Modify symbol

Description

Specify mappings from levels in the data to displayed symbols.

Usage

chart_data_symbol(x, values)

Arguments

x

an ms_chart object.

values

⁠character(num of series)⁠: a set of symbol values to map data values to. It is a named vector, the values will be matched based on the names. Possible values are: 'circle', 'dash', 'diamond', 'dot', 'none', 'plus', 'square', 'star', 'triangle', 'x', 'auto'. If it contains only one symbol, this symbol will be associated to all existing series.

Value

An ms_chart object.

Examples

my_scatter <- ms_scatterchart(data = iris, x = "Sepal.Length",
  y = "Sepal.Width",  group = "Species")
my_scatter <- chart_data_fill(my_scatter,
  values = c(virginica = "#6FA2FF", versicolor = "#FF6161", setosa = "#81FF5B") )
my_scatter <- chart_data_stroke(my_scatter,
  values = c(virginica = "black", versicolor = "black", setosa = "black") )
my_scatter <- chart_data_symbol(my_scatter,
  values = c(virginica = "circle", versicolor = "diamond", setosa = "circle") )

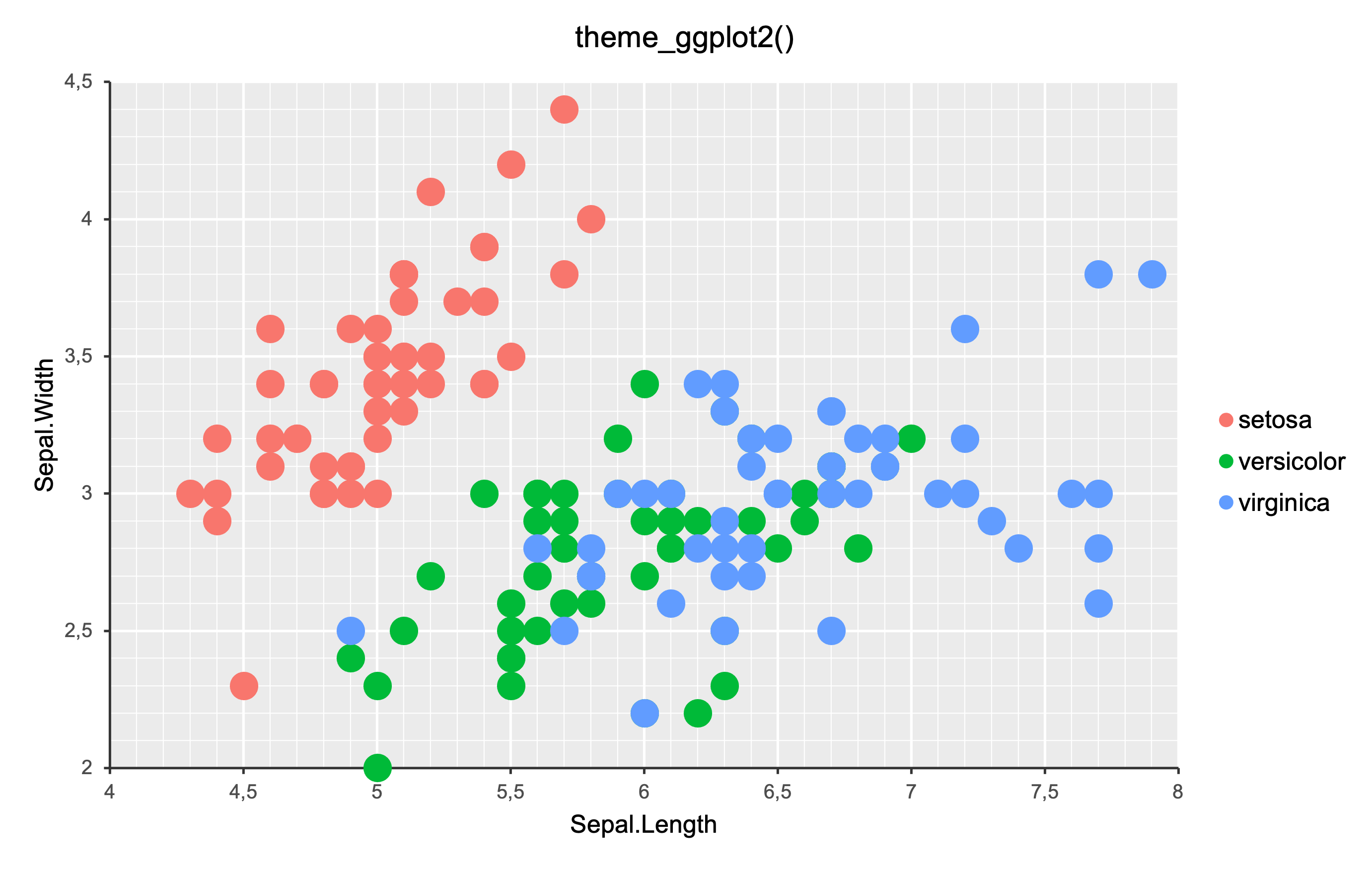

Apply ggplot2 color scale

Description

The default hue color scale from ggplot2.

Usage

chart_fill_ggplot2(x, stroke = TRUE)

Arguments

x

a mschart object

stroke

a boolean. Apply the color scale to stroke? Defaults to TRUE.

Value

a mschart object

chart_fill_ggplot2()

Examples

p <- ms_scatterchart(
  data = iris, x = "Sepal.Length",
  y = "Sepal.Width", group = "Species"
)

p <- theme_ggplot2(p)
p <- chart_fill_ggplot2(p)

Modify axis and plot labels

Description

Add labels to a chart, labels can be specified for x axis, y axis and plot.

Usage

chart_labels(x, title = NULL, xlab = NULL, ylab = NULL)

Arguments

x

an ms_chart object.

title

title of the chart (displayed above the plot area). Use NULL to remove it.

xlab

label for the x axis. Use NULL to remove it.

ylab

label for the y axis. Use NULL to remove it.

Value

An ms_chart object.

Examples

mylc <- ms_linechart(
  data = browser_ts, x = "date", y = "freq",
  group = "browser"
)
mylc <- chart_labels(mylc,
  title = "my title", xlab = "my x label",
  ylab = "my y label"
)

Modify labels font settings

Description

Specify mappings from levels in the data to displayed text font settings.

Usage

chart_labels_text(x, values)

Arguments

x

an ms_chart object.

values

a named list of officer::fp_text() objects to map data labels to. It is a named list, the values will be matched based on the names. If it contains only one officer::fp_text() object, it will be associated to all existing series.

Value

An ms_chart object.

Examples

library(officer)

fp_text_settings <- list(
  serie1 = fp_text(font.size = 7, color = "red"),
  serie2 = fp_text(font.size = 0, color = "purple"),
  serie3 = fp_text(font.size = 19, color = "wheat")
)

barchart <- ms_barchart(
  data = browser_data,
  x = "browser", y = "value", group = "serie")
barchart <- chart_data_labels(barchart, show_val = TRUE)
barchart <- chart_labels_text( barchart,
  values = fp_text_settings )

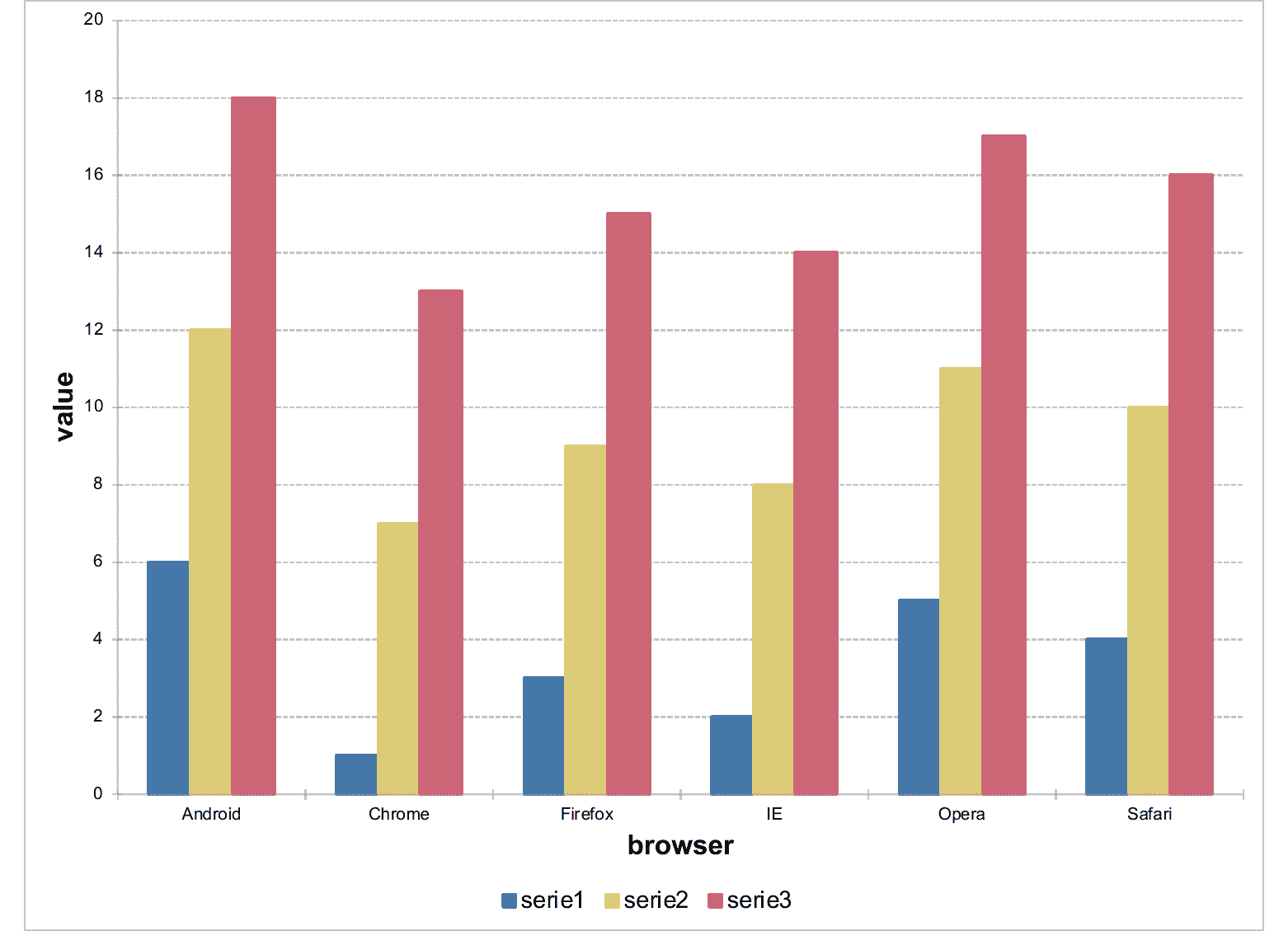

Set chart options

Description

Set chart properties.

Usage

chart_settings(x, ...)

## S3 method for class 'ms_chart_ex'
chart_settings(x, ...)

## S3 method for class 'ms_barchart'
chart_settings(x, vary_colors, gap_width, dir, grouping, overlap, table, ...)

## S3 method for class 'ms_linechart'
chart_settings(x, vary_colors, style, grouping, table, ...)

## S3 method for class 'ms_areachart'
chart_settings(x, vary_colors, grouping, table, ...)

## S3 method for class 'ms_scatterchart'
chart_settings(x, vary_colors, style, ...)

## S3 method for class 'ms_stockchart'
chart_settings(
  x,
  vary_colors,
  table,
  hi_low_lines,
  up_bars_fill,
  up_bars_border,
  down_bars_fill,
  down_bars_border,
  ...
)

## S3 method for class 'ms_radarchart'
chart_settings(x, vary_colors, style, ...)

## S3 method for class 'ms_bubblechart'
chart_settings(x, vary_colors, bubble3D = FALSE, ...)

## S3 method for class 'ms_piechart'
chart_settings(x, vary_colors, hole_size, ...)

## S3 method for class 'ms_paretochart'
chart_settings(x, line, ...)

## S3 method for class 'ms_boxplotchart'
chart_settings(x, line, ...)

Arguments

x

an ms_chart object.

...

unused parameter

vary_colors

if TRUE, each data point in a single series is displayed in a different color.

gap_width

A gap appears between the bar or clustered bars for each category on a bar chart. The default width for this gap is 150 percent of the bar width. It can be set between 0 and 500 percent of the bar width.

dir

the direction of the bars in the chart, value must be one of "horizontal" or "vertical".

grouping

grouping of the series. For a barchart one of "percentStacked", "clustered", "standard" or "stacked". For a linechart or an areachart one of "percentStacked", "standard" or "stacked" ("clustered" is bar-only).

overlap

In a bar chart having two or more series, the bars for each category are clustered together. By default, these bars are directly adjacent to each other. The bars can be made to overlap each other or have a space between them using the overlap property. Its values range between -100 and 100, representing the percentage of the bar width by which to overlap adjacent bars. A setting of -100 creates a gap of a full bar width and a setting of 100 causes all the bars in a category to be superimposed. The default value is 0.

table

if TRUE set a table below the barchart.

style

Style for the linechart or scatterchart type of markers. One of 'none', 'line', 'lineMarker', 'marker', 'smooth', 'smoothMarker'.

hi_low_lines

an officer::fp_border() for the high-low lines. Set to FALSE to hide them.

up_bars_fill

fill colour for up bars (OHLC only, close > open).

up_bars_border

an officer::fp_border() for up bar borders.

down_bars_fill

fill colour for down bars (OHLC only, close < open).

down_bars_border

an officer::fp_border() for down bar borders.

bubble3D

logical, use 3D effect for bubbles.

hole_size

size of the hole in a doughnut chart, between 0 and 90 (percent of the radius). Default 0 produces a pie chart; values above 0 produce a doughnut chart.

line

stroke for the cumulative percentage line. One of: NULL (default, matches Excel-native: theme accent2 colour scaled to chart palette), FALSE to suppress the line override (line then depends on the chartstyle sidecar and may render as invisible), or an officer::fp_border().

Value

An ms_chart object.

Methods (by class)

chart_settings(ms_chart_ex): fallback for chartEx types that expose no settings (funnel, histogram, sunburst, treemap, waterfall). Replaces the default ⁠no applicable method⁠ error with a discoverable message.
chart_settings(ms_barchart): barchart settings
chart_settings(ms_linechart): linechart settings
chart_settings(ms_areachart): areachart settings
chart_settings(ms_scatterchart): scatterchart settings
chart_settings(ms_stockchart): stockchart settings
chart_settings(ms_radarchart): radarchart settings
chart_settings(ms_bubblechart): bubblechart settings
chart_settings(ms_piechart): piechart settings
chart_settings(ms_paretochart): paretochart settings
chart_settings(ms_boxplotchart): boxplotchart settings

Illustrations

Examples

library(mschart)
library(officer)

chart_01 <- ms_barchart(
  data = browser_data, x = "browser",
  y = "value", group = "serie"
)
chart_01 <- chart_theme(chart_01,
  grid_major_line_x = fp_border(width = 0),
  grid_minor_line_x = fp_border(width = 0)
)

chart_02 <- chart_settings(
  x = chart_01,
  grouping = "stacked", overlap = 100
)

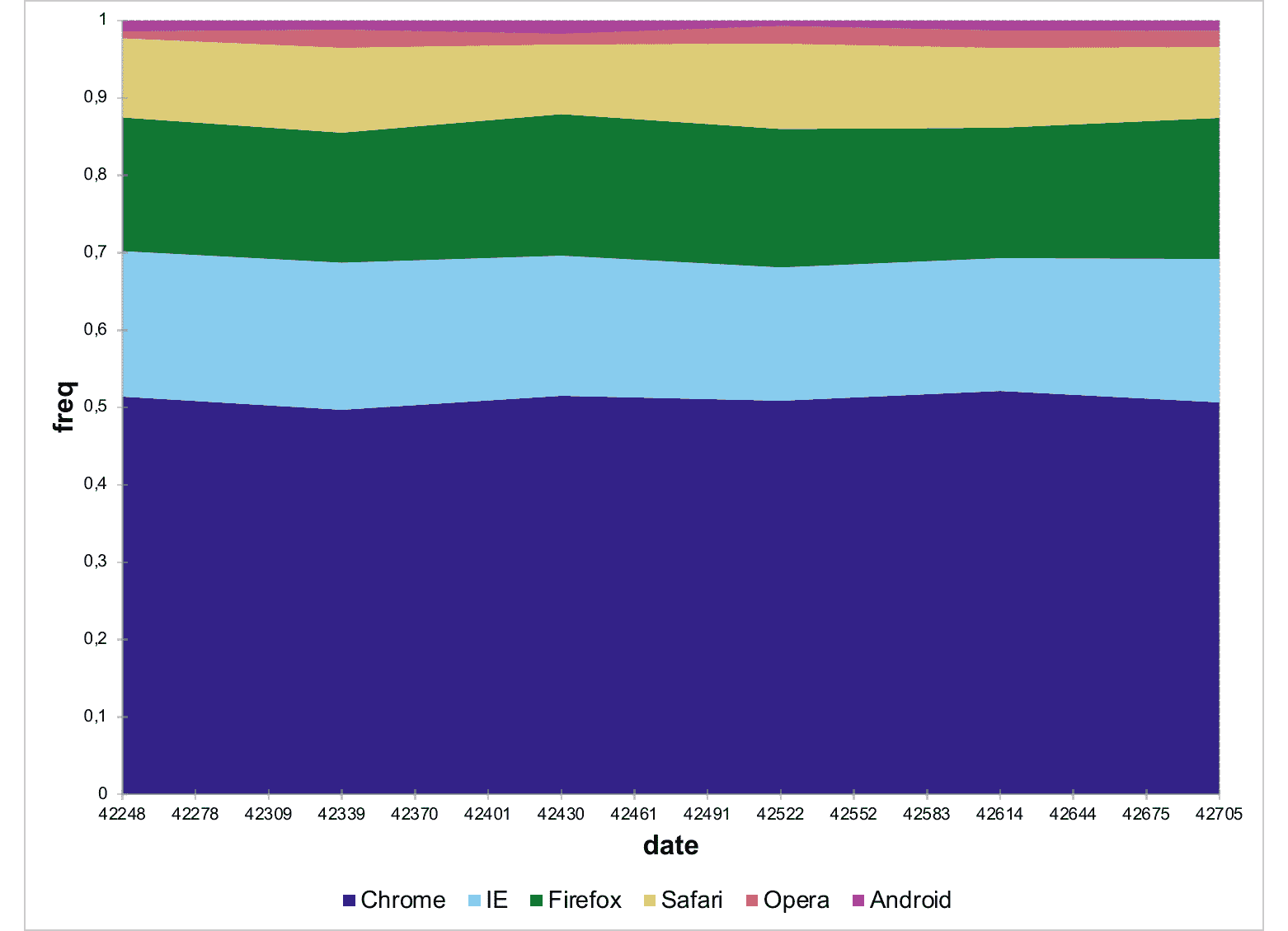

chart_03 <- ms_areachart(
  data = browser_ts, x = "date",
  y = "freq", group = "browser"
)
chart_03 <- chart_settings(chart_03,
  grouping = "percentStacked"
)

Data table settings

Description

Define visual settings for the data table displayed below the chart. Requires chart_settings(x, table = TRUE) to be called first.

Usage

chart_table(x, horizontal, vertical, outline, show_keys)

Arguments

x

an ms_chart object.

horizontal

write horizontal lines in the table

vertical

write vertical lines in the table

outline

write an outline in the table

show_keys

show keys in the table

Value

An ms_chart object.

Examples

data <- data.frame(
  supp = factor(rep(c("OJ", "VC"), each = 3),
                levels = c("OJ", "VC")),
  dose = factor(rep(c("low", "medium", "high"), 2),
                levels = c("low", "medium", "high")),
  length = c(13.23, 22.7, 24.06, 7.98, 16.77, 26.14),
  label = LETTERS[1:6],
  stringsAsFactors = FALSE
)

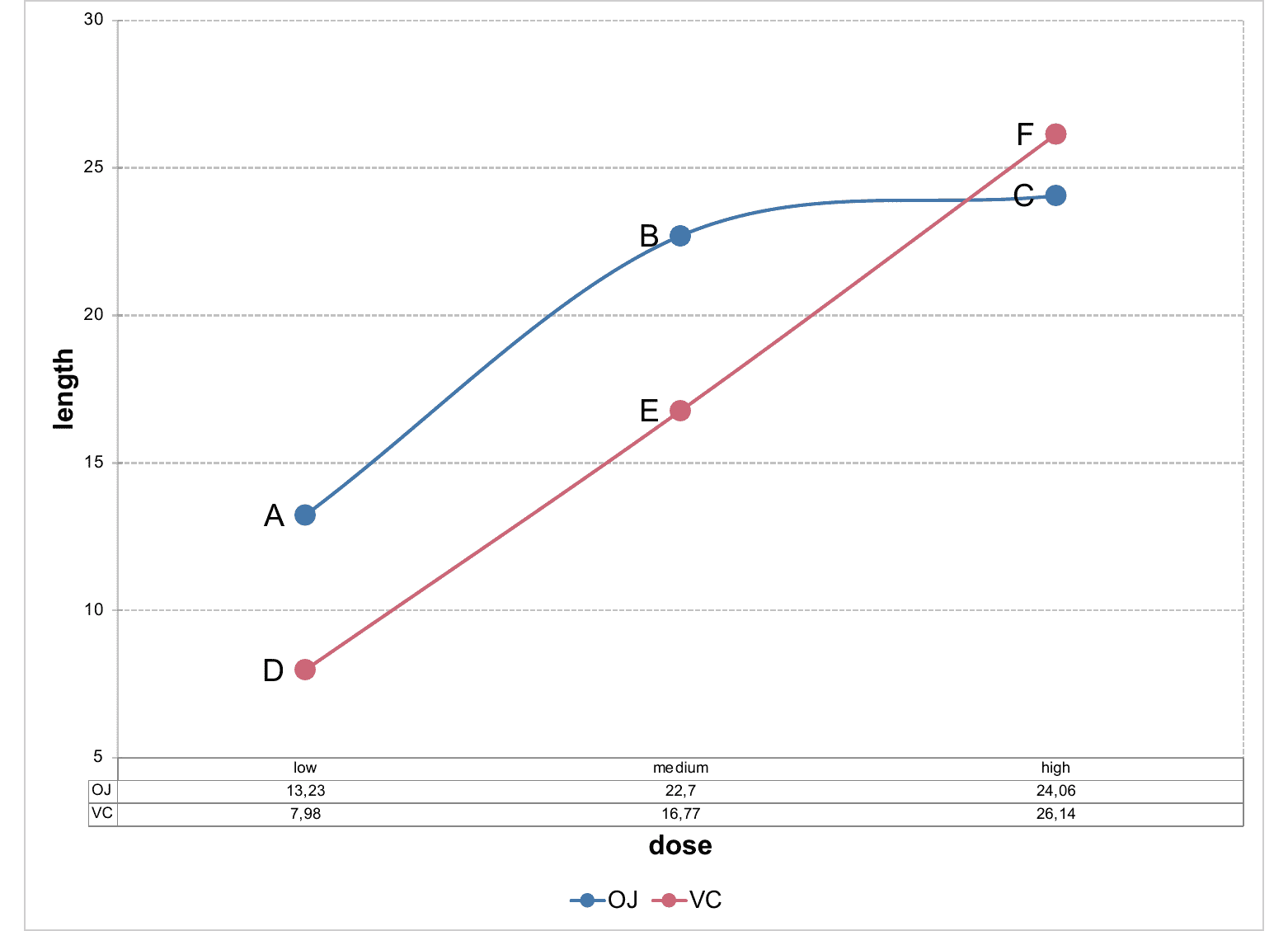

# example chart 03 -------
chart <- ms_linechart(
  data = data, x = "dose", y = "length",
  group = "supp", labels = "label"
)
chart <- chart_settings(
  x = chart, table = TRUE
)

chart <- chart_table(chart,
  horizontal = TRUE, vertical = FALSE,
  outline = TRUE, show_keys = FALSE
)

Areachart object

Description

Creation of an areachart object that can be inserted in a 'Microsoft' document.

Area charts can be used to plot change over time and draw attention to the total value across a trend. By showing the sum of the plotted values, an area chart also shows the relationship of parts to a whole.

Usage

ms_areachart(data, x, y, group = NULL, labels = NULL, asis = FALSE)

Arguments

data

a data.frame

x

column name for x values.

y

column name for y values.

group

grouping column name used to split data into series. Optional.

labels

column names of columns to be used as custom data labels displayed next to data points (not axis labels). Optional. If more than one name is provided, only the first one will be used as a label, but all labels (transposed if a group is used) will be available in the Excel file associated with the chart.

asis

logical parameter defaulting to FALSE. When FALSE, the data is reshaped internally so that each series becomes a separate column. When TRUE, the data is used as-is and must already have one column for categories and one column per series, and y accepts a vector of series column names. asis describes the input shape read by the constructor. Not to be confused with the write_data argument of sheet_add_drawing.ms_chart(), which controls whether mschart writes the chart's data into an Excel sheet at embed time. The two are independent.

Value

An ms_chart object.

Examples

library(officer)
mytheme <- mschart_theme(
  axis_title_x = fp_text(color = "red", font.size = 24, bold = TRUE),
  axis_title_y = fp_text(color = "green", font.size = 12, italic = TRUE),
  grid_major_line_y = fp_border(width = 1, color = "orange"),
  axis_ticks_y = fp_border(width = 1, color = "orange")
)

# example ac_01 -------
ac_01 <- ms_areachart(
  data = browser_ts, x = "date",
  y = "freq", group = "browser"
)
ac_01 <- chart_ax_y(ac_01, cross_between = "between", num_fmt = "General")
ac_01 <- chart_ax_x(ac_01, cross_between = "midCat", num_fmt = "m/d/yy")
ac_01 <- set_theme(ac_01, mytheme)


# example ac_02 -------
ac_02 <- chart_settings(ac_01, grouping = "percentStacked")

# example ac_03 -------
ac_03 <- chart_settings(ac_01, grouping = "percentStacked", table = TRUE)
ac_03 <- chart_table(
  ac_03,
  horizontal = FALSE, vertical = FALSE,
  outline = FALSE, show_keys = TRUE)

Barchart object

Description

Creation of a barchart object that can be inserted in a 'Microsoft' document.

Bar charts illustrate comparisons among individual items. In a bar chart, the categories are typically organized along the vertical axis, and the values along the horizontal axis.

Consider using a bar chart when:

The axis labels are long.
The values that are shown are durations.

Usage

ms_barchart(data, x, y, group = NULL, labels = NULL, asis = FALSE)

Arguments

data

a data.frame

x

column name for x values.

y

column name for y values.

group

grouping column name used to split data into series. Optional.

labels

asis

Value

An ms_chart object.

Illustrations

Examples

library(officer)
library(mschart)
library(officer)

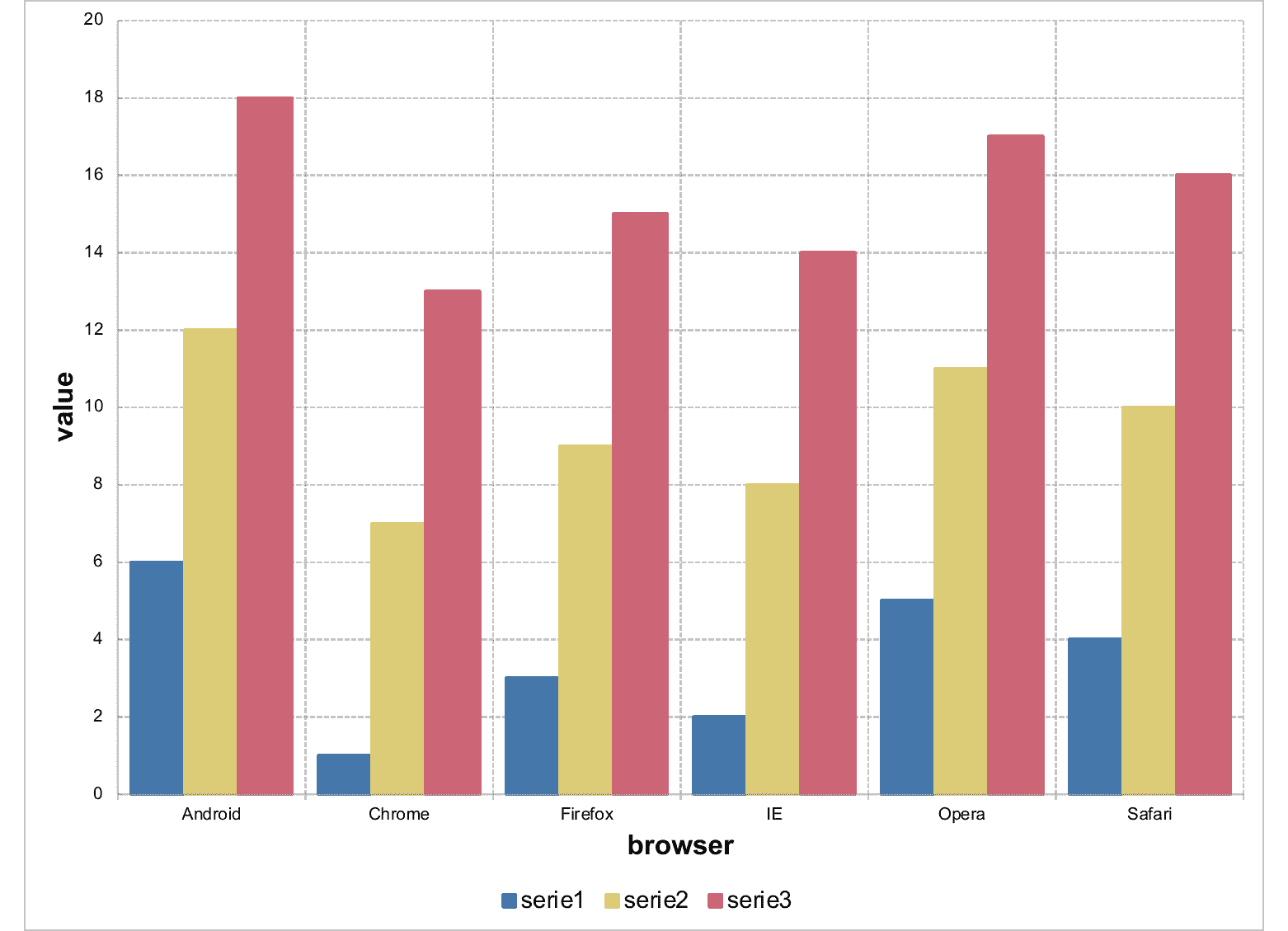

# example chart 01 -------

chart_01 <- ms_barchart(
  data = browser_data, x = "browser",
  y = "value", group = "serie"
)
chart_01 <- chart_settings(
  x = chart_01, dir = "vertical",
  grouping = "clustered", gap_width = 50
)
chart_01 <- chart_ax_x(
  x = chart_01, cross_between = "between",
  major_tick_mark = "out"
)
chart_01 <- chart_ax_y(
  x = chart_01, cross_between = "midCat",
  major_tick_mark = "in"
)
# print(chart_01, preview = TRUE)

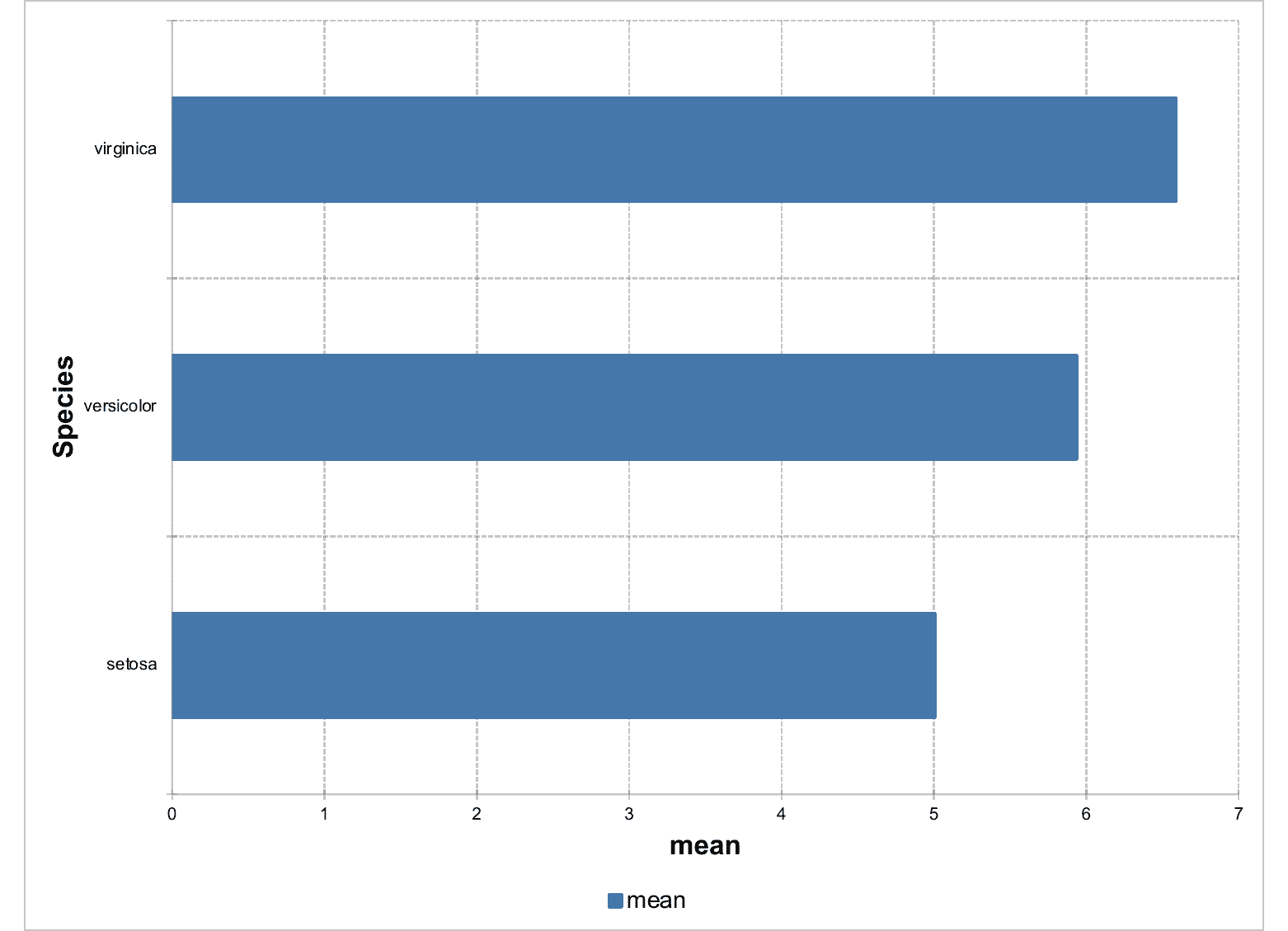

# example chart 02 -------
dat <- data.frame(
  Species = factor(c("setosa", "versicolor", "virginica"),
    levels = c("setosa", "versicolor", "virginica")
  ),
  mean = c(5.006, 5.936, 6.588)
)
chart_02 <- ms_barchart(data = dat, x = "Species", y = "mean")
chart_02 <- chart_settings(x = chart_02, dir = "horizontal")
chart_02 <- chart_theme(x = chart_02, title_x_rot = 270, title_y_rot = 0)
# print(chart_02, preview = TRUE)

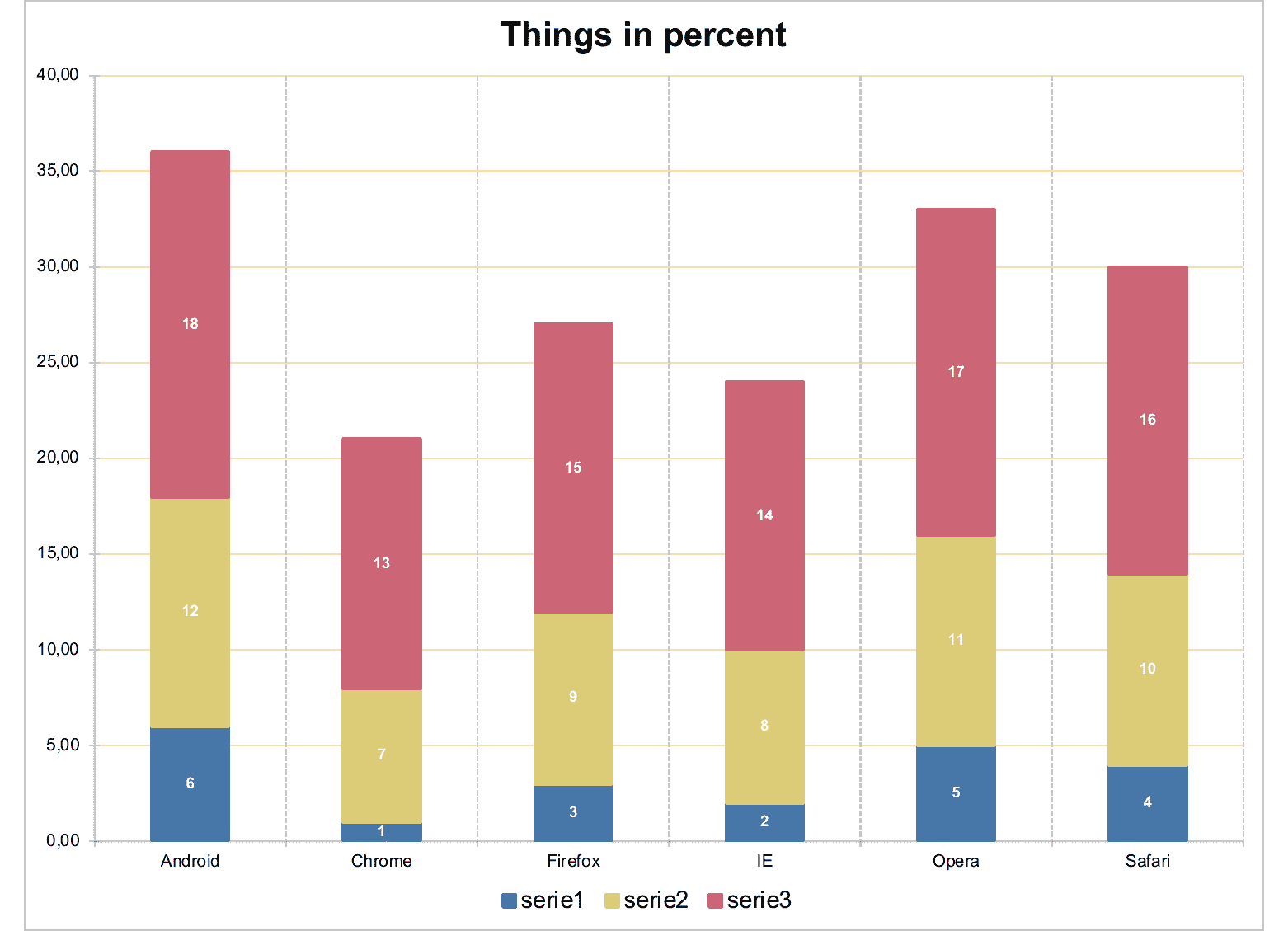

# example chart 03 -------

mytheme <- mschart_theme(
  axis_title_x = fp_text(color = "gray", font.size = 20, bold = TRUE),
  axis_title_y = fp_text(color = "gray", font.size = 20, italic = TRUE),
  grid_major_line_y = fp_border(width = 1, color = "wheat"),
  axis_ticks_y = fp_border(width = 1, color = "gray")
)

chart_03 <- ms_barchart(
  data = browser_data, x = "browser",
  y = "value", group = "serie"
)
chart_03 <- chart_settings(chart_03,
  grouping = "stacked",
  gap_width = 150, overlap = 100
)
chart_03 <- chart_ax_x(chart_03,
  cross_between = "between",
  major_tick_mark = "out", minor_tick_mark = "none"
)
chart_03 <- chart_ax_y(chart_03,
  num_fmt = "0.00",
  minor_tick_mark = "none"
)
chart_03 <- set_theme(chart_03, mytheme)
chart_03 <- chart_labels(x = chart_03, title = "Things in percent")
chart_03 <- chart_data_labels(chart_03,
  position = "ctr",
  show_val = TRUE
)
chart_03 <- chart_labels_text(chart_03,
  fp_text(color = "white", bold = TRUE, font.size = 9)
)
chart_03 <- chart_data_fill(chart_03,
  values = c(
    serie1 = "#4477AA",
    serie2 = "#CC6677",
    serie3 = "#DDCC77"
  )
)
chart_03 <- chart_data_stroke(chart_03,
  values = c(
    serie1 = "#223B55",
    serie2 = "#66333C",
    serie3 = "#6F663C"
  )
)
chart_03 <- chart_data_line_width(chart_03,
  values = c(serie1 = 2, serie2 = 2, serie3 = 2)
)
# print(chart_03, preview = TRUE)

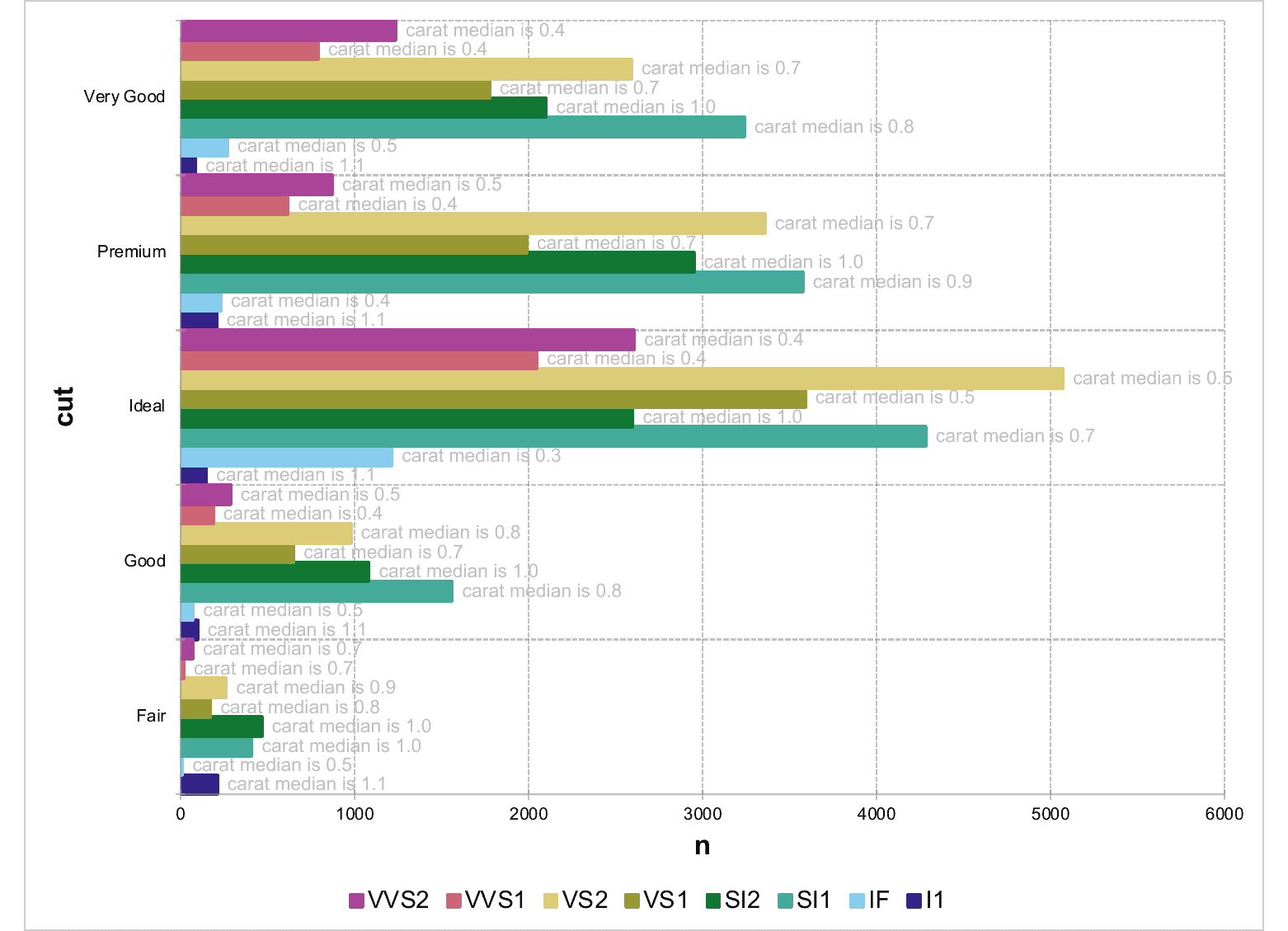

# example chart 04 -------

dat_groups <-
  data.frame(
    cut = c(
      "Fair", "Fair", "Fair", "Fair", "Fair",
      "Fair", "Fair", "Fair", "Good", "Good", "Good", "Good", "Good",
      "Good", "Good", "Good", "Very Good", "Very Good", "Very Good",
      "Very Good", "Very Good", "Very Good", "Very Good", "Very Good",
      "Premium", "Premium", "Premium", "Premium", "Premium",
      "Premium", "Premium", "Premium", "Ideal", "Ideal", "Ideal", "Ideal",
      "Ideal", "Ideal", "Ideal", "Ideal"
    ),
    clarity = c(
      "I1", "SI2", "SI1", "VS2", "VS1", "VVS2",
      "VVS1", "IF", "I1", "SI2", "SI1", "VS2", "VS1", "VVS2", "VVS1",
      "IF", "I1", "SI2", "SI1", "VS2", "VS1", "VVS2", "VVS1", "IF",
      "I1", "SI2", "SI1", "VS2", "VS1", "VVS2", "VVS1", "IF", "I1",
      "SI2", "SI1", "VS2", "VS1", "VVS2", "VVS1", "IF"
    ),
    carat = c(
      1.065, 1.01, 0.98, 0.9, 0.77, 0.7, 0.7,
      0.47, 1.07, 1, 0.79, 0.82, 0.7, 0.505, 0.4, 0.46, 1.145, 1.01,
      0.77, 0.71, 0.7, 0.4, 0.36, 0.495, 1.11, 1.04, 0.9, 0.72, 0.7,
      0.455, 0.4, 0.36, 1.13, 1, 0.71, 0.53, 0.53, 0.44, 0.4, 0.34
    ),
    n = c(
      210L, 466L, 408L, 261L, 170L, 69L, 17L, 9L,
      96L, 1081L, 1560L, 978L, 648L, 286L, 186L, 71L, 84L, 2100L,
      3240L, 2591L, 1775L, 1235L, 789L, 268L, 205L, 2949L, 3575L, 3357L,
      1989L, 870L, 616L, 230L, 146L, 2598L, 4282L, 5071L, 3589L,
      2606L, 2047L, 1212L
    )
  )

dat_groups$label <- sprintf(
  "carat median is %.01f",
  dat_groups$carat
)
dat_groups

text_prop <- fp_text(font.size = 11, color = "gray")

chart_04 <- ms_barchart(
  data = dat_groups, x = "cut",
  labels = "label", y = "n", group = "clarity"
)
chart_04 <- chart_settings(chart_04,
  grouping = "clustered", dir = "horizontal",
  gap_width = 0
)
chart_04 <- chart_data_labels(chart_04, position = "outEnd")
chart_04 <- chart_labels_text(chart_04, text_prop)
chart_04 <- chart_theme(chart_04, title_x_rot = 270, title_y_rot = 0)
# print(chart_04, preview = TRUE)

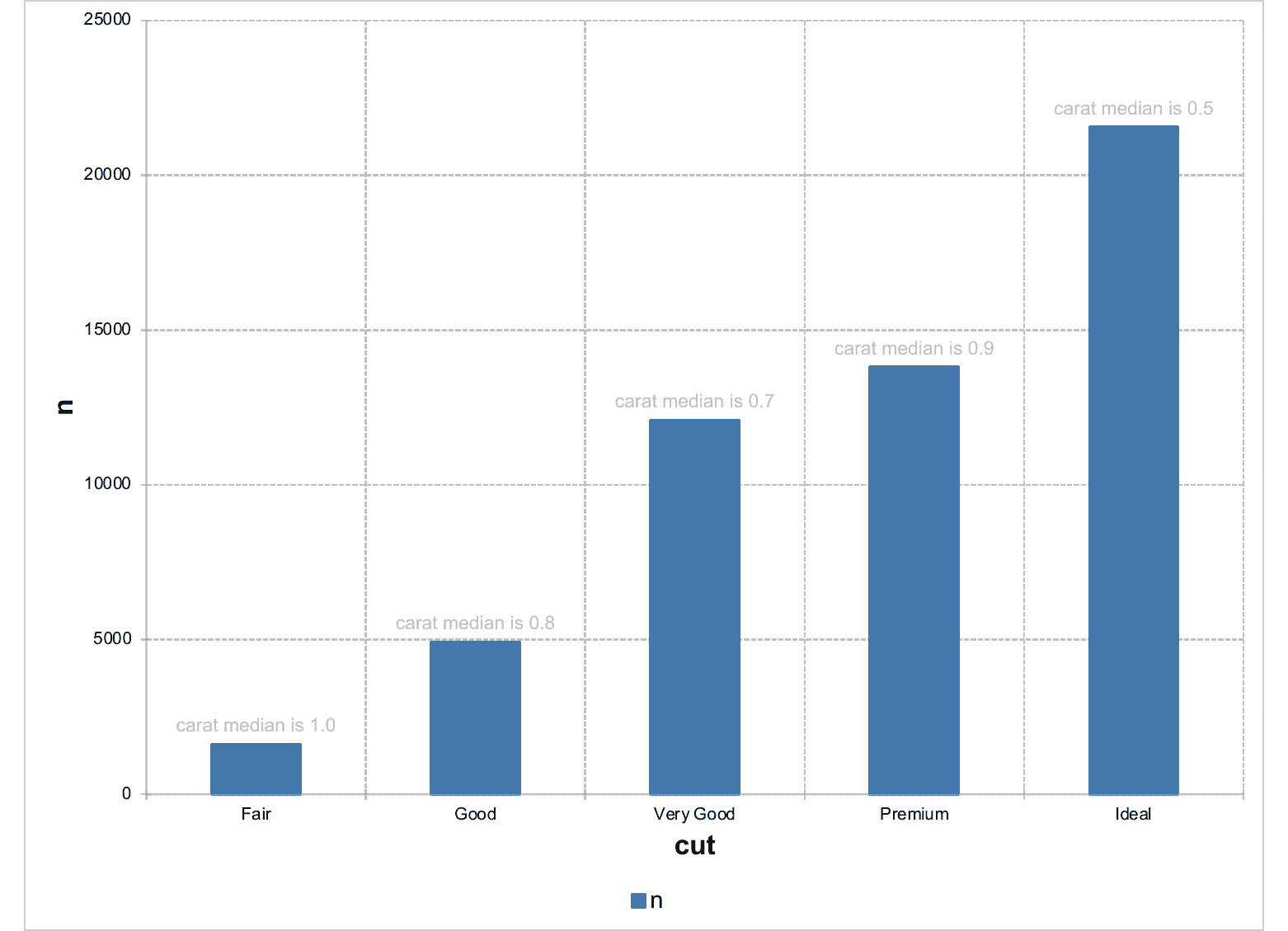

# example chart 05 -------

dat_no_group <- data.frame(
  stringsAsFactors = FALSE,
  cut = c("Fair", "Good", "Very Good", "Premium", "Ideal"),
  carat = c(1, 0.82, 0.71, 0.86, 0.54),
  n = c(1610L, 4906L, 12082L, 13791L, 21551L),
  label = c(
    "carat median is 1.0",
    "carat median is 0.8", "carat median is 0.7",
    "carat median is 0.9", "carat median is 0.5"
  )
)
chart_05 <- ms_barchart(
  data = dat_no_group,
  x = "cut", labels = "label", y = "n"
)
chart_05 <- chart_settings(chart_05,
  grouping = "clustered"
)
chart_05 <- chart_data_labels(chart_05, position = "outEnd")
chart_05 <- chart_labels_text(chart_05, text_prop)
# print(chart_05, preview = TRUE)

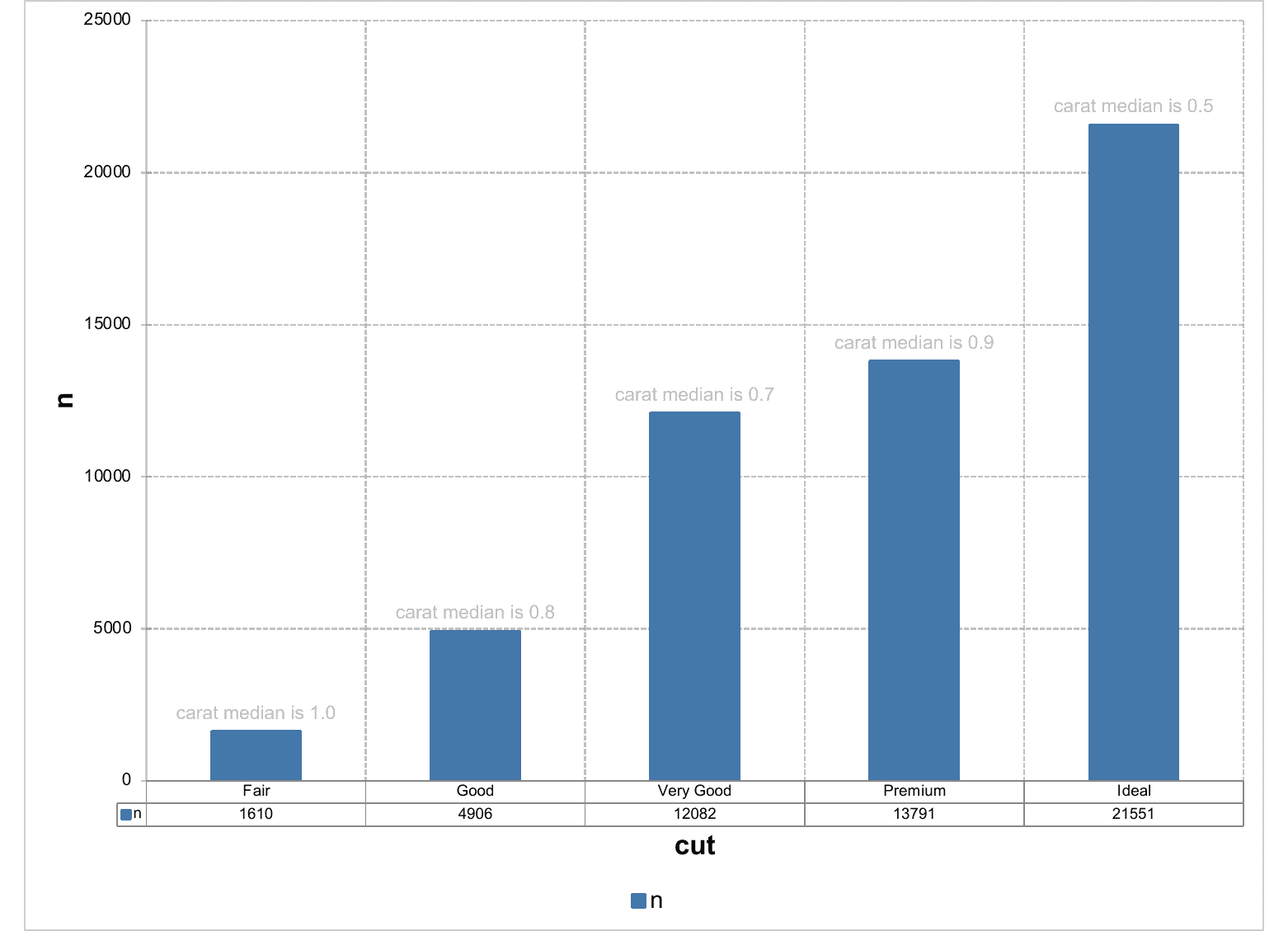

# example chart 06 -------
chart_06 <- ms_barchart(
  data = dat_no_group,
  x = "cut", labels = "label", y = "n"
)
chart_06 <- chart_settings(chart_06,
  grouping = "clustered", table = TRUE
)
chart_06 <- chart_data_labels(chart_06, position = "outEnd")
chart_06 <- chart_labels_text(chart_06, text_prop)
# print(chart_06, preview = TRUE)


# example chart 07 -------
# Series order (and therefore legend order) follows the levels of
# the `group` factor. Convert the column to a factor with the desired
# level order before passing it to ms_barchart().
ordered_data <- browser_data
ordered_data$serie <- factor(ordered_data$serie,
  levels = c("serie3", "serie1", "serie2")
)
chart_07 <- ms_barchart(
  data = ordered_data, x = "browser",
  y = "value", group = "serie"
)
chart_07 <- chart_labels(chart_07,
  title = "Series and legend ordered via factor levels"
)
# print(chart_07, preview = TRUE)

# example chart 08 -------
# Wide-format input: each series is its own column. Pass the series
# column names as a vector in `y` and set `asis = TRUE`.
browser_wide <- data.frame(
  browser = unique(browser_data$browser),
  serie1  = browser_data$value[browser_data$serie == "serie1"],
  serie2  = browser_data$value[browser_data$serie == "serie2"],
  serie3  = browser_data$value[browser_data$serie == "serie3"]
)
chart_08 <- ms_barchart(
  data = browser_wide,
  x = "browser",
  y = c("serie1", "serie2", "serie3"),
  asis = TRUE
)
# print(chart_08, preview = TRUE)

Boxplot chart object

Description

Creation of a box-and-whisker chart object that can be inserted in a 'Microsoft' document. Boxplot charts use the chartEx pipeline (Office 2016+); older versions of 'Microsoft Office' will display a fallback placeholder.

Data is in long format: one row per observation. Office computes quartiles and whiskers from the raw values; do not pre-aggregate.

Usage

ms_boxplotchart(
  data,
  x,
  y,
  quartile_method = c("exclusive", "inclusive"),
  show_mean_marker = TRUE,
  show_mean_line = FALSE,
  show_outliers = TRUE,
  show_inner_points = FALSE
)

Arguments

data

a data.frame.

x

category column name. Each unique value becomes one box.

y

numeric value column name (raw observations).

quartile_method

one of "exclusive" (default) or "inclusive". Affects how Q1/Q3 are computed when the count is even.

show_mean_marker

logical, draw the mean as a marker. Default TRUE.

show_mean_line

logical, draw a line connecting means across boxes. Default FALSE.

show_outliers

logical, plot outlier points. Default TRUE.

show_inner_points

logical, plot all non-outlier points. Default FALSE.

Value

An ms_chart object (subclass ms_boxplotchart).

Examples

library(officer)

set.seed(1)
dat <- data.frame(
  group = rep(c("A", "B", "C"), each = 20),
  value = c(rnorm(20, 0, 5), rnorm(20, 3, 7), rnorm(20, -2, 4))
)
bp <- ms_boxplotchart(dat, x = "group", y = "value")

doc <- read_pptx()
doc <- add_slide(doc)
doc <- ph_with(doc, bp, location = ph_location_fullsize())
print(doc, target = tempfile(fileext = ".pptx"))

Bubblechart object

Description

Creation of a bubblechart object that can be inserted in a 'Microsoft' document. A bubble chart is a scatter chart where each point has a third numeric dimension controlling its size.

Usage

ms_bubblechart(data, x, y, size, group = NULL, labels = NULL, asis = FALSE)

Arguments

data

a data.frame

x

column name for x values.

y

column name for y values.

size

column name for bubble size values (must be numeric)

group

grouping column name used to split data into series. Optional.

labels

asis

Value

An ms_chart object.

Examples

library(officer)

dat <- data.frame(
  x = c(1, 2, 3, 4, 5),
  y = c(10, 20, 15, 25, 30),
  sz = c(5, 10, 7, 15, 12),
  grp = rep("s1", 5)
)

bubble <- ms_bubblechart(
  data = dat, x = "x", y = "y",
  size = "sz", group = "grp"
)

# adjust axes to avoid clipping extreme bubbles
bubble <- chart_ax_x(bubble, limit_min = 0, limit_max = 6)
bubble <- chart_ax_y(bubble, limit_min = 5, limit_max = 35)
bubble

Combined chart object

Description

Combine several chart objects into a single chart with shared axes. Each chart must be a named argument.

The title and x-axis label are taken from the first chart. The y-axis label of the first chart on the secondary axis is used as the secondary y-axis label.

Only one secondary y-axis (right) and one secondary x-axis (top) are supported.

Usage

ms_chart_combine(..., secondary_y = NULL, secondary_x = NULL)

Arguments

...

named ms_chart objects.

secondary_y

character vector of chart names to plot on the secondary (right) y-axis.

secondary_x

character vector of chart names to plot on the secondary (top) x-axis.

Examples

# example chart 01 -------

dat <- longley
dat$Year <- as.Date(paste0(dat$Year, "-01-01"))

dat_empl <- data.frame(
  Year = rep(dat$Year, 2),
  value = c(dat$Employed, dat$Unemployed),
  serie = rep(c("Employed", "Unemployed"), each = nrow(dat)),
  stringsAsFactors = FALSE
)

empl <- ms_barchart(
  data = dat_empl, x = "Year",
  y = "value", group = "serie"
)
empl <- chart_labels(
  x = empl, title = "Longley's Economic Regression Data",
  xlab = "1947 to 1962", ylab = "Employment"
)
empl <- chart_ax_x(x = empl, num_fmt = "yyyy")
empl <- as_bar_stack(x = empl, dir = "vertical")

gdp <- ms_linechart(data = dat, x = "Year", y = "GNP.deflator")
gdp <- chart_labels(x = gdp, ylab = "GNP implicit price deflator (1954 = 100)")

cb <- ms_chart_combine(empl = empl, gdp = gdp, secondary_y = "gdp")

# example chart 02 -------
# stacked bars + target line on a shared axis (no secondary axis).

browser_data <- data.frame(
  browser = rep(c("Android", "Chrome", "IE", "Firefox", "Opera", "Safari"),
                each = 3),
  serie   = rep(c("v1", "v2", "v3"), times = 6),
  value   = c(80, 90, 77, 150, 140, 131, 60, 70, 62,
              50, 60, 52, 40, 50, 42, 55, 65, 55)
)

target <- data.frame(
  browser = unique(browser_data$browser),
  cible   = 220
)

bars <- ms_barchart(browser_data, x = "browser",
                    y = "value", group = "serie")
bars <- as_bar_stack(bars)

line <- ms_linechart(target, x = "browser", y = "cible")
line <- chart_data_stroke(line, values = "#D62728")
line <- chart_data_line_width(line, values = 2)
line <- chart_data_symbol(line, values = "none")

cb2 <- ms_chart_combine(bars = bars, target = line)

# example chart 03 -------
# two scatter charts on a shared y axis with independent x ranges.
# bottom (primary) chart uses temperature in Celsius;
# top (secondary_x) chart uses pressure in hPa.
# y series must have distinct column names (no collision in the
# embedded sheet) — here humidity_t vs humidity_p.

set.seed(1)
n <- 20
weather <- data.frame(
  temperature_c = runif(n, 5, 30),
  pressure_hpa  = runif(n, 990, 1030),
  humidity_t    = runif(n, 30, 90),
  humidity_p    = runif(n, 30, 90)
)

sc_temp <- ms_scatterchart(
  data = weather, x = "temperature_c", y = "humidity_t"
)
sc_temp <- chart_labels(
  sc_temp, title = "Humidity vs temperature and pressure",
  xlab = "Temperature (°C)", ylab = "Humidity (%)"
)

sc_pres <- ms_scatterchart(
  data = weather, x = "pressure_hpa", y = "humidity_p"
)
sc_pres <- chart_data_symbol(sc_pres, values = "triangle")
sc_pres <- chart_labels(sc_pres, xlab = "Pressure (hPa)")

cb3 <- ms_chart_combine(
  temp = sc_temp, pres = sc_pres,
  secondary_x = "pres"
)

Funnel chart object

Description

Creation of a funnel chart object that can be inserted in a 'Microsoft' document. Funnel charts use the chartEx pipeline (Office 2016+); older versions of 'Microsoft Office' will display a fallback placeholder.

Each row is one stage of the funnel. Values are typically decreasing (e.g. visitors -> leads -> customers). Bars are centered horizontally and width is proportional to the value.

Usage

ms_funnelchart(data, x, y)

Arguments

data

a data.frame.

x

category column name (stage label).

y

numeric value column name.

Value

An ms_chart object (subclass ms_funnelchart).

Examples

library(officer)

dat <- data.frame(
  stage = c("Visitors", "Leads", "Opportunities", "Quotes", "Customers"),
  count = c(5000, 4000, 3000, 1000, 250),
  stringsAsFactors = FALSE
)
fn <- ms_funnelchart(data = dat, x = "stage", y = "count")

doc <- read_pptx()
doc <- add_slide(doc)
doc <- ph_with(doc, fn, location = ph_location_fullsize())
print(doc, target = tempfile(fileext = ".pptx"))

Histogram chart object

Description

Creation of a histogram chart object that can be inserted in a 'Microsoft' document. Histogram charts use the chartEx pipeline (Office 2016+); older versions of 'Microsoft Office' will display a fallback placeholder.

Data is a single column of raw numeric observations. Office computes the bins automatically; pass bin_count or bin_width to override.

Usage

ms_histogramchart(
  data,
  value,
  bin_count = NULL,
  bin_width = NULL,
  interval_closed = c("right", "left"),
  underflow = NULL,
  overflow = NULL
)

Arguments

data

a data.frame.

value

numeric column name (raw observations).

bin_count

integer, requested number of bins. Mutually exclusive with bin_width. NULL = automatic.

bin_width

numeric, requested bin width. Mutually exclusive with bin_count. NULL = automatic.

interval_closed

one of "right" (default) or "left". Defines which end of each bin is inclusive.

underflow

numeric, values below this go in an "underflow" bin. NULL to disable.

overflow

numeric, values above this go in an "overflow" bin. NULL to disable.

Value

An ms_chart object (subclass ms_histogramchart).

Examples

library(officer)

set.seed(1)
dat <- data.frame(x = rnorm(200, mean = 10, sd = 4))
hi <- ms_histogramchart(dat, value = "x", bin_count = 12)

doc <- read_pptx()
doc <- add_slide(doc)
doc <- ph_with(doc, hi, location = ph_location_fullsize())
print(doc, target = tempfile(fileext = ".pptx"))

Linechart object

Description

Creation of a linechart object that can be inserted in a 'Microsoft' document.

In a line chart, category data is distributed evenly along the horizontal axis, and all value data is distributed evenly along the vertical axis. Line charts can show continuous data over time on an evenly scaled axis, so they're ideal for showing trends in data at equal intervals, like months and quarters.

Usage

ms_linechart(data, x, y, group = NULL, labels = NULL, asis = FALSE)

Arguments

data

a data.frame

x

column name for x values.

y

column name for y values.

group

grouping column name used to split data into series. Optional.

labels

asis

Value

An ms_chart object.

Illustrations

Examples

library(officer)
# example chart_01 -------
chart_01 <- ms_linechart(
  data = us_indus_prod,
  x = "date", y = "value",
  group = "type"
)

chart_01 <- chart_ax_x(
  x = chart_01, num_fmt = "[$-fr-FR]mmm yyyy",
  limit_min = min(us_indus_prod$date), limit_max = as.Date("1992-01-01")
)

chart_01 <- chart_data_stroke(
  x = chart_01,
  values = c(adjusted = "red", unadjusted = "gray")
)

chart_01 <- chart_data_line_width(
  x = chart_01,
  values = c(adjusted = 2, unadjusted = 5)
)

chart_01 <- chart_theme(chart_01,
  grid_major_line_x = fp_border(width = 0),
  grid_minor_line_x = fp_border(width = 0)
)

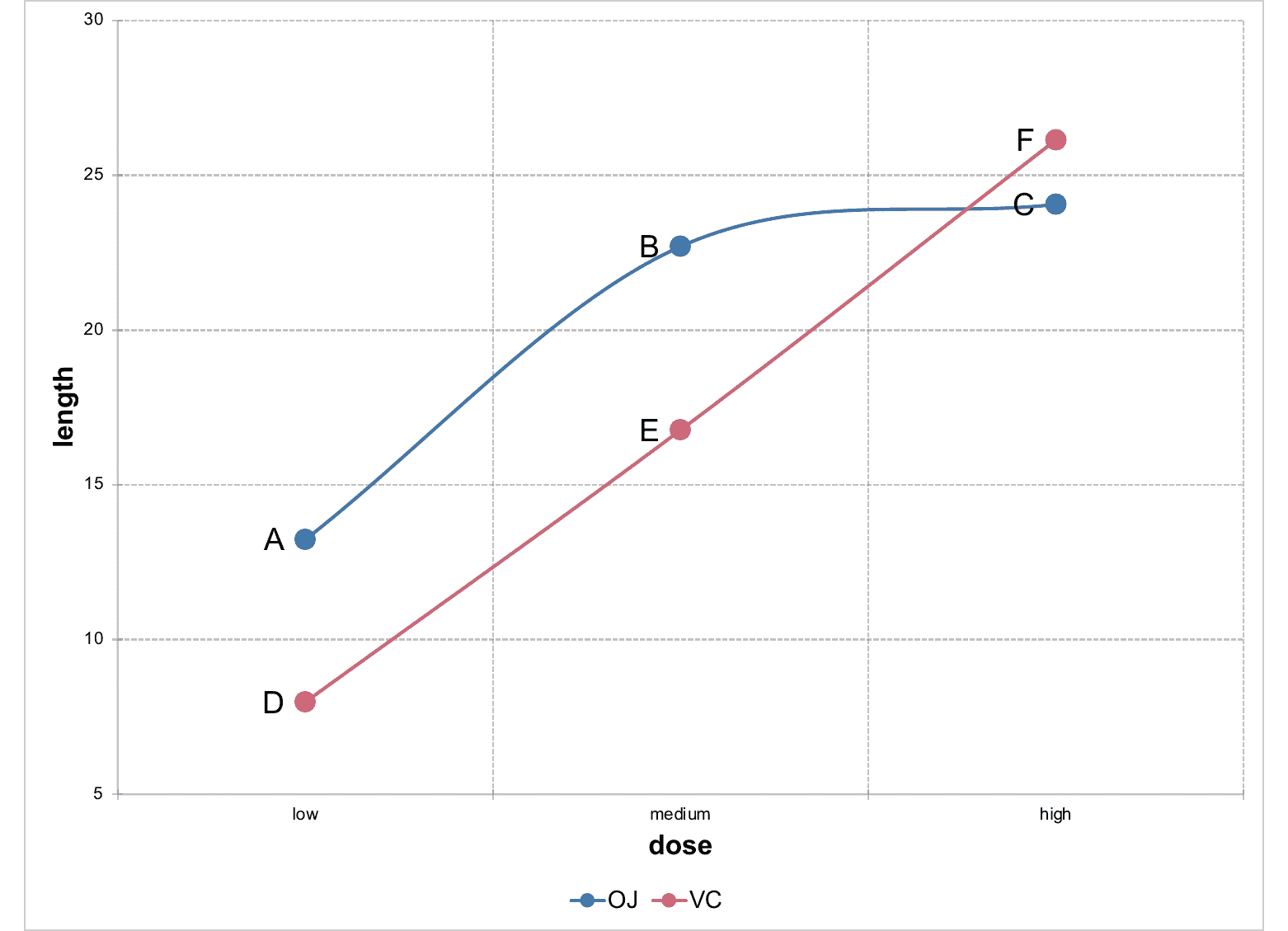

# example chart_02 -------
data <- data.frame(
  supp = factor(rep(c("OJ", "VC"), each = 3), levels = c("OJ", "VC")),
  dose = factor(rep(c("low", "medium", "high"), 2), levels = c("low", "medium", "high")),
  length = c(13.23, 22.7, 24.06, 7.98, 16.77, 26.14),
  label = LETTERS[1:6],
  stringsAsFactors = FALSE
)

chart_02 <- ms_linechart(
  data = data, x = "dose", y = "length",
  group = "supp", labels = "label"
)
chart_02 <- chart_ax_y(
  x = chart_02, cross_between = "between",
  limit_min = 5, limit_max = 30,
  num_fmt = "General"
)
chart_02 <- chart_data_labels(
  x = chart_02, position = "l"
)

# example chart 03 -------
chart_03 <- ms_linechart(
  data = data, x = "dose", y = "length",
  group = "supp", labels = "label"
)
chart_03 <- chart_ax_y(
  x = chart_03, cross_between = "between",
  limit_min = 5, limit_max = 30,
  num_fmt = "General"
)
chart_03 <- chart_data_labels(
  x = chart_03, position = "l"
)

chart_03 <- chart_settings(
  x = chart_03, table = TRUE
)

chart_03 <- chart_table(chart_03,
  horizontal = TRUE, vertical = FALSE,
  outline = TRUE, show_keys = FALSE
)

Pareto chart object

Description

Creation of a Pareto chart object that can be inserted in a 'Microsoft' document. Pareto charts use the chartEx pipeline (Office 2016+); older versions of 'Microsoft Office' will display a fallback placeholder.

Office draws columns sorted by descending count plus a cumulative line on a secondary percentage axis.

Two input modes are supported:

aggregate = TRUE (default): data is in long format (one row per observation) and Office counts occurrences of each x value. y is optional; when supplied, values are summed per category.
aggregate = FALSE: data is already aggregated (one row per category) and y is the count/value column.

Usage

ms_paretochart(data, x, y = NULL, aggregate = TRUE)

Arguments

data

a data.frame.

x

category column name.

y

optional numeric column. With aggregate=TRUE and y=NULL, each row counts as 1.

aggregate

logical, see Description. Default TRUE.

Value

An ms_chart object (subclass ms_paretochart).

Examples

library(officer)

set.seed(1)
dat <- data.frame(
  defect = sample(c("A", "B", "C", "D"), 50, replace = TRUE,
                  prob = c(0.5, 0.25, 0.15, 0.1))
)
pa <- ms_paretochart(dat, x = "defect")

doc <- read_pptx()
doc <- add_slide(doc)
doc <- ph_with(doc, pa, location = ph_location_fullsize())
print(doc, target = tempfile(fileext = ".pptx"))

Piechart object

Description

Creation of a piechart object that can be inserted in a 'Microsoft' document.

Pie charts show the proportion of each category as a slice of a circle. Doughnut charts are similar but have a hole in the centre. Use chart_settings(x, hole_size = ...) to control the hole size: 0 produces a pie chart, values above 0 produce a doughnut chart.

Data must be pre-aggregated: one row per slice, no grouping column.

Usage

ms_piechart(data, x, y, labels = NULL)

Arguments

data

a data.frame

x

column name for categories (slices).

y

column name for values (slice sizes).

labels

Value

An ms_chart object.

Examples

library(officer)
library(mschart)

dat <- data.frame(
  browser = c("Chrome", "Firefox", "Safari", "Edge", "Other"),
  value = c(64, 12, 8, 5, 11)
)

# Pie chart
pie <- ms_piechart(data = dat, x = "browser", y = "value")
pie <- chart_labels(pie, title = "Browser share")

# Doughnut chart
donut <- ms_piechart(data = dat, x = "browser", y = "value")
donut <- chart_settings(donut, hole_size = 50)
donut <- chart_labels(donut, title = "Browser share (donut)")

Radarchart object

Description

Creation of a radar (spider) chart object that can be inserted in a 'Microsoft' document.

Usage

ms_radarchart(data, x, y, group = NULL, labels = NULL, asis = FALSE)

Arguments

data

a data.frame

x

column name for x values.

y

column name for y values.

group

grouping column name used to split data into series. Optional.

labels

asis

Value

An ms_chart object.

Examples

library(officer)

dat <- data.frame(
  axis = c("Sales", "Marketing", "Dev", "Support", "HR"),
  s1 = c(4, 3, 5, 2, 4),
  s2 = c(3, 5, 2, 4, 3)
)
dat_long <- data.frame(
  axis = rep(dat$axis, 2),
  value = c(dat$s1, dat$s2),
  group = rep(c("Team A", "Team B"), each = 5)
)

radar <- ms_radarchart(
  data = dat_long, x = "axis",
  y = "value", group = "group"
)
radar

Scatterchart object

Description

Creation of a scatterchart object that can be inserted in a 'Microsoft' document.

Usage

ms_scatterchart(data, x, y, group = NULL, labels = NULL, asis = FALSE)

Arguments

data

a data.frame

x

column name for x values.

y

column name for y values.

group

grouping column name used to split data into series. Optional.

labels

asis

Value

An ms_chart object.

Illustrations

Examples

library(officer)
# example chart_01 -------
chart_01 <- ms_scatterchart(
  data = mtcars, x = "disp",
  y = "drat"
)
chart_01 <- chart_settings(chart_01, scatterstyle = "marker")


# example chart_02 -------
chart_02 <- ms_scatterchart(
  data = iris, x = "Sepal.Length",
  y = "Petal.Length", group = "Species"
)
chart_02 <- chart_settings(chart_02, scatterstyle = "marker")

Stockchart object

Description

Creation of a stock chart object that can be inserted in a 'Microsoft' document. When open is omitted the chart is a High-Low-Close chart. When open is provided it becomes an Open-High-Low-Close chart with up/down bars (candlestick).

Usage

ms_stockchart(data, x, open = NULL, high, low, close)

Arguments

data

a data.frame

x

column name for categories (typically dates)

open

column name for open values (optional, enables OHLC mode)

high

column name for high values

low

column name for low values

close

column name for close values

Value

An ms_chart object.

Examples

library(officer)

dat <- data.frame(
  date = as.Date("2024-01-01") + 0:4,
  open = c(44, 25, 38, 50, 34),
  high = c(55, 57, 57, 58, 58),
  low = c(11, 12, 13, 11, 25),
  close = c(32, 35, 34, 35, 43)
)

# HLC chart
stock_hlc <- ms_stockchart(
  data = dat, x = "date",
  high = "high", low = "low", close = "close"
)
stock_hlc

# OHLC chart (candlestick)
stock_ohlc <- ms_stockchart(
  data = dat, x = "date",
  open = "open", high = "high",
  low = "low", close = "close"
)
stock_ohlc

Sunburst chart object

Description

Creation of a sunburst chart object that can be inserted in a 'Microsoft' document. Sunburst charts use the chartEx pipeline (Office 2016+); older versions of 'Microsoft Office' will display a fallback placeholder.

Data is hierarchical: one column per level (parent to leaf, left to right) and one numeric column for the leaf values. Leaf values propagate to parent rings as sums.

Usage

ms_sunburstchart(data, path, value, labels = NULL)

Arguments

data

a data.frame.

path

character vector of column names defining the hierarchy, from outermost (root) to innermost (leaf).

value

column name for the numeric leaf values.

labels

unused for now; reserved for future custom data label columns.

Value

An ms_chart object (subclass ms_sunburstchart).

Per-leaf coloring

Same caveat as ms_treemapchart(): per-leaf colors via chart_data_fill() only work reliably with length(path) == 1.

Examples

library(officer)

dat <- data.frame(
  region  = c("EU", "EU", "EU", "AM", "AM"),
  country = c("FR", "FR", "DE", "US", "US"),
  city    = c("Paris", "Lyon", "Berlin", "NYC", "LA"),
  value   = c(10, 5, 12, 20, 8),
  stringsAsFactors = FALSE
)
sb <- ms_sunburstchart(
  data = dat, path = c("region", "country", "city"), value = "value"
)

doc <- read_pptx()
doc <- add_slide(doc)
doc <- ph_with(doc, sb, location = ph_location_fullsize())
print(doc, target = tempfile(fileext = ".pptx"))

Treemap chart object

Description

Creation of a treemap chart object that can be inserted in a 'Microsoft' document. Treemap charts use the chartEx pipeline (Office 2016+); older versions of 'Microsoft Office' will display a fallback placeholder.

Data is hierarchical: one column per level (parent to leaf, left to right) and one numeric column for the leaf values.

Usage

ms_treemapchart(data, path, value, labels = NULL)

Arguments

data

a data.frame.

path

character vector of column names defining the hierarchy, from outermost (root) to innermost (leaf).

value

column name for the numeric leaf values.

labels

unused for now; reserved for future custom data label columns.

Value

An ms_chart object (subclass ms_treemapchart).

Per-leaf coloring with `chart_data_fill()`

Per-leaf coloring via chart_data_fill() with a named vector works correctly on flat treemaps (length(path) == 1). With a hierarchy (length(path) >= 2), PowerPoint silently re-maps ⁠<cx:dataPt>⁠ indices in a way that drops idx="0" and applies the last specified color to remaining leaves. This is a PowerPoint rendering limitation (also reproducible from Excel-generated chartEx files); the mschart XML output is conformant. For hierarchical treemaps, prefer a single fill color via chart_data_fill(x, "#HEX").

Examples

library(officer)

dat <- data.frame(
  region  = c("EU", "EU", "EU", "AM", "AM"),
  country = c("FR", "FR", "DE", "US", "US"),
  city    = c("Paris", "Lyon", "Berlin", "NYC", "LA"),
  value   = c(10, 5, 12, 20, 8),
  stringsAsFactors = FALSE
)
tm <- ms_treemapchart(
  data = dat, path = c("region", "country", "city"), value = "value"
)
tm <- chart_labels(tm, title = "Sales by region")

doc <- read_pptx()
doc <- add_slide(doc)
doc <- ph_with(doc, tm, location = ph_location_fullsize())
print(doc, target = tempfile(fileext = ".pptx"))

Waterfall chart object

Description

Creation of a waterfall chart object that can be inserted in a 'Microsoft' document. Waterfall charts use the chartEx pipeline (Office 2016+); older versions of 'Microsoft Office' will display a fallback placeholder.

Each row is one bar. Positive values rise, negative values fall. Categories listed in subtotals are rendered as absolute totals (typical for "Start", intermediate totals, and "End" bars).

Usage

ms_waterfallchart(data, x, y, subtotals = NULL)

Arguments

data

a data.frame.

x

category column name.

y

numeric value column name. Signed values: positive = up, negative = down. For subtotal rows, the value should be the running total at that point.

subtotals

integer vector of 1-based row indices that should be rendered as subtotal/total bars. Defaults to none.

Value

An ms_chart object (subclass ms_waterfallchart).

Examples

library(officer)

dat <- data.frame(
  step = c("Start", "Q1", "Q2", "Q3", "End"),
  amount = c(100, 30, -20, 40, 150),
  stringsAsFactors = FALSE
)
wf <- ms_waterfallchart(
  data = dat, x = "step", y = "amount",
  subtotals = c(1, 5)
)

doc <- read_pptx()
doc <- add_slide(doc)
doc <- ph_with(doc, wf, location = ph_location_fullsize())
print(doc, target = tempfile(fileext = ".pptx"))

Add a MS Chart output into a PowerPoint object

Description

Produces a Microsoft Chart graphics output from R instructions and adds the result in a PowerPoint document object produced by officer::read_pptx().

Usage

## S3 method for class 'ms_chart'
ph_with(x, value, location, ...)

Arguments

x

a pptx device

value

chart object

location

a location for a placeholder.

...

Arguments to be passed to methods.

Value

An rpptx object.

Examples

my_barchart <- ms_barchart(data = browser_data,
  x = "browser", y = "value", group = "serie")
my_barchart <- chart_settings( x = my_barchart,
  dir="vertical", grouping="clustered", gap_width = 50 )
my_barchart <- chart_ax_x( x= my_barchart,
  cross_between = 'between', major_tick_mark="out")
my_barchart <- chart_ax_y( x= my_barchart,
  cross_between = "midCat", major_tick_mark="in")

library(officer)
doc <- read_pptx()
doc <- add_slide(doc, "Title and Content", "Office Theme")
doc <- ph_with(doc, my_barchart, location = ph_location_fullsize())

fileout <- tempfile(fileext = ".pptx")
print(doc, target = fileout)

Print method for ms_chart

Description

An ms_chart object cannot be rendered in R. The default printing method will only display simple information about the object. If argument preview is set to TRUE, a pptx file will be produced and opened with function browseURL.

Usage

## S3 method for class 'ms_chart'
print(x, preview = FALSE, ...)

Arguments

x

an ms_chart object.

preview

preview the chart in a PowerPoint document

...

unused

Value

No return value, called for side effects.

Set chart theme

Description

Modify chart theme with function set_theme.

Use mschart_theme() to create a chart theme.

Use chart_theme() to modify components of the theme of a chart.

Usage

set_theme(x, value)

mschart_theme(
  axis_title = fp_text(bold = TRUE, font.size = 16),
  axis_title_x = axis_title,
  axis_title_y = axis_title,
  main_title = fp_text(bold = TRUE, font.size = 20),
  legend_text = fp_text(font.size = 14),
  table_text = fp_text(bold = FALSE, font.size = 9),
  axis_text = fp_text(),
  axis_text_x = axis_text,
  axis_text_y = axis_text,
  title_rot = 0,
  title_x_rot = 0,
  title_y_rot = 270,
  axis_ticks = fp_border(color = "#99999999"),
  axis_ticks_x = axis_ticks,
  axis_ticks_y = axis_ticks,
  grid_major_line = fp_border(color = "#99999999", style = "dashed"),
  grid_major_line_x = grid_major_line,
  grid_major_line_y = grid_major_line,
  grid_minor_line = fp_border(width = 0),
  grid_minor_line_x = grid_minor_line,
  grid_minor_line_y = grid_minor_line,
  chart_background = NULL,
  chart_border = fp_border(color = "transparent"),
  plot_background = NULL,
  plot_border = fp_border(color = "transparent"),
  date_fmt = "yyyy/mm/dd",
  str_fmt = "General",
  double_fmt = "#,##0.00",
  integer_fmt = "0",
  legend_position = "b",
  legend_x = NULL,
  legend_y = NULL,
  legend_w = NULL,
  legend_h = NULL
)

chart_theme(
  x,
  axis_title_x,
  axis_title_y,
  main_title,
  legend_text,
  title_rot,
  title_x_rot,
  title_y_rot,
  axis_text_x,
  axis_text_y,
  axis_ticks_x,
  axis_ticks_y,
  grid_major_line_x,
  grid_major_line_y,
  grid_minor_line_x,
  grid_minor_line_y,
  chart_background,
  chart_border,
  plot_background,
  plot_border,
  date_fmt,
  str_fmt,
  double_fmt,
  integer_fmt,
  legend_position,
  legend_x,
  legend_y,
  legend_w,
  legend_h
)

Arguments

x

an ms_chart object.

value

a mschart_theme() object.

axis_title, axis_title_x, axis_title_y

axis title formatting properties (see officer::fp_text())

main_title

title formatting properties (see officer::fp_text())

legend_text

legend text formatting properties (see officer::fp_text())

table_text

table text formatting properties (see officer::fp_text())

axis_text, axis_text_x, axis_text_y

axis text formatting properties (see officer::fp_text())

title_rot, title_x_rot, title_y_rot

rotation angle

axis_ticks, axis_ticks_x, axis_ticks_y

axis ticks formatting properties (see officer::fp_border())

grid_major_line, grid_major_line_x, grid_major_line_y

major grid lines formatting properties (see officer::fp_border())

grid_minor_line, grid_minor_line_x, grid_minor_line_y

minor grid lines formatting properties (see officer::fp_border())

chart_background

chart area background fill color - single character value (e.g. "#000000" or "black")

chart_border

chart area border lines formatting properties (see officer::fp_border())

plot_background

plot area background fill color - single character value (e.g. "#000000" or "black")

plot_border

plot area border lines formatting properties (see officer::fp_border())

date_fmt

date format

str_fmt

string or factor format

double_fmt

double format

integer_fmt

integer format

legend_position

it specifies the position of the legend. It should be one of 'b', 'tr', 'l', 'r', 't', 'n' (for 'none').

legend_x, legend_y, legend_w, legend_h

optional fractions between 0 and 1 to manually position and size the legend box within the chart area. Each value is a fraction of the chart width (legend_x, legend_w) or height (legend_y, legend_h). Any NULL value keeps the default automatic layout; setting at least one triggers manual placement via ⁠<c:manualLayout>⁠.

Value

An ms_chart object.

An mschart_theme object (for mschart_theme()).

An ms_chart object (for set_theme() and chart_theme()).

Examples

library(officer)
mytheme <- mschart_theme(
  axis_title = fp_text(color = "red", font.size = 24, bold = TRUE),
  grid_major_line_y = fp_border(width = 1, color = "orange"),
  axis_ticks_y = fp_border(width = 0.4, color = "gray")
)


my_bc <- ms_barchart(
  data = browser_data, x = "browser",
  y = "value", group = "serie"
)
my_bc <- chart_settings(my_bc,
  dir = "horizontal", grouping = "stacked",
  gap_width = 150, overlap = 100
)
my_bc <- set_theme(my_bc, mytheme)

my_bc_2 <- ms_barchart(
  data = browser_data, x = "browser",
  y = "value", group = "serie"
)
my_bc_2 <- chart_theme(my_bc_2,
  grid_major_line_y = fp_border(width = 0.5, color = "cyan")
)

# Manual legend layout: place the legend in the top-right corner
# using fractions of the chart area (0 to 1).
my_bc_3 <- ms_barchart(
  data = browser_data, x = "browser",
  y = "value", group = "serie"
)
my_bc_3 <- chart_theme(my_bc_3,
  legend_position = "r",
  legend_x = 0.80, legend_y = 0.15,
  legend_w = 0.18, legend_h = 0.30
)

Add an ms_chart to an Excel sheet

Description

Add an ms_chart object to a sheet in an xlsx workbook created with officer::read_xlsx(). The chart data is written into the sheet and the chart is displayed at the specified position.

Usage

## S3 method for class 'ms_chart'
sheet_add_drawing(
  x,
  value,
  sheet,
  start_col = 1L,
  start_row = 1L,
  write_data = TRUE,
  left = 1,
  top = 1,
  width = 6,
  height = 4,
  anchor = NULL,
  edit_as = c("twoCell", "oneCell", "absolute"),
  ...
)

Arguments

x

an rxlsx object (created by officer::read_xlsx())

value

an ms_chart object

sheet

sheet name where the chart and its data will be placed. The sheet must already exist (see officer::add_sheet()).

start_col

column index where chart data will be written (default 1, i.e. column A). When write_data = FALSE, this is still the cell position that the chart XML will point at, but no data is written.

start_row

row index where chart data will be written (default 1). Same semantics with write_data = FALSE as for start_col.

write_data

if TRUE (the default), the chart's data_series is written into the sheet at ⁠(start_col, start_row)⁠ before the chart is added. Pass FALSE when the data is already present in the sheet (for example to avoid rewriting it when several charts share the same dataset, or when inserting a chart that references data written independently via officer::sheet_write_data()). Not to be confused with the constructor's asis argument (see ms_barchart()), which controls how the input data frame is read at construction time. The two are independent.

left, top

top-left anchor of the chart, in inches. Defaults to ⁠(1, 1)⁠. Used when anchor = NULL. Same convention as officer::sheet_add_drawing() and rvg::sheet_add_drawing.dml().

width, height

size of the chart, in inches. Defaults to ⁠6 x 4⁠. Used when anchor = NULL or when anchor is a single cell reference.

anchor

optional Excel cell-based anchor. Either NULL (the default; absolute placement via left/top/width/height), a single cell reference like "B2" (the chart is anchored to that cell and keeps width/height, i.e. "Move but don't size with cells"), or a range like "B2:H20" (the chart is anchored from the first cell to the second, i.e. Excel's default "Move and size with cells").

edit_as

one of "twoCell", "oneCell", "absolute". Sets the editAs attribute on ⁠<xdr:twoCellAnchor>⁠. Ignored unless anchor is a range.

...

unused

Value

the rxlsx object (invisibly)

Examples

library(officer)
library(mschart)

my_chart <- ms_barchart(
  data = data.frame(
    x = c("A", "B", "C"),
    y = c(1, 3, 2),
    group = rep("serie1", 3)
  ),
  x = "x", y = "y", group = "group"
)

x <- read_xlsx()
x <- add_sheet(x, label = "chart_sheet")
x <- sheet_add_drawing(x, value = my_chart, sheet = "chart_sheet")
print(x, target = tempfile(fileext = ".xlsx"))

# Sharing one dataset between several charts on the same sheet:
# write the data once, then add each chart with write_data = FALSE.
shared <- data.frame(
  x = c("A", "B", "C"),
  y = c(1, 3, 2),
  group = rep("serie1", 3)
)
chart_a <- ms_barchart(shared, x = "x", y = "y", group = "group")
chart_b <- ms_linechart(shared, x = "x", y = "y", group = "group")

x <- read_xlsx()
x <- add_sheet(x, label = "multi")
x <- sheet_write_data(x, value = chart_a$data_series, sheet = "multi")
x <- sheet_add_drawing(x, value = chart_a, sheet = "multi",
                       write_data = FALSE,
                       left = 3, top = 0.5, width = 5, height = 3.5)
x <- sheet_add_drawing(x, value = chart_b, sheet = "multi",
                       write_data = FALSE,
                       left = 9, top = 0.5, width = 5, height = 3.5)
print(x, target = tempfile(fileext = ".xlsx"))

Apply ggplot2 theme

Description

A theme that approximates the style of ggplot2::theme_grey.

Usage

theme_ggplot2(x, base_size = 11, base_family = "Arial")

Arguments

x

a mschart object

base_size

base font size

base_family

font family

Value

a mschart object

theme_ggplot2()

Examples

p <- ms_scatterchart(
  data = iris, x = "Sepal.Length",
  y = "Sepal.Width", group = "Species"
)

p <- theme_ggplot2(p)
p <- chart_fill_ggplot2(p)

Index of US Industrial Production

Description

Index of US industrial production (1985 = 100).

Format

A data frame with 256 rows and 3 variables

Details

This is a transformation of the USProdIndex data from package 'AER' into a simple data.frame.

Package {mschart}

Chart Generation for 'Microsoft Word', 'Microsoft Excel' and 'Microsoft PowerPoint' Documents

Description

Series styling properties by chart type

Two arguments often confused: asis and write_data

Author(s)

See Also

Set a barchart as a stacked barchart

Description

Usage

Arguments

Value

See Also

Examples

Add a chart to a Word document

Description

Usage

Arguments

Value

See Also

Examples

Dummy dataset for barchart

Description

Format

Details

Dummy dataset for time series charts

Description

Format

Details

X axis settings

Description

Usage

Arguments

Value

num_fmt

Illustrations

See Also

Examples

Y axis settings

Description

Usage

Arguments

Value

Illustrations

num_fmt

See Also

Examples

Modify fill colour

Description

Usage

Arguments

Value

See Also

Examples

Modify data labels settings

Description

Usage

Arguments

Value

See Also

Examples

Modify line style

Description

Usage

Arguments

Value

See Also

Examples

Modify line width

Description

Usage

Arguments

Value

See Also

Examples

Modify symbol size

Description

Usage

Arguments

Value

Two arguments often confused: `asis` and `write_data`
