CRBHSF

Cyber-Resilient Bayesian Healthcare Surveillance Framework

CRBHSF provides a comprehensive framework for prospective healthcare performance surveillance through the integration of Bayesian risk estimation, latent organisational trust modelling, cyber-resilience assessment, decision-theoretic optimisation, and digital-twin deployment simulation.

The package was developed to support uncertainty-aware healthcare surveillance and proactive operational risk management in complex, digitally dependent healthcare systems.

Highlights

Bayesian healthcare surveillance
Cyber-resilience risk assessment
Latent organisational trust modelling
Prospective deterioration prediction
External validation framework
Ablation and incremental-value analysis
Decision-theoretic intervention prioritisation
Digital-twin deployment simulation
Publication-quality visualisations
Reproducible healthcare analytics workflows

Framework Overview

The CRBHSF workflow integrates healthcare performance data, Bayesian surveillance modelling, organisational trust estimation, cyber-resilience assessment, risk stratification, intervention prioritisation, and digital-twin deployment evaluation within a unified analytical framework.

Why CRBHSF?

Traditional healthcare monitoring systems primarily identify performance issues after they occur. CRBHSF extends conventional surveillance by integrating:

Bayesian uncertainty quantification
Prospective deterioration monitoring
Latent organisational trust estimation
Cyber-resilience risk assessment
External validation workflows
Ablation and incremental-value analysis
Decision-theoretic intervention prioritisation
Capacity-constrained deployment simulation
Digital-twin operational evaluation

Installation

install.packages("remotes")

remotes::install_github("zerish12/CRBHSF")

Core Workflow

library(CRBHSF)

df <- clean_health_data(
  data,
  provider_col = "provider",
  time_col = "month"
)

df <- fit_bayesian_surveillance(
  df,
  y_col = "y",
  n_col = "n"
)

df <- estimate_latent_trust(
  df,
  anomaly_col = "anomaly",
  corruption_col = "corruption",
  cyber_col = "cyber",
  missing_col = "missing"
)

df <- compute_crbhsf_risk(df)

df <- compute_crpr(df)

df <- create_deterioration_outcome(
  df,
  provider_col = "provider",
  time_col = "month",
  value_col = "risk_crbhsf",
  threshold = 0.04
)

validation_results <- validate_surveillance(
  df,
  outcome_col = "future_deterioration",
  score_col = "risk_crbhsf"
)

validation_results

Example Outputs

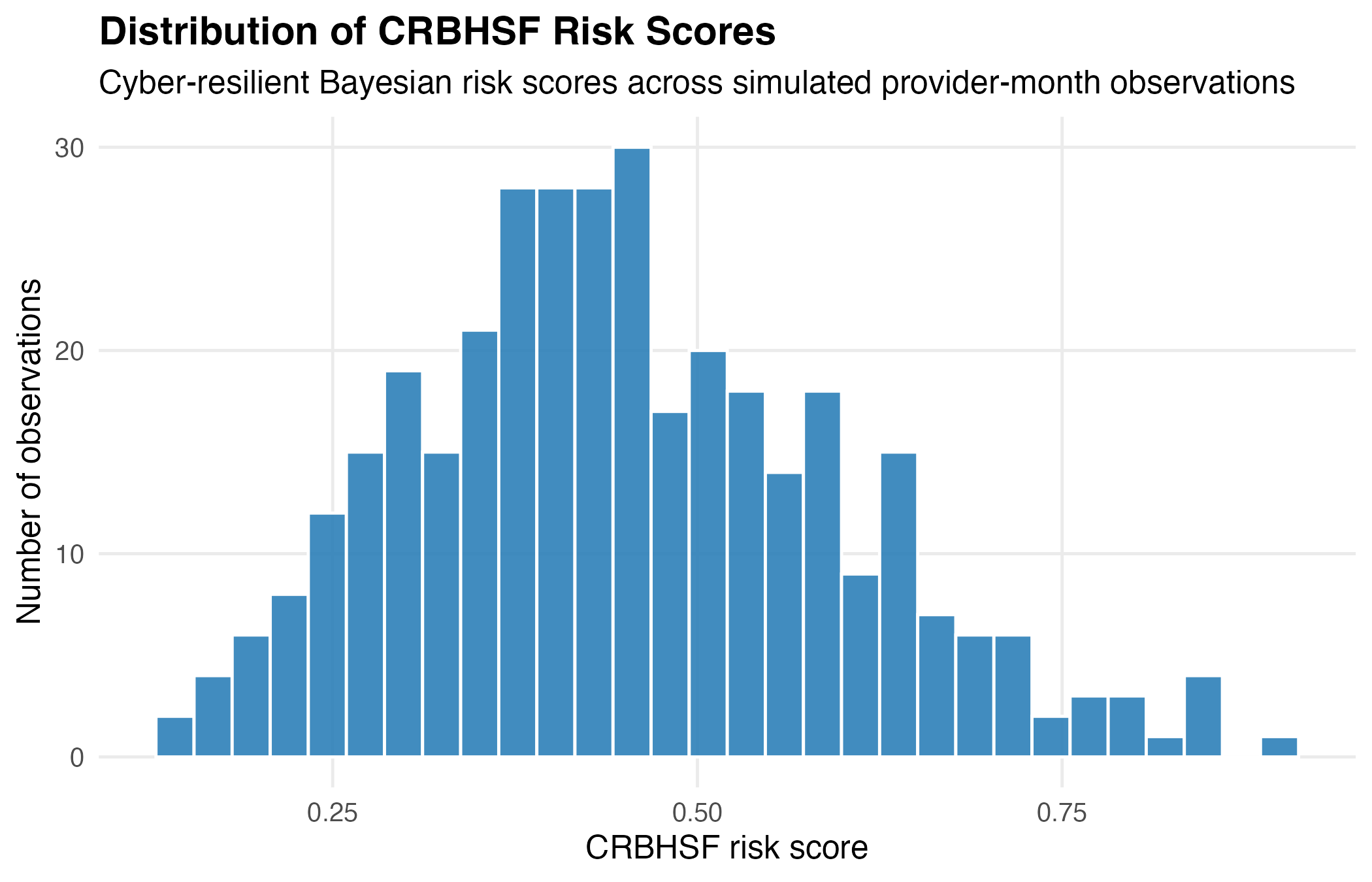

Cyber-Resilient Risk Distribution

Distribution of cyber-resilient Bayesian surveillance risk scores across healthcare providers.

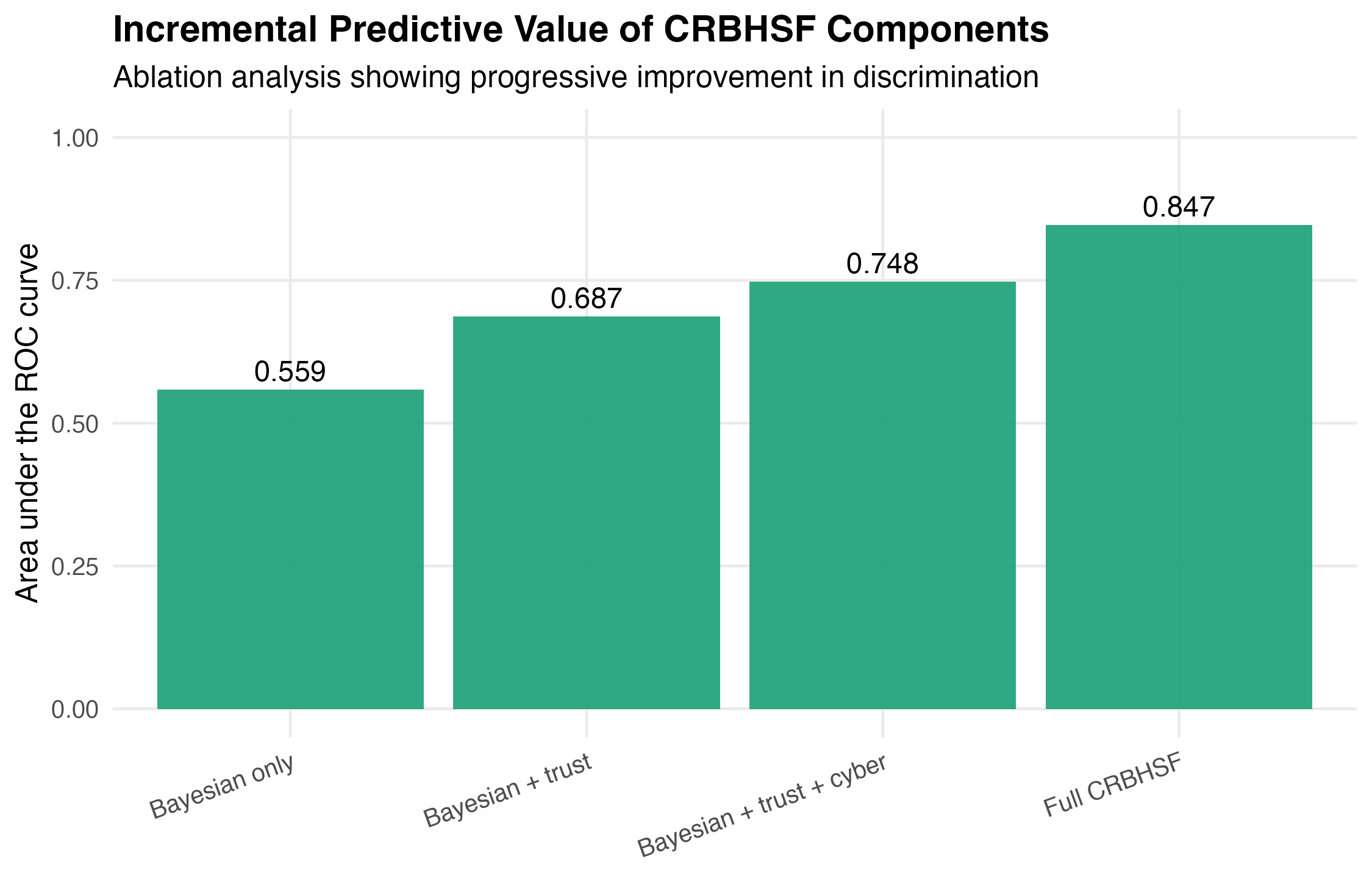

Incremental Predictive Value of Framework Components

Ablation analysis illustrating the incremental contribution of Bayesian surveillance, latent trust modelling, and cyber-resilience assessment.

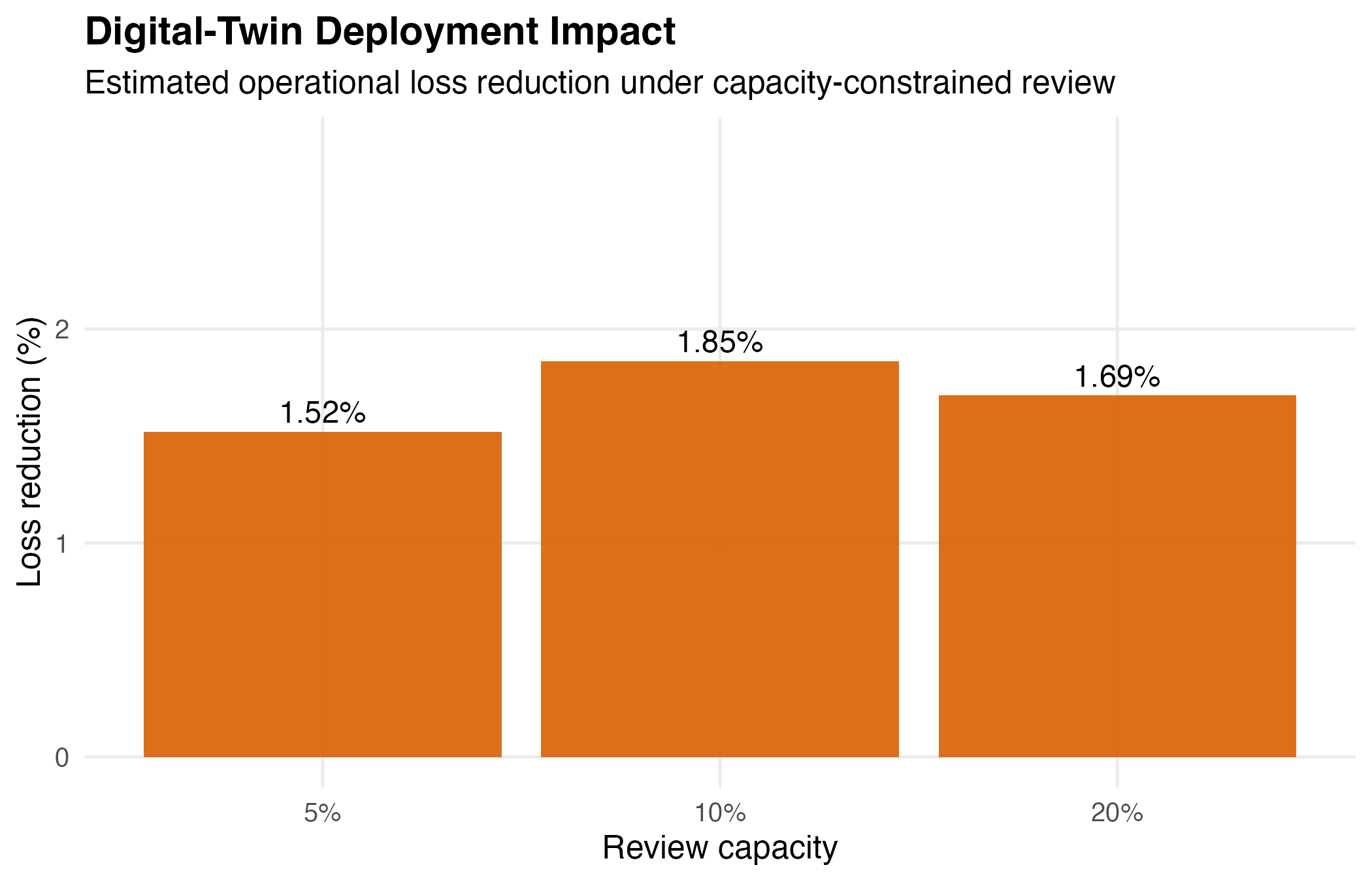

Digital-Twin Deployment Impact

Estimated reduction in operational losses under alternative intervention-capacity scenarios.

Main Functions

Function	Purpose
`clean_health_data()`	Healthcare data cleaning and preparation
`create_deterioration_outcome()`	Future deterioration outcome generation
`fit_bayesian_surveillance()`	Bayesian surveillance modelling
`estimate_latent_trust()`	Organisational trust estimation
`compute_crbhsf_risk()`	Cyber-resilient Bayesian risk computation
`compute_crpr()`	Cyber-Resilience Pressure Ratio
`validate_surveillance()`	Model validation and performance assessment
`run_ablation_study()`	Incremental-value evaluation
`compare_ml_benchmarks()`	Machine-learning benchmark comparison
`estimate_evib()`	Expected intervention benefit estimation
`simulate_digital_twin()`	Digital-twin deployment simulation
`plot_risk_distribution()`	Risk visualisation
`plot_ablation_auc()`	Ablation-analysis visualisation
`plot_deployment_impact()`	Deployment-impact visualisation
`generate_surveillance_report()`	Automated surveillance reporting

Research Applications

CRBHSF is designed for:

Healthcare performance surveillance
NHS operational analytics
Hospital performance monitoring
Cyber-resilience assessment
Health system resilience research
Bayesian healthcare analytics
Operational risk prediction
Digital-twin deployment studies
Decision-theoretic intervention planning
Healthcare operations research

Methodological Foundations

The framework draws upon contemporary developments in:

Bayesian healthcare surveillance
Clinical prediction model development
External validation methodology
Decision-analytic model evaluation
Cyber-resilience assessment
Digital-twin healthcare simulation

Key references include:

Efthimiou O, Seo M, Chalkou K, et al. (2024). Developing clinical prediction models: A step-by-step guide. BMJ.
Collins GS, Moons KGM, Dhiman P, et al. (2024). TRIPOD+AI Statement. BMJ.
Vickers AJ, Elkin EB (2006). Decision curve analysis: A novel method for evaluating prediction models. Medical Decision Making.

Package Status

Current version: 0.1.0

Status: Active development

Platform: R

License: MIT

Citation

If you use CRBHSF in research, please cite:

Khan MZ, Khan AW (2026).

CRBHSF: Cyber-Resilient Bayesian Healthcare Surveillance Framework.

R package version 0.1.0.

Authors

Muhammad Zahir Khan

Independent Researcher in Health Data Science and Statistical Methodology, United Kingdom

Email: zahirstat007@gmail.com

Abdul Wahid Khan

BS Cyber Security Student

Email: B24F0570CYS128@paf-iast.edu.pk

Future Development

Planned extensions include:

Fully Bayesian hierarchical trust estimation
Real-time healthcare surveillance dashboards
Advanced cyber-threat integration
Interactive digital-twin environments
NHS performance monitoring applications
Shiny-based deployment tools

Project Vision

CRBHSF aims to advance healthcare surveillance beyond conventional retrospective monitoring by integrating uncertainty quantification, cyber resilience, organisational trust, operational risk assessment, and deployment-oriented decision support within a unified analytical framework. The package is intended to support researchers, healthcare organisations, policy analysts, and operational decision-makers seeking proactive and resilience-aware performance management strategies.

License

MIT License
