ClimaRep: Estimating climate representativeness

Overview

The ClimaRep package offers tools to analyze the climate representativeness of defined areas, assessing current conditions and evaluating how they are projected to change under future scenarios. Using spatial data, including climate raster layers, the input reference area polygons, and a polygon of the study area, the package quantifies this representativeness and analyzes its transformation.

Key features include: * Filtering raster climate variables to reduce multicollinearity (ClimaRep::vif_filter()). * Estimating current climate representativeness (ClimaRep::mh_rep()). * Estimating changes in climate representativeness under future climate projections (ClimaRep::mh_rep_ch()). * Estimating climate representativeness overlay (ClimaRep::rep_overlay()).

Installation

You can install the development version of ClimaRep from CRAN with:

install.packages("ClimaRep")

Alternatively, you can install the development version from GitHub:

install.packages("devtools")
library(devtools)
devtools::install_github("MarioMingarro/ClimaRep")

Dependencies:

This package relies on other R packages, such as:

terra for efficient handling of raster data (SpatRaster objects).

sf for robust handling of vector data (sf objects).

stats for statistical analysis.

ggplot2 and tidyterra for visualization tasks.

These dependencies will be installed automatically when you install ClimaRep.

Getting started

This section provides a brief example demonstrating the core workflow of the package.

First, load the package:

library(ClimaRep)
library(terra)
library(sf)

Next, prepare the essential input data:

1. Climate variables as an SpatRaster objects with consistent extent, resolution, and Coordinate Reference System (CRS).

2. Polygon as an sf object containing one or more polygons, with a column identifying each reference area (e.g., a ‘name’ or ‘ID’ column).

3. Study area as a single sf object, representing the overall geographical region for analysis and thus the climate space being worked on.

Here is a practical example using simulated data:

The example simulates a pair of reference polygon and assesses their climate representativeness and change, based on Mahalanobis Distance.

This involves creating a simulated climate space within which the analysis is performed.

Generate simulated climate raster layers:

set.seed(2458)
n_cells <- 100 * 100
r_clim_present <- terra::rast(ncols = 100, nrows = 100, nlyrs = 7)
values(r_clim_present) <- c(
  (rowFromCell(r_clim_present, 1:n_cells) * 0.2 + rnorm(n_cells, 0, 3)),
  (rowFromCell(r_clim_present, 1:n_cells) * 0.9 + rnorm(n_cells, 0, 0.2)),
  (colFromCell(r_clim_present, 1:n_cells) * 0.15 + rnorm(n_cells, 0, 2.5)),
  (colFromCell(r_clim_present, 1:n_cells) +
     rowFromCell(r_clim_present, 1:n_cells) * 0.1 + rnorm(n_cells, 0, 4)),
  (colFromCell(r_clim_present, 1:n_cells) /
     rowFromCell(r_clim_present, 1:n_cells) * 0.1 + rnorm(n_cells, 0, 4)),
  (colFromCell(r_clim_present, 1:n_cells) *
     (rowFromCell(r_clim_present, 1:n_cells) + 0.1 + rnorm(n_cells, 0, 4))),
  (colFromCell(r_clim_present, 1:n_cells) *
     (colFromCell(r_clim_present, 1:n_cells) + 0.1 + rnorm(n_cells, 0, 4))))
names(r_clim_present) <- c("varA", "varB", "varC", "varD", "varE", "varF", "varG")
terra::crs(r_clim_present) <- "EPSG:4326"
terra::plot(r_clim_present)

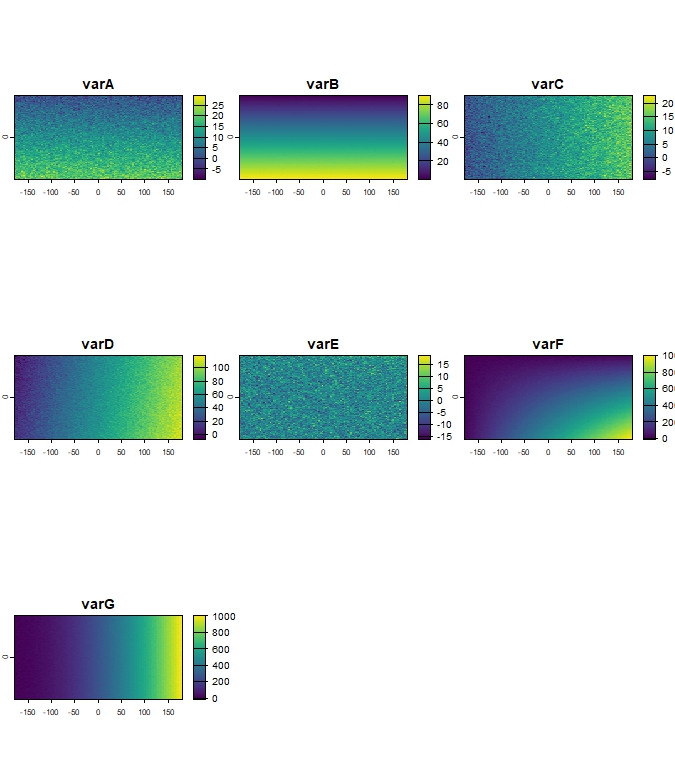

Figure 1: Example of simulated climate raster layers (r_clim_present).

1. Filter climate variables

Multicollinearity among climate variables can affect multivariate analyses.

To handle this, the ClimaRep::vif_filter() function can be used to iteratively remove variables with a Variance Inflation Factor (VIF) above a specified threshold (e.g., th = 5).

The output returns a list object with: - A filtered SpatRaster object containing only the variables that were kept - A comprehensive statistics summary list including: - The name of variables that were kept and those that were excluded. - The original Pearson’s correlation matrix between all initial variables. - The final VIF values for the variables that were retained.

vif_result <- vif_filter(r_clim_present, th = 5)
print(vif_result$summary)

Kept layers: varA, varC, varE, varF, varG
Excluded layers: varD, varB

Pearson correlation matrix of original data:
        varA    varB   varC   varD    varE    varF   varG
varA  1.0000  0.8870 0.0087 0.0938 -0.0745  0.5816 0.0028
varB  0.8870  1.0000 0.0043 0.0997 -0.0769  0.6513 0.0003
varC  0.0087  0.0043 1.0000 0.8523  0.0517  0.5676 0.8341
varD  0.0938  0.0997 0.8523 1.0000  0.0576  0.7077 0.9529
varE -0.0745 -0.0769 0.0517 0.0576  1.0000 -0.0256 0.0653
varF  0.5816  0.6513 0.5676 0.7077 -0.0256  1.0000 0.6305
varG  0.0028  0.0003 0.8341 0.9529  0.0653  0.6305 1.0000

Final VIF values for kept variables:
        VIF
varA 2.2832
varC 3.3473
varE 1.0121
varF 3.8325
varG 4.3545

r_clim_present_filtered <- vif_result$filtered_raster
terra::plot(r_clim_present_filtered)

Figure 2: Example of filtered climate dataset, showing remaining variables (r_clim_present_filtered) after ClimaRep::vif_filter().

2. Estimate climate representativeness

Create example reference polygon (sf) to estimate climate representativeness and a study_area polygon (sf) to set the climate space for analysis:

hex_grid <- sf::st_sf(
  sf::st_make_grid(
    sf::st_as_sf(
      terra::as.polygons(
        terra::ext(r_clim_present))),
  square = FALSE))
sf::st_crs(hex_grid) <- "EPSG:4326"
polygons <- hex_grid[sample(nrow(hex_grid), 2), ]
polygons$name <- c("Pol_1", "Pol_2")
sf::st_crs(polygons) <- sf::st_crs(hex_grid)
study_area_polygon <- sf::st_as_sf(as.polygons(terra::ext(r_clim_present)))
sf::st_crs(study_area_polygon) <- "EPSG:4326"
terra::plot(r_clim_present[[1]])
terra::plot(polygons, add = TRUE, color= "transparent", lwd = 3)
terra::plot(study_area_polygon, add = TRUE, col = "transparent", lwd = 3, border = "red")

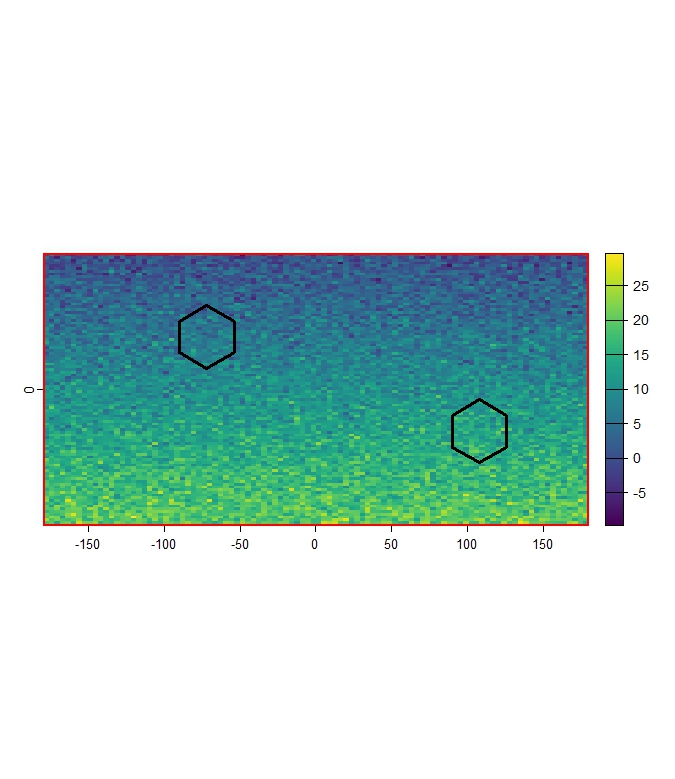

Figure 3: Example of reference polygons (black outline) and study area (red outline) overlaid on r_clim_present_filtered[[1]].

Use ClimaRep::mh_rep() to estimate climate representativeness for each reference polygon.

The function calculates the Mahalanobis Distance from the multivariate centroid of climate conditions within each reference polygon to all cells in the study_area.

Cells within a certain percentile threshold (th) of distances found within the reference polygon are considered representative of the climate of the polygon.

mh_rep(
  polygon = polygons,
  col_name = "name",
  climate_variables = r_clim_present_filtered,
  study_area = study_area_polygon,
  th = 0.95,
  dir_output = tempdir(),
  save_raw = TRUE)

----------------------------
Validating and adjusting Coordinate Reference Systems (CRS)
Starting per-polygon processing:

Processing polygon: pol_1 (1 of 2)

Processing polygon: pol_1 (2 of 2)

All processes were completed

Output files in: C:\Users\AppData\Local\Temp\RtmpY1rKKD
----------------------------

This process generates 3 subfolders within the directory specified by dir_output (e.g., tempdir()).

list.files(tempdir())
 [1] "Charts"             "Mh_Raw"             "Representativeness"

1. The Charts subfolder contains the binary representativeness image files (.jpeg) for each reference polygon.

list.files(file.path(tempdir(), "Charts"))
[1] "pol_1_rep.jpeg" "pol_2_rep.jpeg"

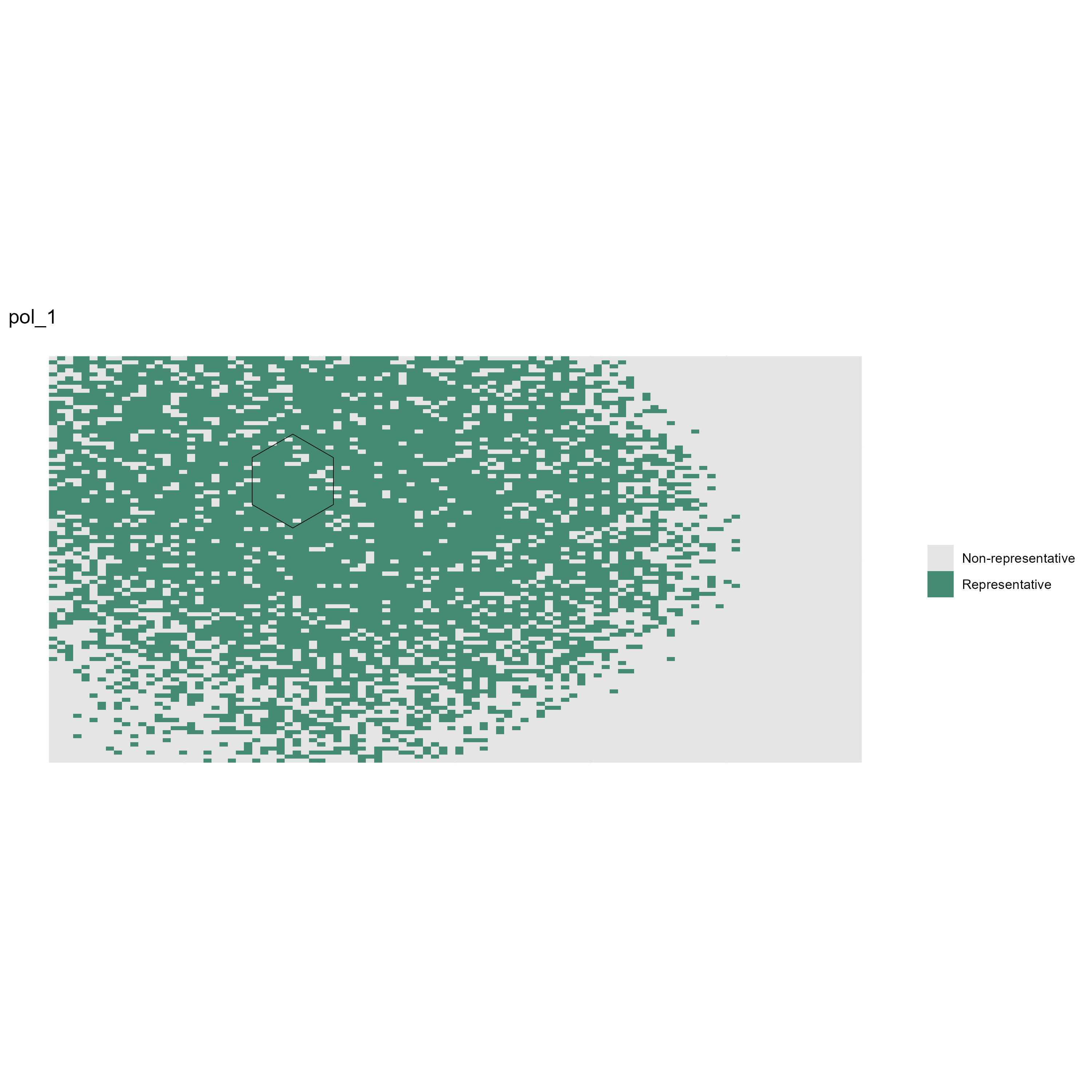

Figure 4: Example of binary representativeness map for Pol_1 (pol_1_rep.jpeg).

2. The Mh_raw subfolder contains the continuous Mahalanobis Distance rasters (.tif) for each reference polygon.

Lower values indicate climates more similar to the reference polygon’s centroid.

mh_rep_raw <- terra::rast(list.files(file.path(tempdir(), "Mh_Raw"),  pattern = "\\.tif$", full.names = TRUE))
terra::plot(mh_rep_raw[[1]])
terra::plot(polygons[1,], add = TRUE, color= "transparent", lwd = 3)

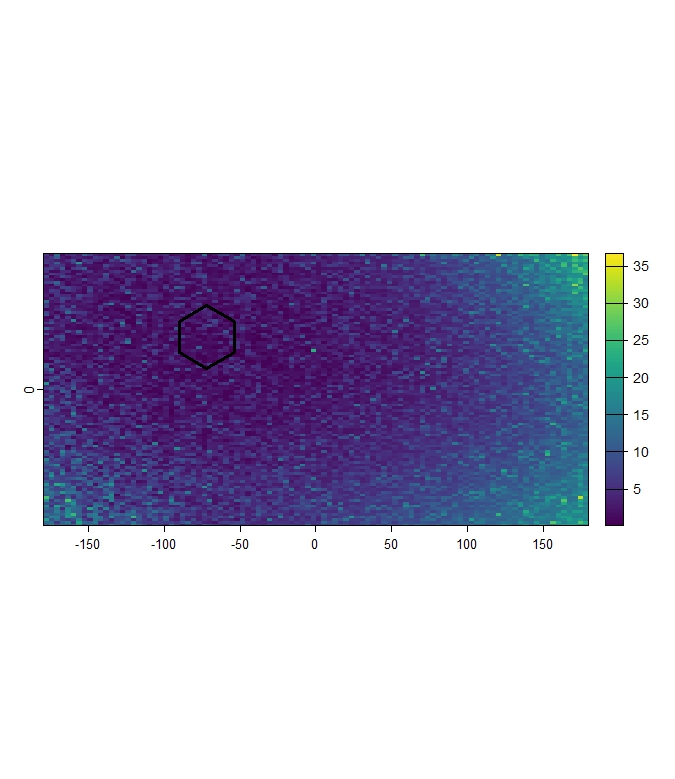

Figure 5: Example of continuous Mahalanobis Distance raster for Pol_1. Darker shades indicate cells with climate conditions more similar to Pol_1.

3. The Representativeness subfolder contains the binary representativeness rasters (.tif) for each reference polygon, based on the threshold (th) applied to the raw Mahalanobis Distance.

Cells are coded 1 for Representative and 0 for Unsuitable.

mh_rep_result <- terra::rast(list.files(file.path(tempdir(), "Representativeness"),  pattern = "\\.tif$", full.names = TRUE))
terra::plot(mh_rep_result[[1]])
terra::plot(polygons[1,], add = TRUE, color= "transparent", lwd = 3)

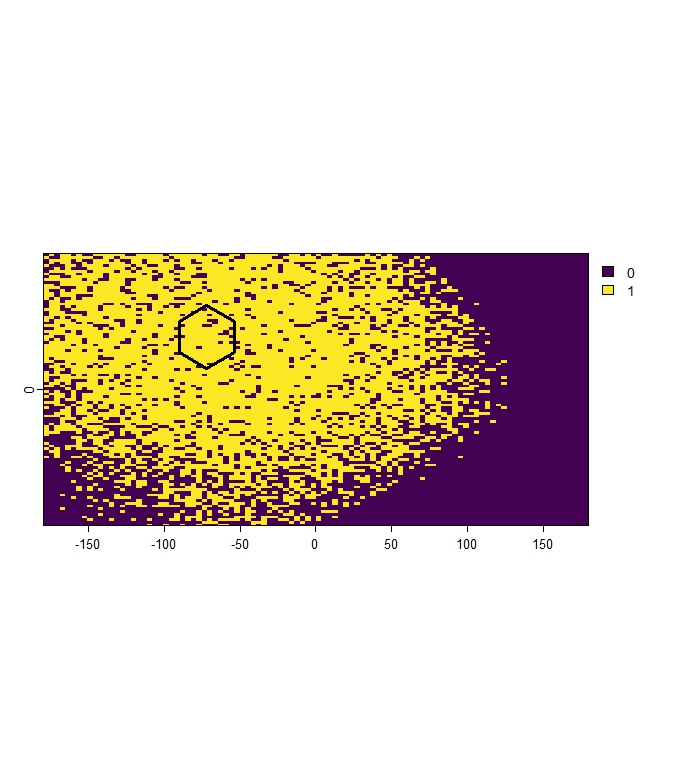

Figure 6: Example of binary representativeness raster for Pol_1, showing cells classified as representetive (value 1).

3. Estimate change in climate representativeness.

To estimate how representativeness changes, a future climate scenario is required.

In this example, a simple virtual future climate conditions (SpatRaster) are created by adding a constant value to the r_clim_present_filtered data:

r_clim_future <- r_clim_present_filtered + 2
names(r_clim_future) <- names(r_clim_present_filtered)
terra::crs(r_clim_future) <- terra::crs(r_clim_present_filtered)
terra::plot(r_clim_future)

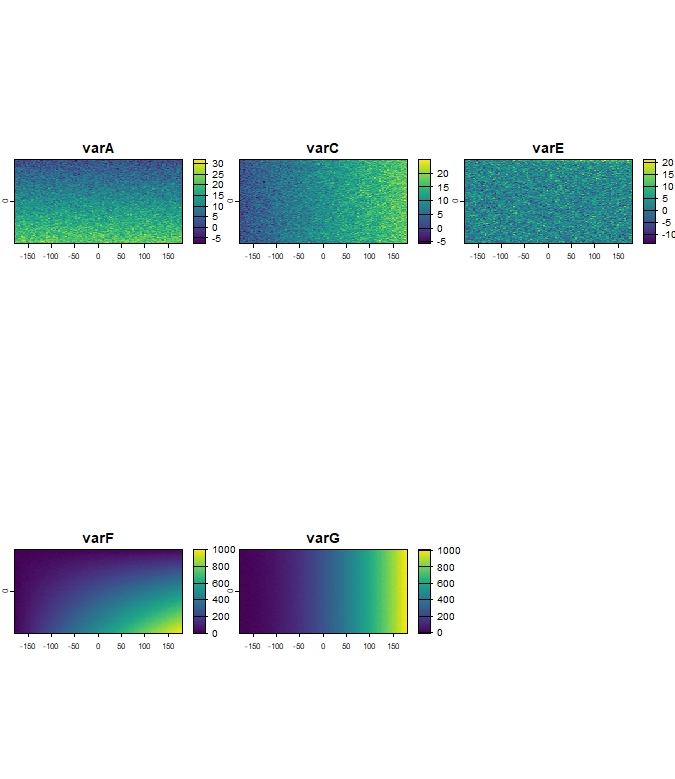

Figure 7: Example of simulated future climate variables (r_clim_future).

Use ClimaRep::mh_rep_ch() to compare representativeness of a reference polygon, between the present_climate_variables and future_climate_variables.

This function calculates representativeness for each reference polygon in both scenarios and determines cells where conditions:

• Stable - Climate conditions that exist in both the current and future scenarios.
• Lost - Climate conditions that exist now but are no longer present in the future.
• Novel - Climate conditions that are new and only appear in the future scenario.

mh_rep_ch(
polygon = polygons,
col_name = "name",
present_climate_variables = r_clim_present_filtered,
future_climate_variables = r_clim_future,
study_area = study_area_polygon,
th = 0.95,
model = "MODEL",
year = "2070",
dir_output = tempdir(),
save_raw = TRUE)

Validating and adjusting Coordinate Reference Systems (CRS).
Starting per-polygon processing:

Processing polygon: pol_1 (1 of 2)

Processing polygon: pol_2 (2 of 2)

All processes were completed

Output files in:  C:\Users\AppData\Local\Temp\RtmpY1rKKD

This process generates several subfolders within the directory specified by dir_output.

list.files(tempdir())
 [1] "Change"             "Charts"             "Mh_Raw_Pre"             "Mh_Raw_Fut"

The Change subfolder contains binary rasters (.tif) for each reference polygon, indicating the category of change.

• 0 - Unsuitable
• 1 - Stable
• 2 - Lost
• 3 - Novel

change_result <- terra::rast(list.files(file.path(tempdir(), "Change"),  pattern = "\\.tif$", full.names = TRUE))
terra::plot(change_result[[2]])
terra::plot(polygons[2,], add = TRUE, color= "transparent", lwd = 3)

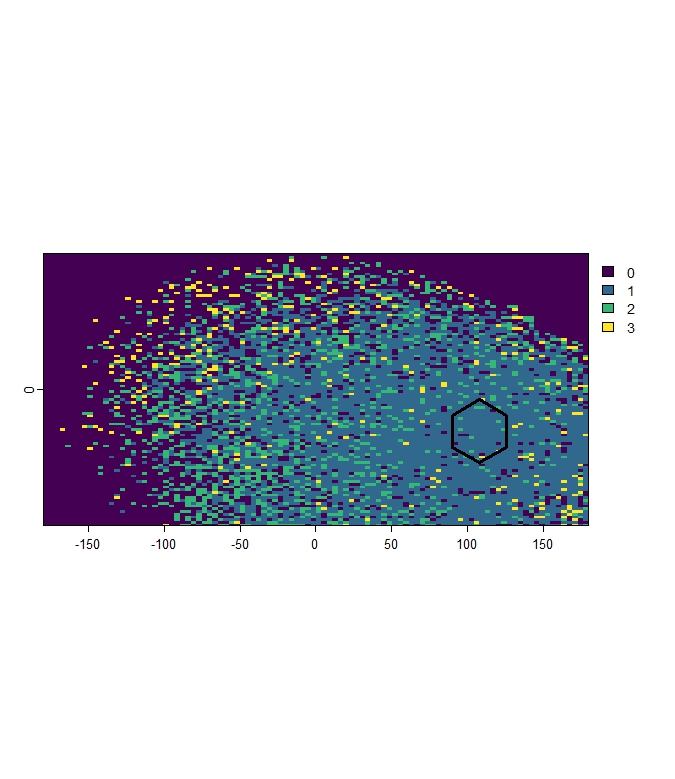

Figure 8: Example of change in representativeness for Pol_2, showing areas Unsuitable (0), Stable (1), Lost (2), Novel (3).

The Charts subfolder is updated or regenerated and contains summary map files (.jpeg) visualizing the change analysis results for each reference polygon.

list.files(file.path(tempdir(), "Charts"))
[1] "pol_1_rep_change.jpeg" "pol_2_rep_change.jpeg"

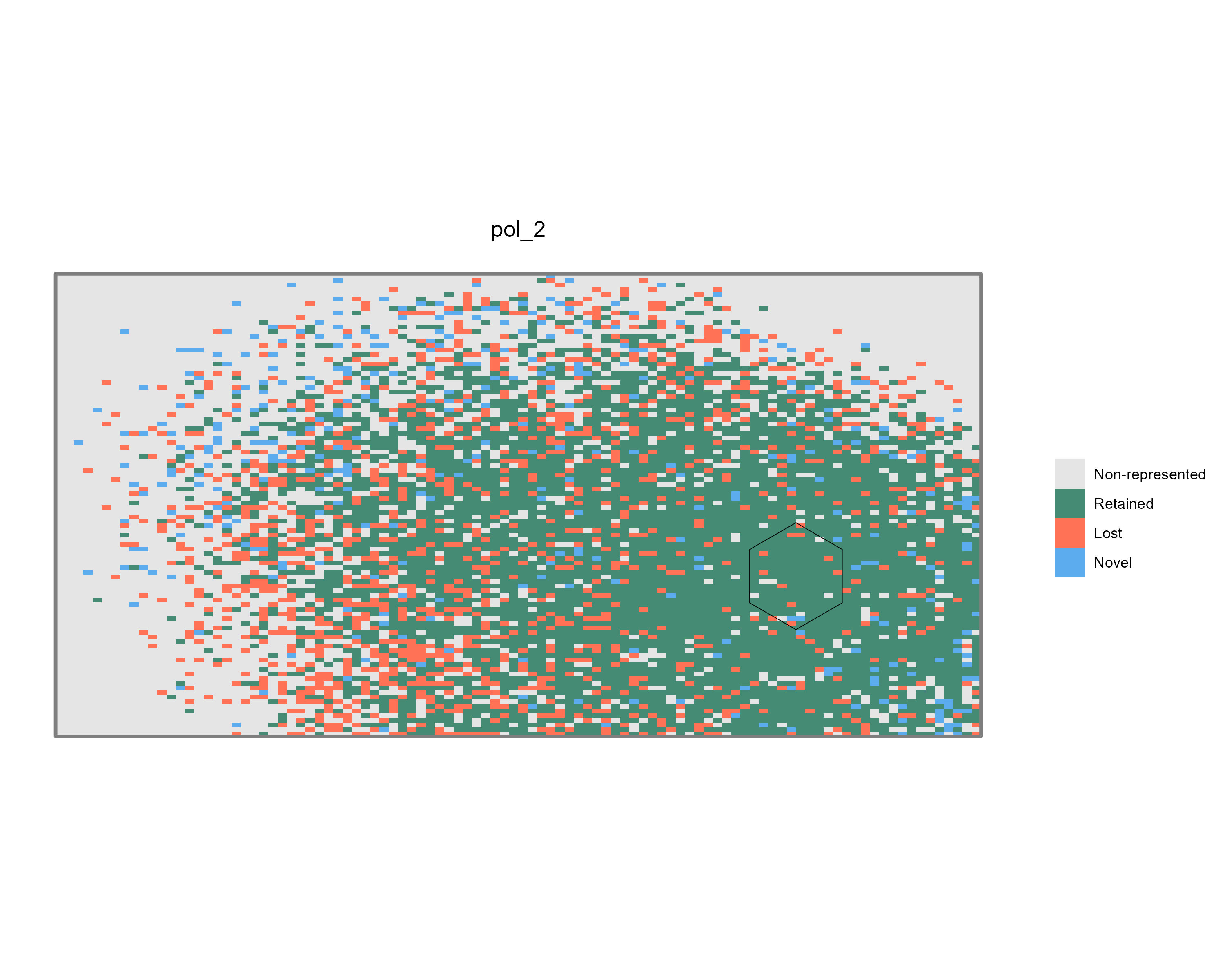

Figure 9: Example of summary maps illustrating climate representativeness change for Pol_2 (pol_2_rep_change.jpeg).

The Mh_Raw_Pre subfolder contains the continuous Mahalanobis Distance rasters (.tif) for the present scenario, calculated within the study_area extent relative to the climate conditions within each reference polygon.

Mh_raw_Pre_result <- terra::rast(list.files(file.path(tempdir(), "Mh_Raw_Pre"),  pattern = "\\.tif$", full.names = TRUE))
terra::plot(Mh_raw_Pre_result[[2]])
terra::plot(polygons[2,], add = TRUE, color= "transparent", lwd = 3)

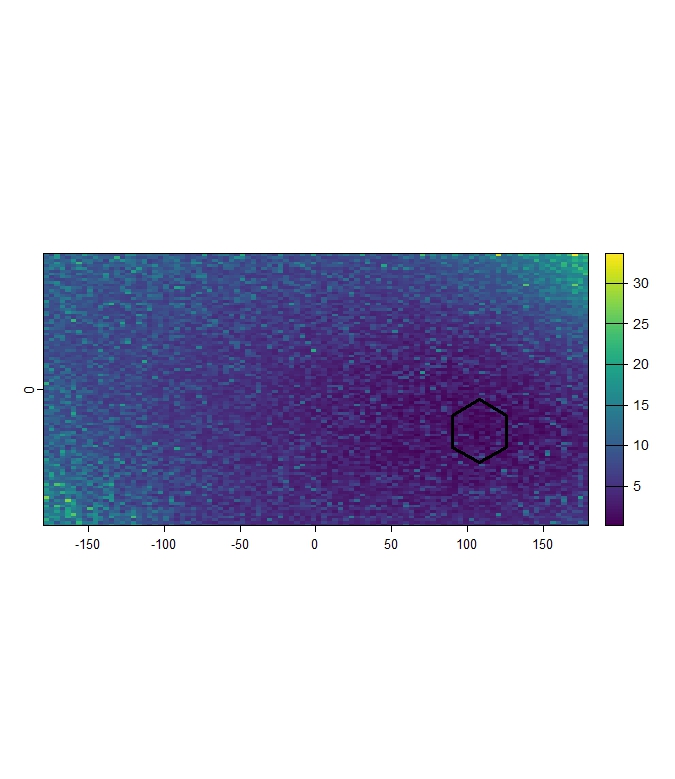

Figure 10: Example continuous present Mahalanobis Distance raster (within study area) for Pol_2.

The Mh_Raw_Fut subfolder contains the continuous raw Mahalanobis Distance rasters (.tif) for the future scenario, calculated within the study_area extent relative to the climate conditions within each reference polygon.

Mh_raw_Fut_result <- terra::rast(list.files(file.path(tempdir(), "Mh_Raw_Fut"),  pattern = "\\.tif$", full.names = TRUE))
terra::plot(Mh_raw_Fut_result[[2]])
terra::plot(polygons[2,], add = TRUE, color= "transparent", lwd = 3)

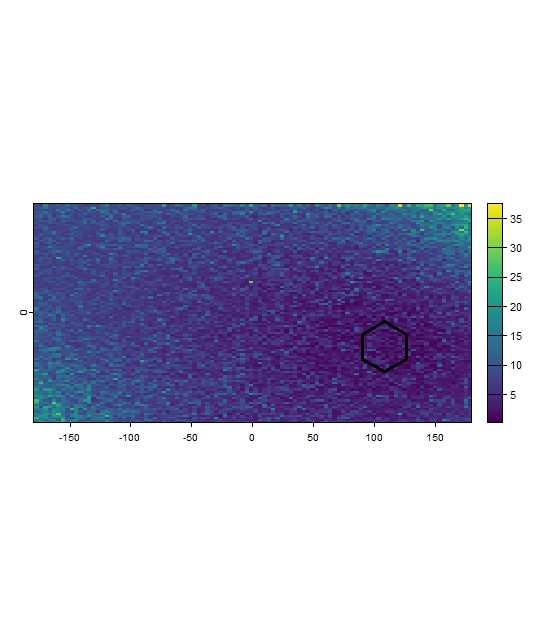

Figure 11: Example continuous future Mahalanobis Distance raster for Pol_2.

4. Estimate environmental representativeness overlay.

After obtaining the representativeness (ClimaRep::mh_rep()), or change (ClimaRep::mh_rep_ch()), rasters for multiple reference polygons, it is possible to combine them and to identify where the different types of changes (representative/stable, lost, novel) are accumulated.

The ClimaRep::rep_overlay() function counting, for each cell, how many of the input rasters had a specific category value at that location.

ClimaRep_overlay <- rep_overlay(folder_path = file.path(tempdir(), "Change"),
                               output_dir = file.path(tempdir(), "ClimaRep_overlay"))

Processing 2 classification rasters from C:\Users\AppData\Local\Temp\RtmpY1rKKD/Change
Calculating counts for category: Lost (value = 2)
Calculating counts for category: Stable (value = 1)
Calculating counts for category: Novel (value = 3)
All processes were completed
Output files saved in:  C:\Users\AppData\Local\Temp\RtmpY1rKKD/ClimaRep_overlay

terra::plotRGB(ClimaRep_overlay, stretch = "lin")

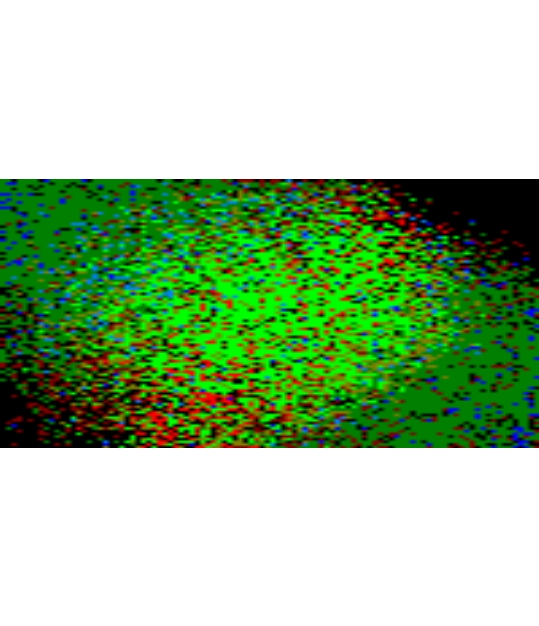

Figure 12: Visualisation of accumulated Lost (R), Stable (G) and Novel (B) cells for both reference polygon.

terra::plot(ClimaRep_overlay)

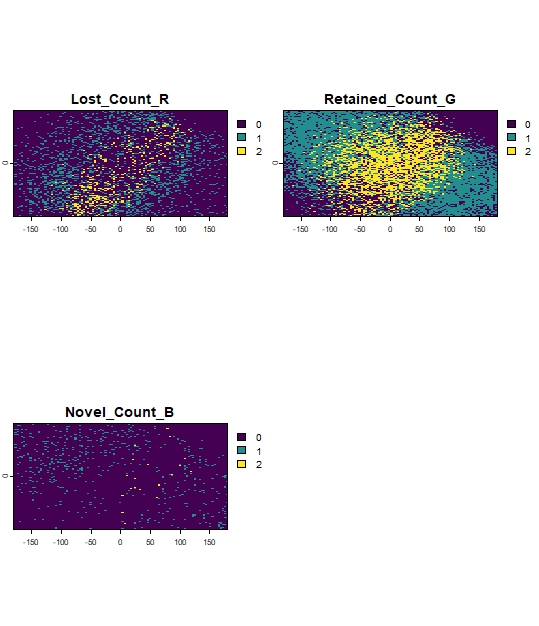

Figure 13: Example of accumulate Lost (1), Stable (2) or Novel (3) cells for both reference polygon.

Functions reference

ClimaRep::vif_filter()

This function iteratively filters layers from a SpatRaster object by removing the one with the highest Variance Inflation Factor (VIF) that exceeds a specified threshold (th).

ClimaRep::vif_filter(x, th)

x: A SpatRaster object with climate layers.

th: The VIF threshold.

ClimaRep::mh_rep()

This function calculates climate representativeness for each reference polygon within a defined area.

Representativeness is assessed by comparing the multivariate climate conditions of each cell, of the reference climate space (climate_variables), with the climate conditions within each specific reference polygon. The CRS of polygon will be used as the reference system.

ClimaRep::mh_rep(polygon, col_name, climate_variables, th, dir_output, save_raw)

polygon: An sf object containing the input polygon(s) for which representativeness will be assessed.

col_name: The name of the column in polygon that contains unique identifiers for each reference polygon.

climate_variables: A SpatRaster object with the climate layers (pre-filtered using vif_filter).

study_area: An sf object defining the overall study region.

th: The threshold for determining representativeness (e.g., 0.9 for the 90th percentile of distances within the reference polygon).

dir_output: Path to the directory where output rasters and charts will be saved. The directory will be created if it doesn’t exist.

save_raw: Logical. If TRUE, saves the continuous Mahalanobis Distance raster (Mh_raw) for each reference polygon.

ClimaRep::mh_rep_ch()

This function calculates climate representativeness for each reference polygon across two time periods (present and future) within a defined area.

The function identifies areas of climate representativeness Stable, Lost, or Novel.

Representativeness change is assessed by comparing the multivariate climate conditions of each cell, of the reference climate space (present_climate_variables and future_climate_variables), with the climate conditions within each specific reference polygon. The CRS of polygon will be used as the reference system.

ClimaRep::mh_rep_ch(polygon, col_name, present_climate_variables, future_climate_variables, study_area, th, model, year, dir_output, save_raw)

polygon: An sf object containing the input polygon/s for which representativeness change will be assessed.

col_name: The name of the column in polygon that contains unique identifiers for each reference polygon.

present_climate_variables: A SpatRaster object with the present climate layers (pre-filtered using vif_filter).

future_climate_variables: A SpatRaster object with the future climate layers (usually same as present_climate_variables).

study_area: An sf object defining the overall study region.

th: The percentile threshold for determining representativeness in both scenarios (e.g., 0.9 for the 90th percentile of distances within the reference polygon).

model: Character string identifying the climate model (e.g., “MIROC6”). This is used in output filenames for clear identification.

year: Character string identifying the future period (e.g., “2050”). This is used in output filenames for clear identification.

dir_output: Path to the directory where output rasters and charts will be saved. The directory will be created if it doesn’t exist.

save_raw: Logical. If TRUE, saves the continuous Mahalanobis Distance rasters (Mh_raw) for both present and future scenarios within the study area extent.

ClimaRep::rep_overlay()

Combines multiple single-layer rasters (tif), outputs from ClimaRep::mh_rep() or ClimaRep::mh_rep_ch() for different input polygons, into a multi-layered SpatRaster.

This function handles inputs from both ClimaRep::mh_rep() (which contains representetive and unsuitable cells) and ClimaRep::mh_rep_ch() (which includes Stable, Lost, and Novel cells). The output layers consistently represent the accumulation of each input.

ClimaRep::rep_overlay(folder_path, dir_output)

folder_path: Character string. Path to the directory containing the input single-layer GeoTIFF classification rasters (outputs from ClimaRep::mh_rep_ch() or ClimaRep::mh_rep()). dir_output: Path to the directory where output rasters will be saved. The directory will be created if it doesn’t exist.

Citation

If the package itself is formally cited (e.g., on CRAN), please include the package citation as well:

Mingarro & Lobo (2021) Connecting protected areas in the Iberian peninsula to facilitate climate change tracking. Environmental Conservation, 48(3): 182-191. doi:10.1017/S037689292100014X

Mingarro, Aguilera-Benavente & Lobo (2020) A methodology to assess the future connectivity of protected areas by combining climatic representativeness and land-cover change simulations: the case of the Guadarrama National Park (Madrid, Spain). Environmental Planning and Management, 64(4): 734–753. doi.org/10.1080/09640568.2020.1782859

Mingarro & Lobo (2018) Environmental representativeness and the role of emitter and recipient areas in the future trajectory of a protected area under climate change. Animal Biodiversity and Conservation, 41(2): 333–344. doi.org/10.32800/abc.2018.41.0333

Farber & Kadmon (2003) Assessment of alternative approaches for bioclimatic modeling with special emphasis on the Mahalanobis Distance. Ecological Modelling, 160: 115–130. doi:10.1016/S0304-3800(02)00327-7

Getting help

If you encounter issues or have questions, please contact.

License

MIT, GPL-3

These binaries (installable software) and packages are in development.
They may not be fully stable and should be used with caution. We make no claims about them.
