Cognitive and Brain Health Laboratory
All the post-processing (e.g., CIFTItoFC) and data prep
(e.g., extract_links) functions have been removed from this
package. These functions are now moved into a new R package called MRIpostproc
The FCtools package contains a collection of in-house R functions for post-processing, analyzing and visualizing brain connectivity data (see here for the full list of functions). This readme will show you how to generate connectograms and chord diagrams to illustrate your brain connectivity-related results, both SC and FC. Currently, in our neuroimaging database, we have connectivity data that are derived from different atlas parcellation schemes, as a result, the lengths of the input vectors (N x N FC/SC matrix stringed out into a single vector) are contingent upon the atlas parcellation schemes used.
If you have not previously installed this package:
install.packages("pak")
pak::pak("CogBrainHealthLab/FCtools")library(FCtools)

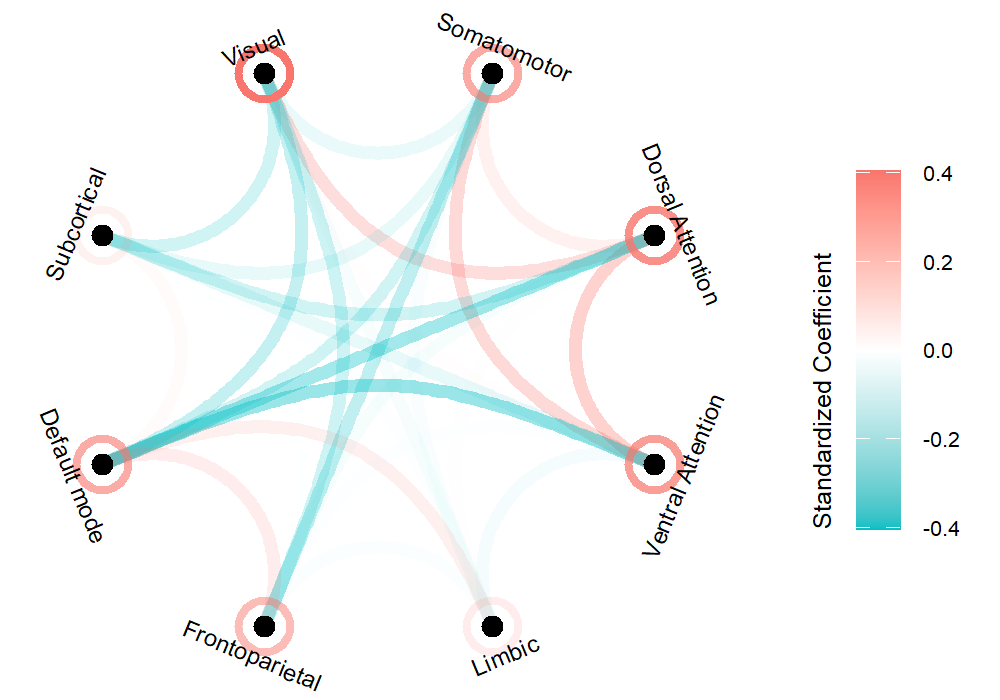

vizNetConnectogram(colMeans(demomat))
library(FCtools)

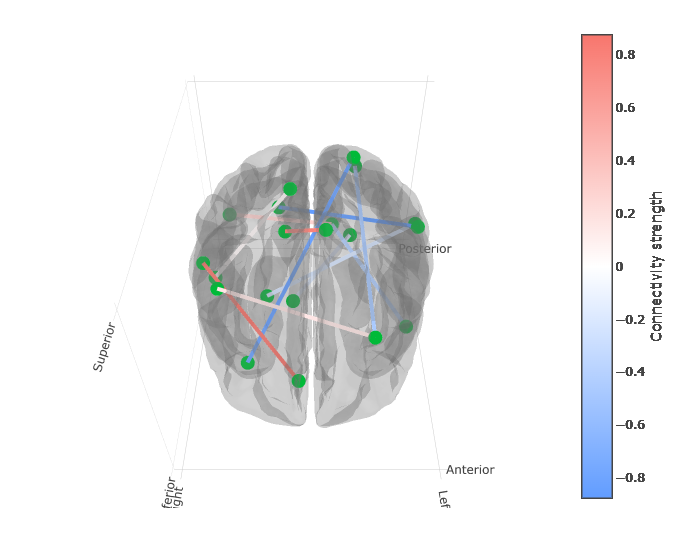

mask=sample(c(1,0), 7021, replace = TRUE, prob = c(0.001, 0.999))
data=runif(7021,min = -1,max=1)*mask
vizGlassbrain(data,orientation_labels = T)
A. Plotting the connectogram
The vizConnectogram() function can take input vectors of
the following lengths:
30135 — derived from 246x246 FC matrices generated using the Brainnetome atlas
23871 — derived from 219x219 FC matrices generated using the Schaefer-200 atlas + 19 subcortical regions from the freesurfer subcortical segmentations. This is typically used in the NIMH datasets
7021 — derived from 119x119 FC matrices generated using the Schaefer-100 atlas + 19 subcortical regions from the freesurfer subcortical segmentations. This is typically used in the ABCD dataset
4005 — derived from 90x90 SC matrices generated using the AAL-90 atlas
The number of nodes to display in the connectogram plot will be automatically determined from the length of the input vector.
For the first example, we will generate a sparse vector of 23871 random numbers ranging from -1 to 1 and use this vector as the input vector to simulate the results derived from running the network-based statistics on the 219x219 FC matrices. The vector is ‘sparse’ because it contains very few non-zero values. You will see why this is important later
results=sample(c(1,0, -1), 23871, replace = TRUE, prob = c(0.001, 0.998,0.001))In the above line, the frequency of the numbers
c(1,0, -1) appearing in the vector corresponds to the
specified probabilities prob = c(0.001, 0.998,0.001). Next,
we will call upon the vizConnectogram() function from the
cloud, and run it on the results vector

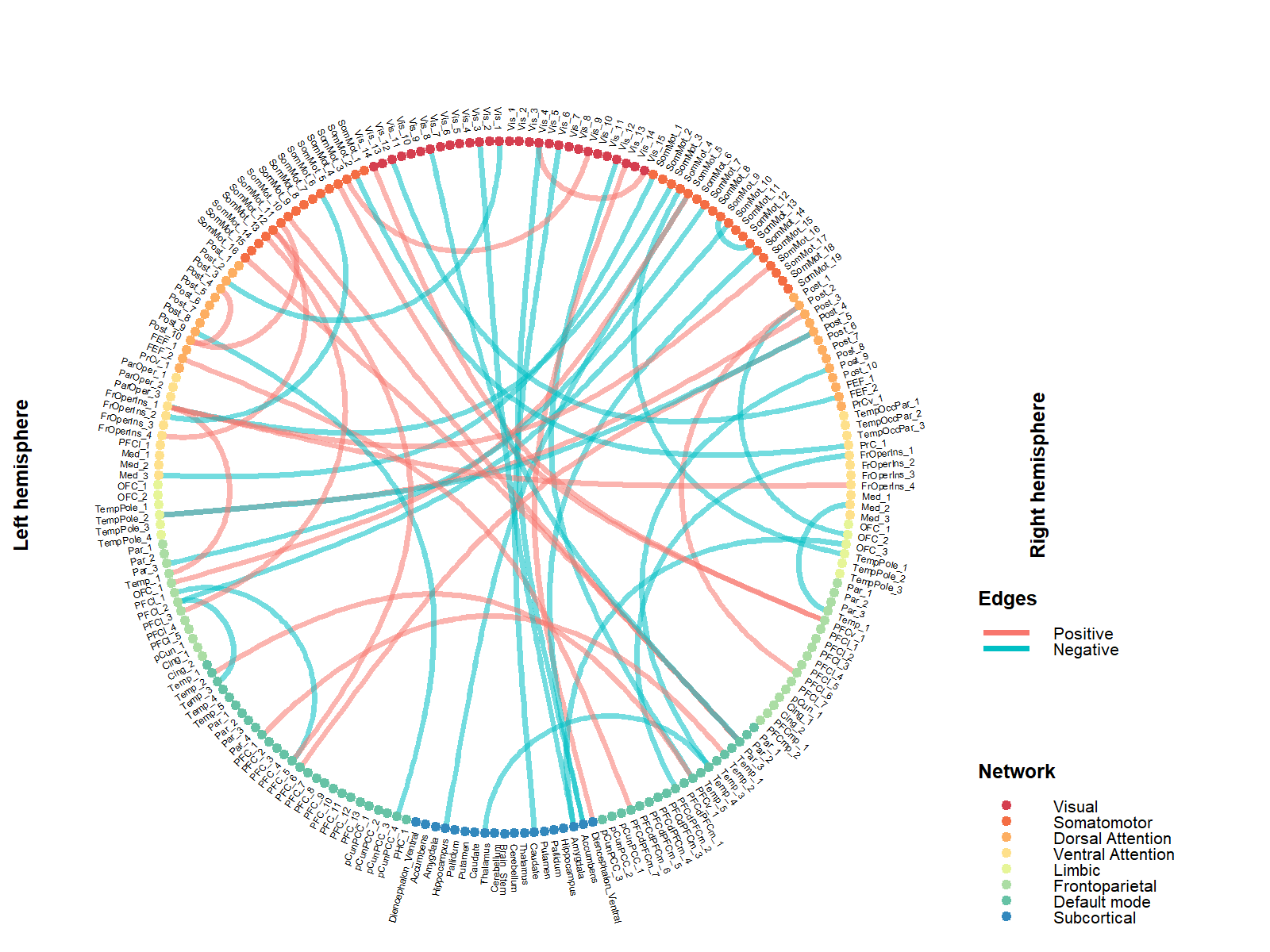

vizConnectogram(data=results, filename="FC_219.png")The above code will output the following FC_219.png
image in your working directory. Do note that the distribution of nodes
in the Schaefer-100 and Schaefer-200 parcellation schemes is not
symmetrical across both hemispheres.
B. Customizing optional parameters
The vizConnectogram() allows you to customize the
following visual parameters
hot : color code or name for the color of positive
edges
cold : color code or name for the color of positive
edges
edgethickness: thickness of the edge links; default
thickness is set to 0.8
colorscheme: a vector of 8 color codes/names for all
FC matrices or 7 color codes/names for SC matrices
In the next example, we will simulate results derived from the brainnetome atlas (246x246 FC matrices; length of input vector=30135) and also play around with the color-related parameters,
results=sample(c(1,0, -1), 30135, replace = TRUE, prob = c(0.001, 0.998,0.001))
## to generate color codes for the color scheme
library(paletteer)
colorcodes=c(paletteer_c("ggthemes::Sunset-Sunrise Diverging", 8))
vizConnectogram(data=results, filename="FC_246.png", hot="red", cold="blue", colorscheme=colorcodes)The above code will output the following FC_246.png
image in your working directory.
As you can see
it can be a little difficult to differentiate which network the nodes
belong to because the colors are too similar. So do pay attention to the
choice of colors if you were to adjust the colorscheme
parameter
C. Excessive cluttering
The connectograms are ideal for visualizing sparse FC/SC matrices. If there are too many non-zero values in these matrices, the connectogram can become too cluttered and consequently difficult to interpret. Here’s an example:

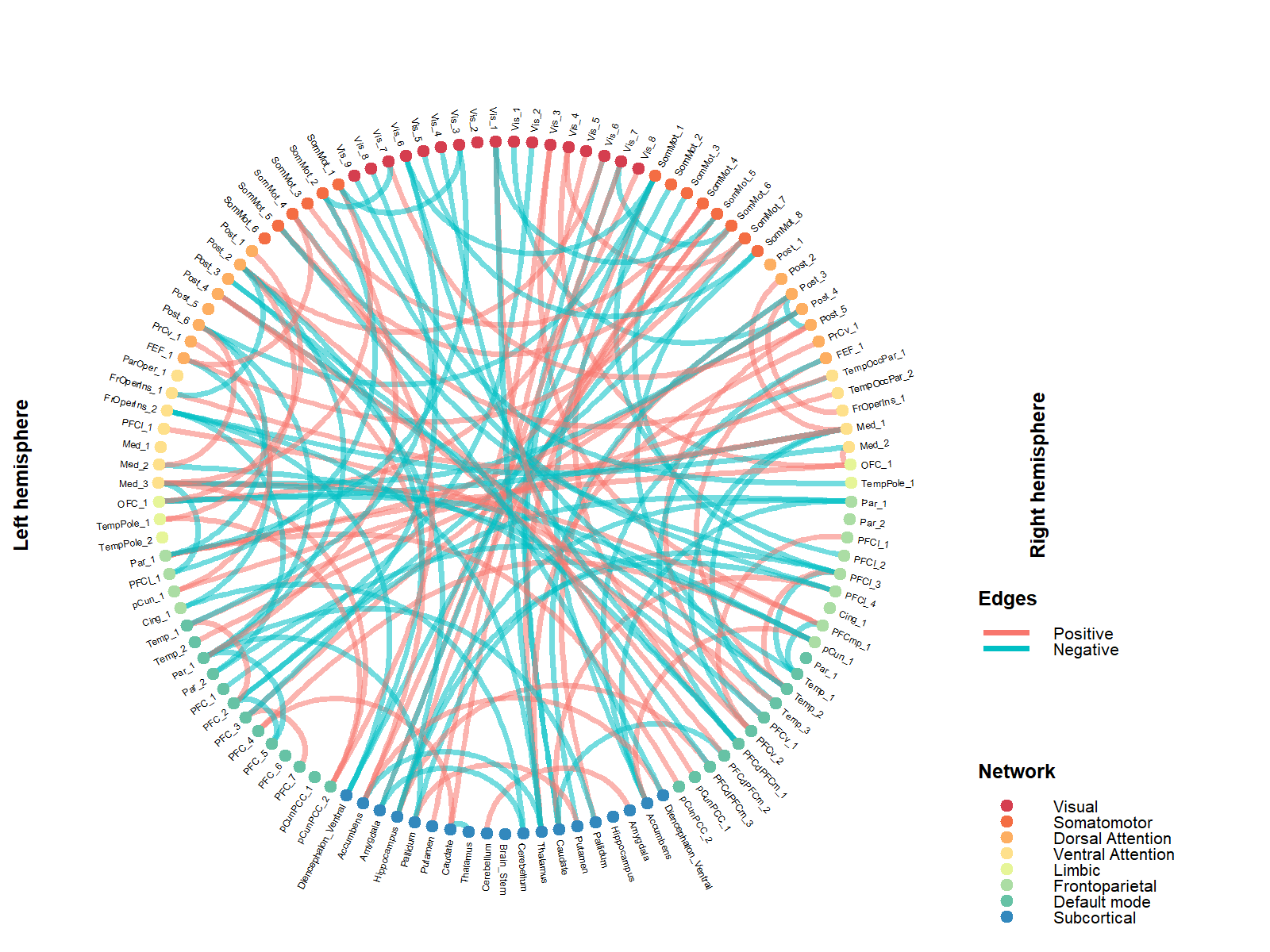

results=sample(c(1,0, -1), 7021, replace = TRUE, prob = c(0.01, 0.98,0.01))
vizConnectogram(data=results, filename="FC_119.png")
You can make it look a little less cluttered by reducing the
thickness of the edge links. Note that the default value is
0.8

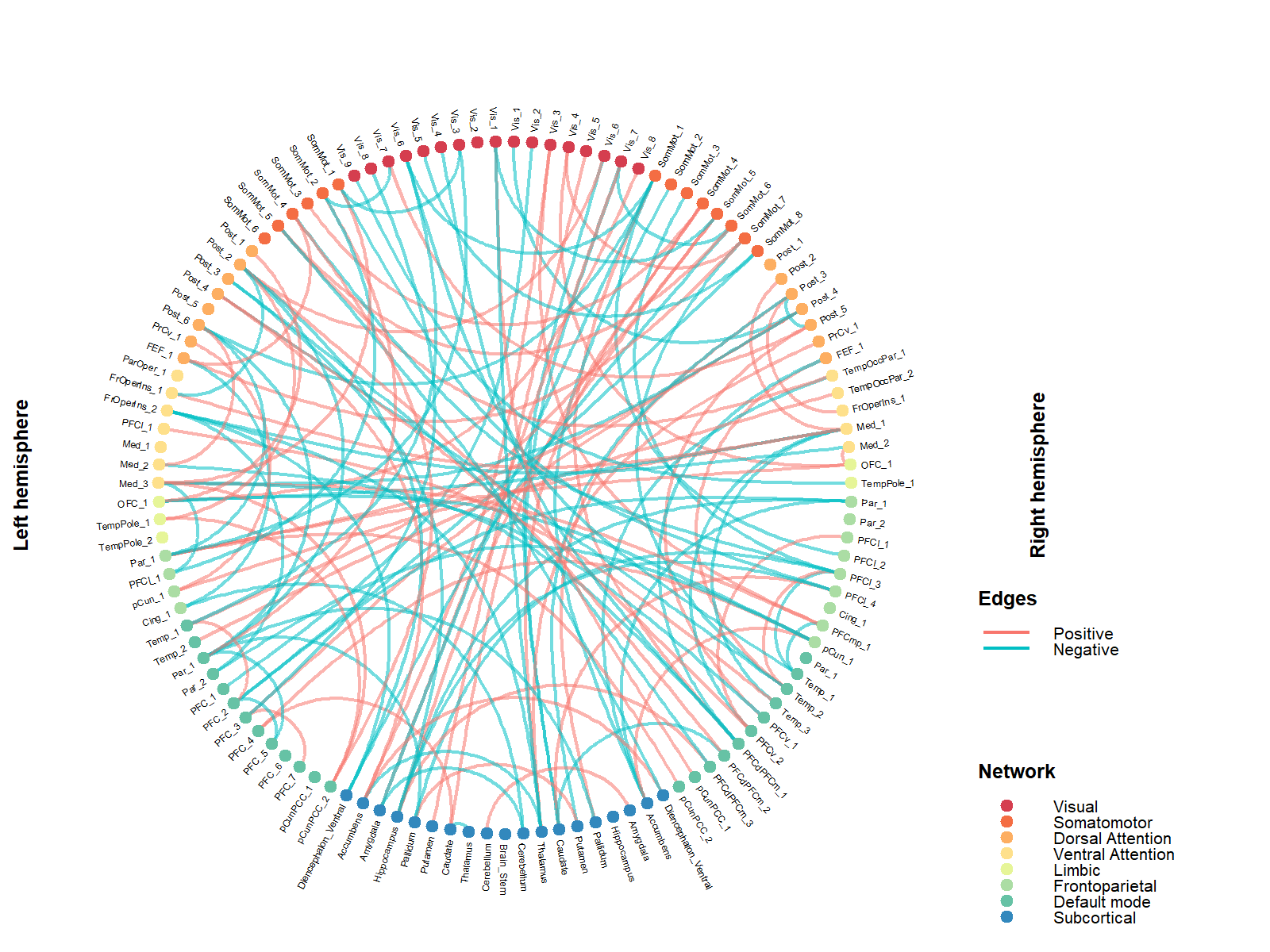

vizConnectogram(data=results, filename="4xFC_119_thinedges.png",edgethickness = 0.5)
This will be very
effective if the edges are nicely bundled up, which isn’t the case for
the above. So if you tried to reduce the thickness of the edge links and
it doesn’t help much, then perhaps you should use a chord diagram
instead
C. Multiple connectograms

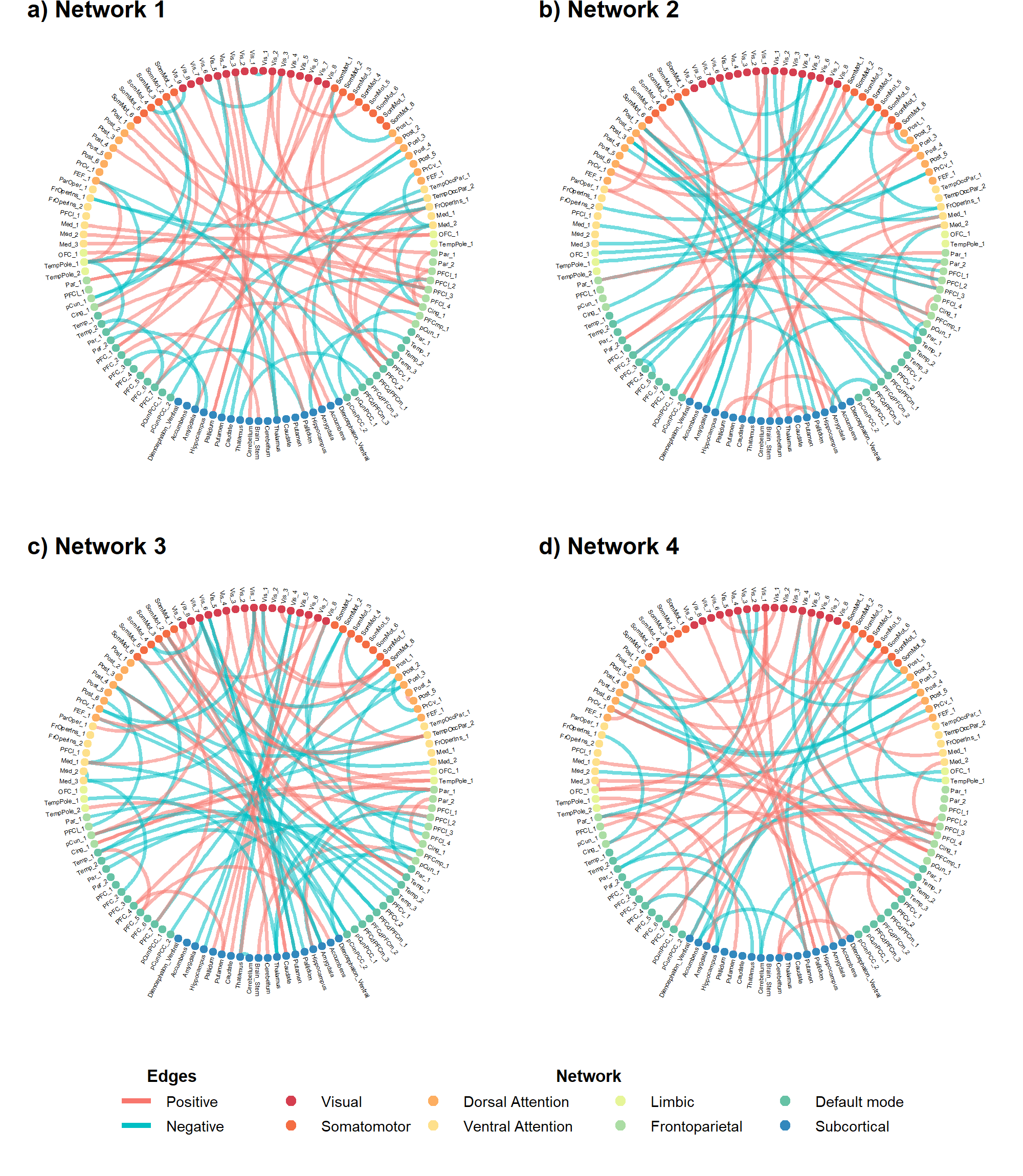

If necessary, you can plot out multiple connectograms and fit them nicely in a grid format.
network1=sample(c(1,0, -1), 7021, replace = TRUE, prob = c(0.005,0.99,0.005))
network2=sample(c(1,0, -1), 7021, replace = TRUE, prob =c(0.005, 0.99,0.005))
network3=sample(c(1,0, -1), 7021, replace = TRUE, prob = c(0.005, 0.99,0.005))
network4=sample(c(1,0, -1), 7021, replace = TRUE, prob = c(0.005, 0.99,0.005))
vizConnectogram(data=rbind(network1,network2,network3,network4),
filename="4xFC_119.png",
ncol=2,
nrow=2,
title=c("a) Network 1","b) Network 2","c) Network 3","d) Network 4"))
The vizChord() function can take input vectors of
various lengths as described in the connectogram section and
additionally, vectors of 68 values — derived from 12x12 functional
network matrices generated using the Gordon atlas. The 12x12
functional network matrices are only available in the ABCD dataset.
A. Plotting the chord diagram
Here’s a basic use of the vizChord() function on an
input vector of 7021 non-zero values ranging from -1 to 1.

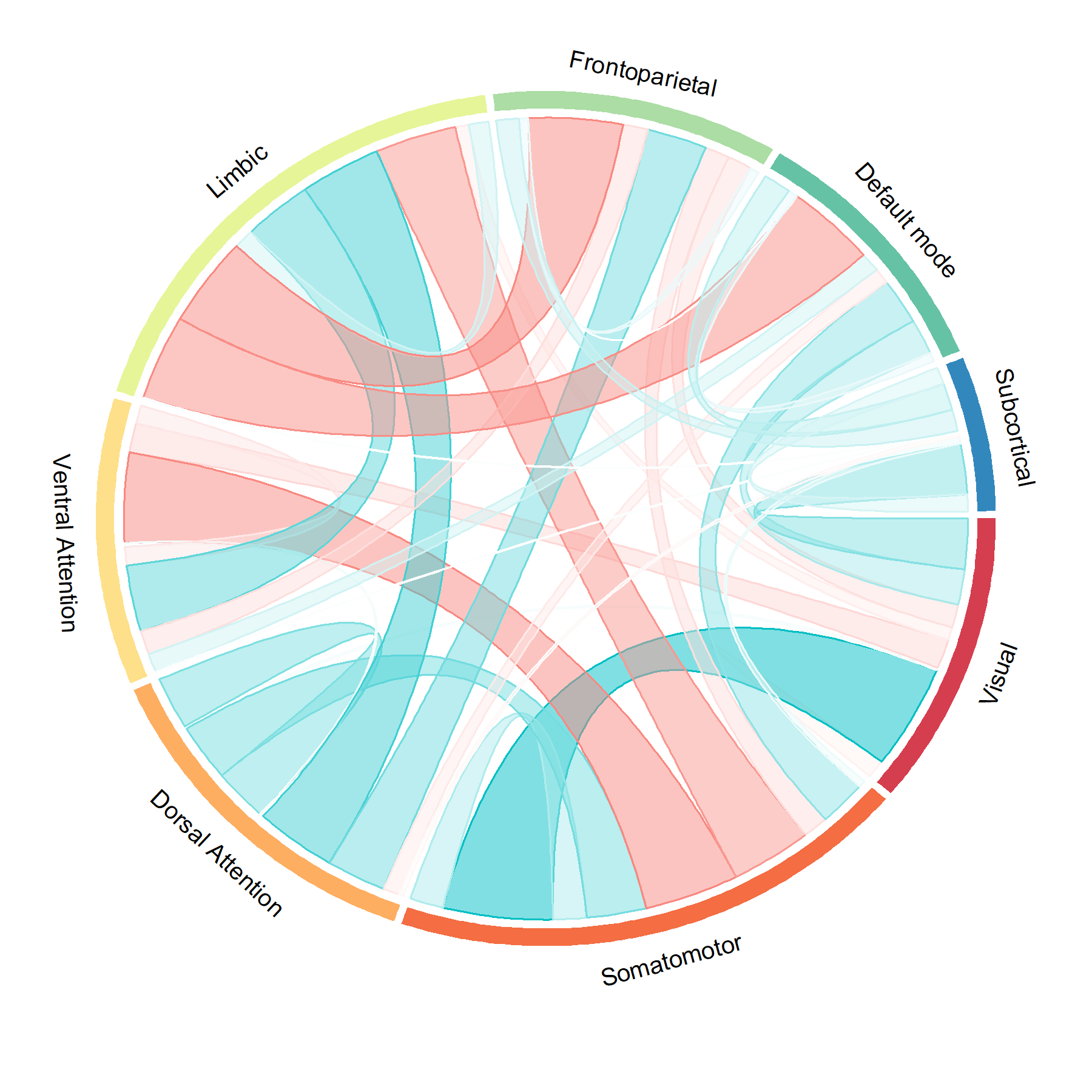

results=runif(7021, min = -1, max = 1)
vizChord(data=results, filename="FC_chord119.png")
Just like the vizConnectogram() function, you can
customize the hot and cold colors, as well as
the colors for the networks. Note that if your input vector has a length
of 78 (derived from the 12x12 functional network matrices), you will
need to specify 12 colors (because 12 networks) for the
colorscheme.
B. Customizing optional parameters

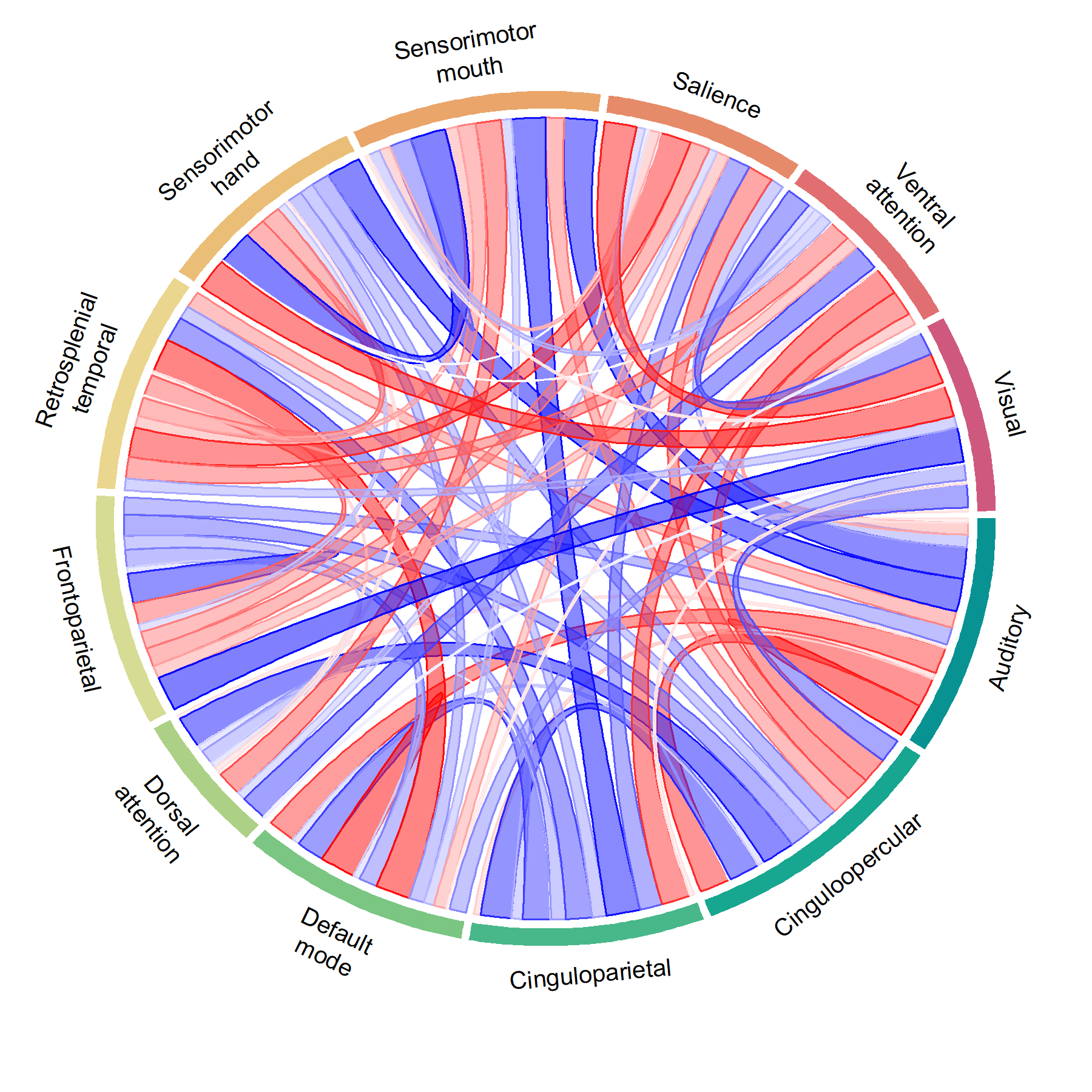

results=runif(78, min = -1, max = 1)
## to generate color codes for the color scheme
library(paletteer)
colorcodes=c(paletteer_c("grDevices::Temps", 12))
vizChord(data=results, filename="FC_chord12.png", hot="red", cold="blue", colorscheme = colorcodes)
C. Multiple connectograms

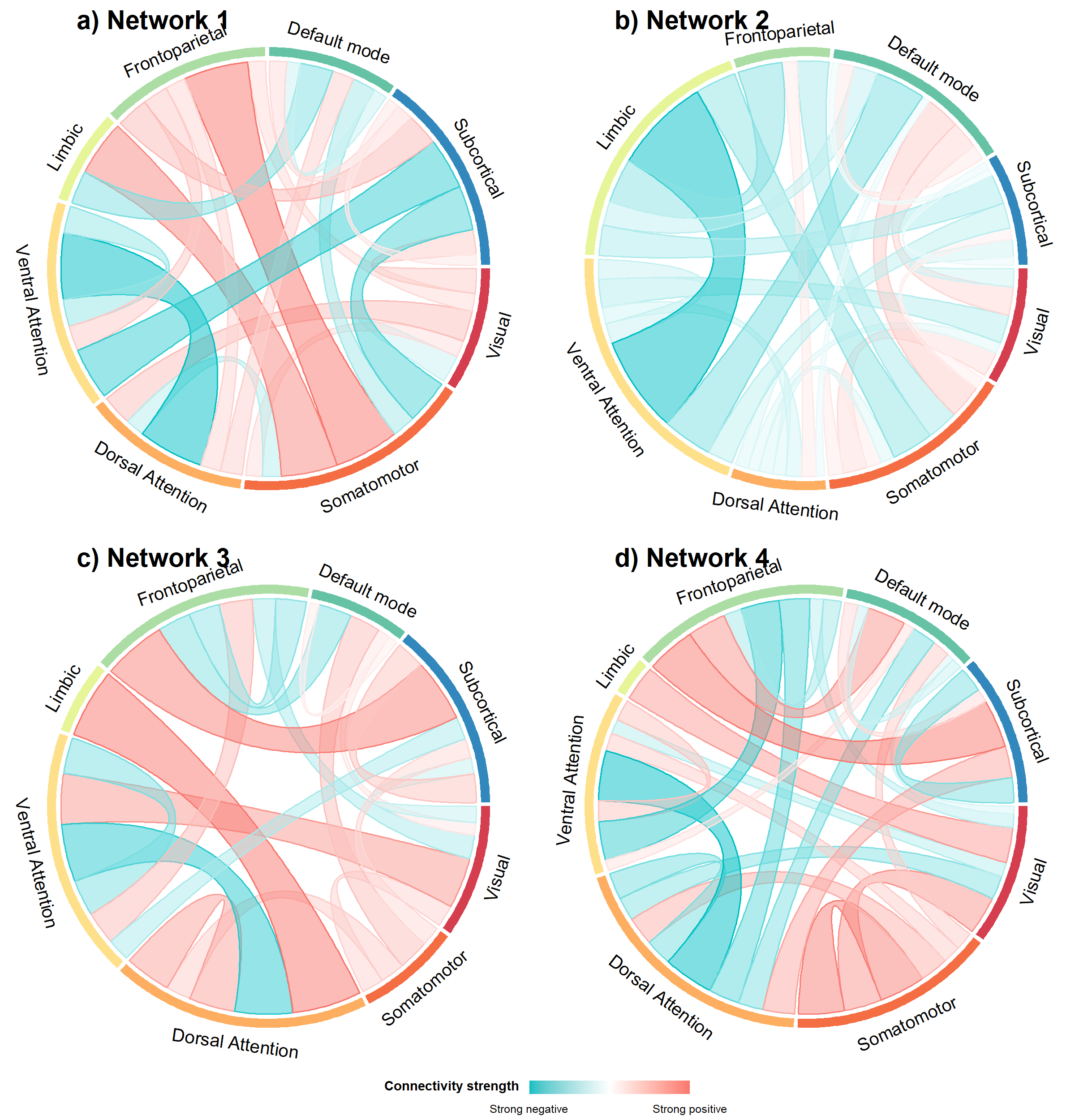

Just as above, you can plot out multiple chord diagrams and fit them nicely in a grid format.
network1=sample(c(1,0, -1), 7021, replace = TRUE, prob = c(0.005,0.99,0.005))
network2=sample(c(1,0, -1), 7021, replace = TRUE, prob =c(0.005, 0.99,0.005))
network3=sample(c(1,0, -1), 7021, replace = TRUE, prob = c(0.005, 0.99,0.005))
network4=sample(c(1,0, -1), 7021, replace = TRUE, prob = c(0.005, 0.99,0.005))
vizChord(data=rbind(network1,network2,network3,network4),
filename="4xFCchord_119.png",
ncol=2,
nrow=2,
title=c("a) Network 1","b) Network 2","c) Network 3","d) Network 4"))
The connectogram and chord diagram cannot be use to visualize edge-level statistics for all edges in the connectome. Instead a heatmap should be used

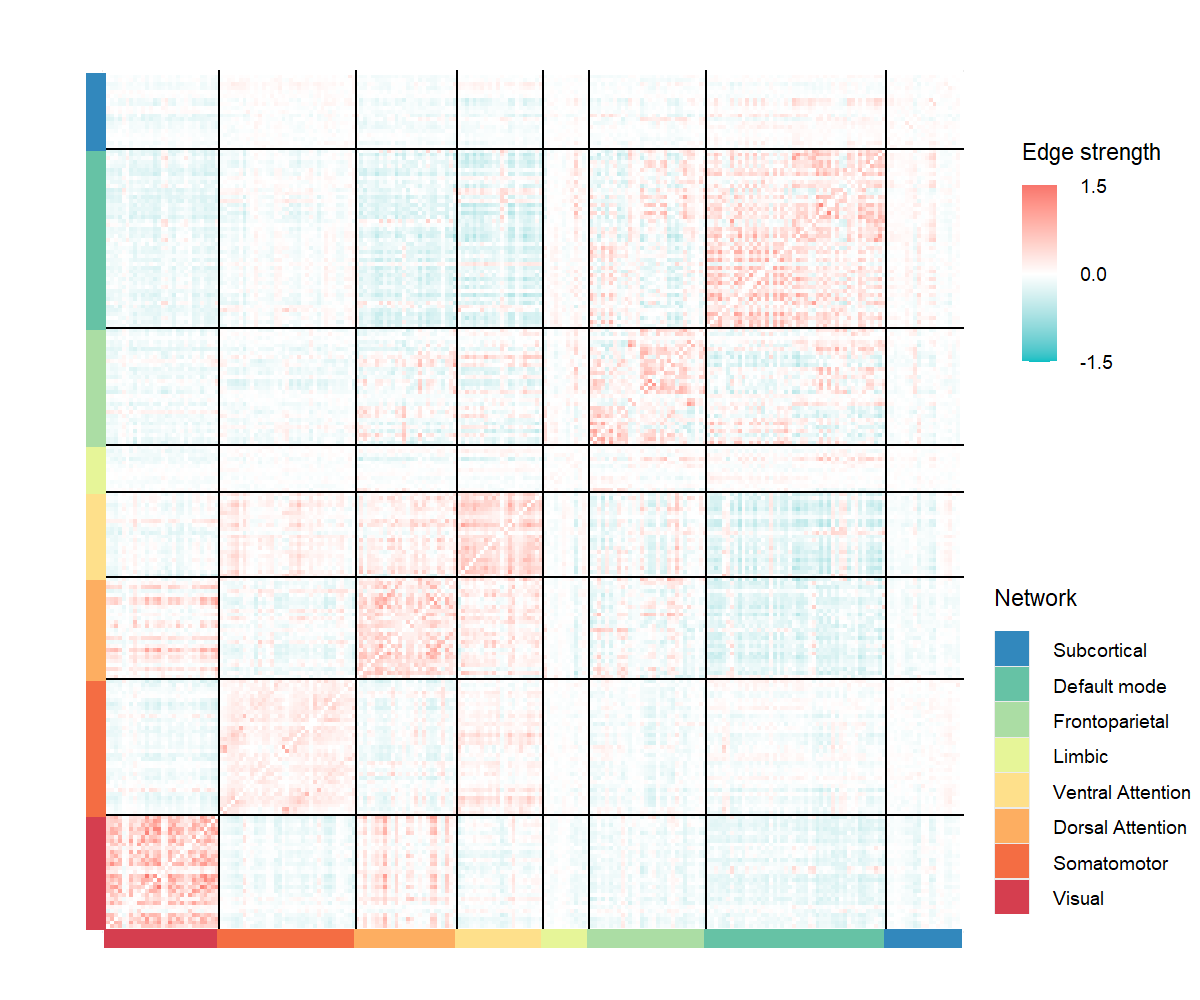

sub1=get("demomat")[1,] ## load demo data
vizHeatmap(data=sub1, filename="heatmap219.png")

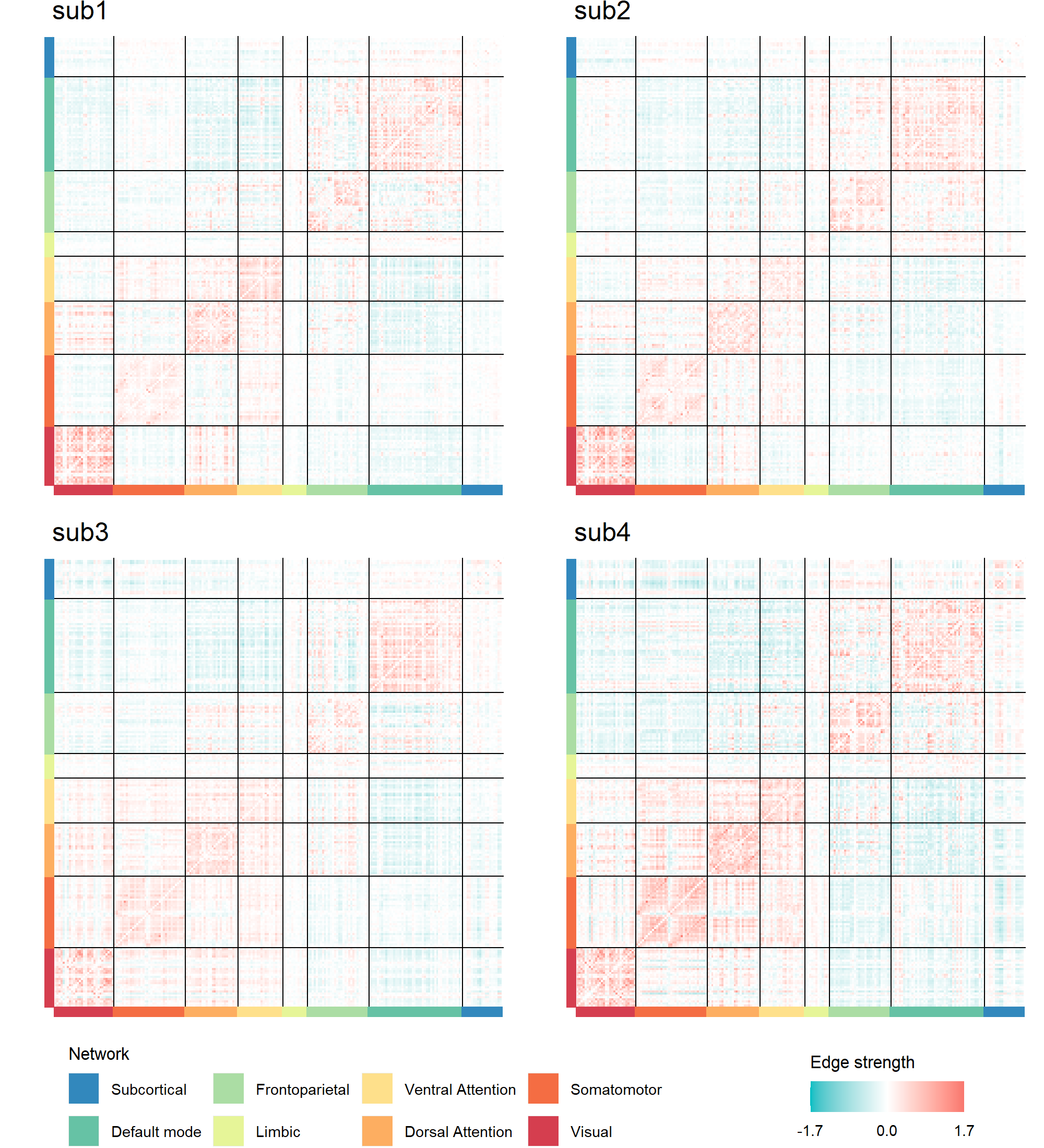

Multiple heatmaps can be generated in a similar manner
sub1=get("demomat")[1,]
sub2=get("demomat")[2,]
sub3=get("demomat")[3,]
sub4=get("demomat")[4,]
vizHeatmap(data=rbind(sub1,sub2,sub3,sub4),title=c("sub1","sub2","sub3","sub4"), filename = "4xheatmap219.png", ncol=2, nrow=2)
