HotellingEllipse

The HotellingEllipse package offers a comprehensive set of functions that help visualizing multivariate data through Hotelling’s T-squared ellipses. At its core, the package calculates the crucial parameters needed for Hotelling’s T-squared ellipse representation: the lengths of both the semi-minor and semi-major axes. These calculations are performed for two confidence intervals, 95% and 99%.

HotellingEllipse extends its functionality to provide coordinate points for plotting these ellipses. Users have the flexibility to generate either two-dimensional or three-dimensional coordinates, enabling the creation of both planar ellipses and spatial ellipsoids. While it offers pre-calculated results for common confidence intervals, it also allows users to specify custom confidence levels. For more features, please see the package vignette.

Installation

install.packages("HotellingEllipse")

# install.packages("remotes")
remotes::install_github("ChristianGoueguel/HotellingEllipse")

Usage

This section provides a comprehensive step-by-step tutorial on how to use the HotellingEllipse package. This guide will walk you through the entire process, from data preparation to final visualization.

library(HotellingEllipse)

data("specData", package = "HotellingEllipse")

set.seed(123)
pca_mod <- specData %>%
  select(where(is.numeric)) %>%
  PCA(scale.unit = FALSE, graph = FALSE)

pca_scores <- pca_mod %>%
  pluck("ind", "coord") %>%
  as_tibble() %>%
  print()
#> # A tibble: 100 × 5
#>      Dim.1    Dim.2  Dim.3   Dim.4 Dim.5
#>      <dbl>    <dbl>  <dbl>   <dbl> <dbl>
#>  1 25306.  -10831.  -1851.   -83.4 -560.
#>  2   -67.3   1137.  -2946.  2495.  -568.
#>  3 -1822.     -22.0 -2305.  1640.  -409.
#>  4 -1238.    3734.   4039. -2428.   379.
#>  5  3299.    4727.   -888. -1089.   262.
#>  6  5006.     -49.5  2534.  1917.  -970.
#>  7 -8325.   -5607.    960. -3361.   103.
#>  8 -4955.   -1056.   2510.  -397.  -354.
#>  9 -1610.    1271.  -2556.  2268.  -760.
#> 10 19582.    2289.    886.  -843.  1483.
#> # ℹ 90 more rows

Step 5. Run ellipseParam() for the first two principal components (k = 2). We want to compute the length of the semi-axes of the Hotelling ellipse (denoted a and b) when the first principal component, PC1, is on the x-axis (pcx = 1) and, the second principal component, PC2, is on the y-axis (pcy = 2).

res_2PCs <- ellipseParam(pca_scores, k = 2, pcx = 1, pcy = 2)

str(res_2PCs)
#> List of 5
#>  $ Tsquare     : tibble [100 × 1] (S3: tbl_df/tbl/data.frame)
#>   ..$ value: num [1:100] 13.0984 0.0536 0.0428 0.5969 1.0649 ...
#>  $ cutoff.99pct: num 9.76
#>  $ cutoff.95pct: num 6.24
#>  $ nb.comp     : num 2
#>  $ Ellipse     : tibble [1 × 4] (S3: tbl_df/tbl/data.frame)
#>   ..$ a.99pct: num 19369
#>   ..$ b.99pct: num 10800
#>   ..$ a.95pct: num 15492
#>   ..$ b.95pct: num 8639

a1 <- pluck(res_2PCs, "Ellipse", "a.99pct")
b1 <- pluck(res_2PCs, "Ellipse", "b.99pct")

a2 <- pluck(res_2PCs, "Ellipse", "a.95pct")
b2 <- pluck(res_2PCs, "Ellipse", "b.95pct")

T2 <- pluck(res_2PCs, "Tsquare", "value")

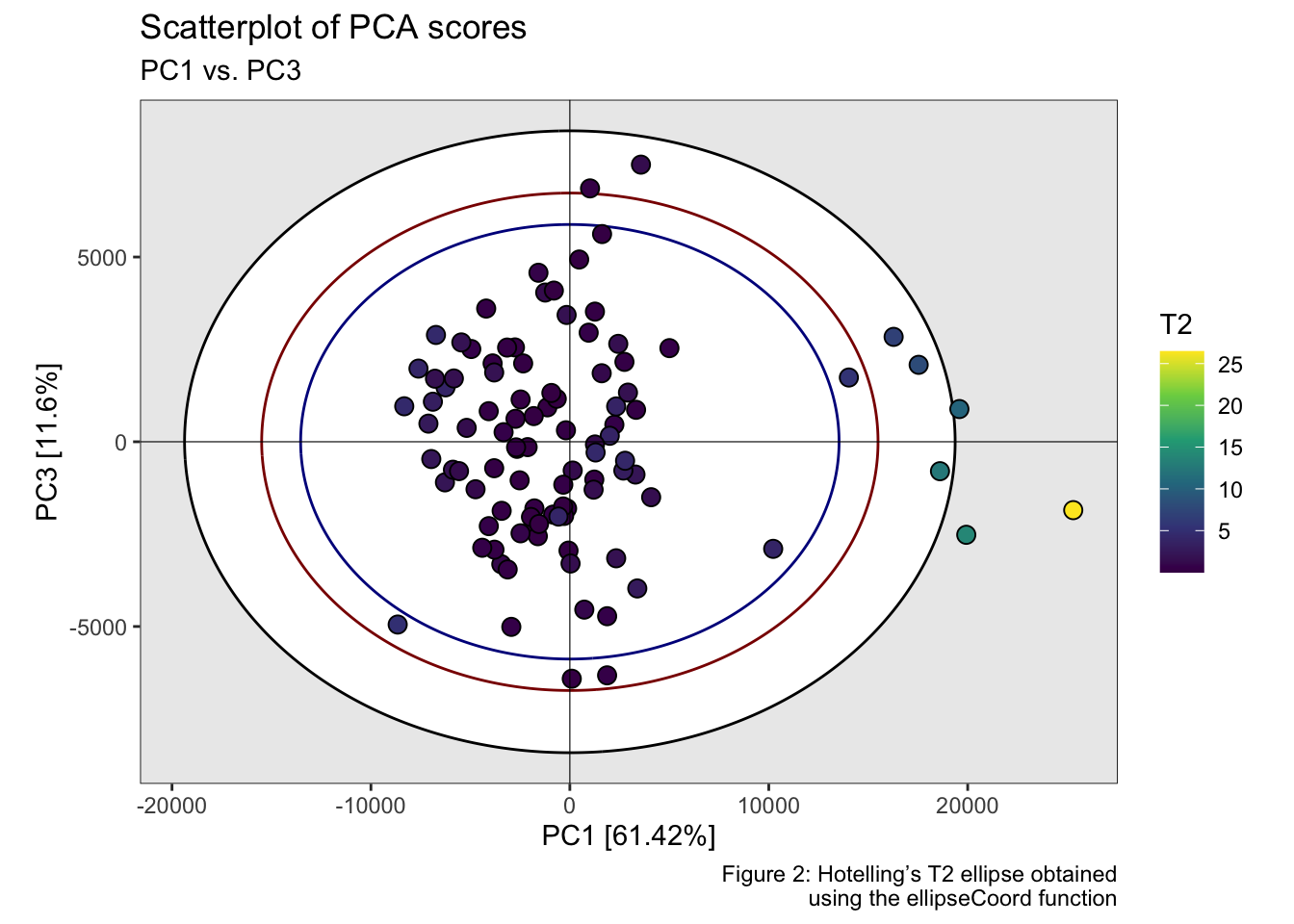

Another way to add Hotelling ellipse on the scatterplot of the scores is to use the function ellipseCoord(). This function provides the x and y coordinates of the confidence ellipse at user-defined confidence interval. The confidence interval conf.limit is set at 95% by default. Here, PC1 is on the x-axis (pcx = 1) and, the third principal component, PC3, is on the y-axis (pcy = 3).

coord_2PCs_99 <- ellipseCoord(pca_scores, pcx = 1, pcy = 3, conf.limit = 0.99, pts = 500)
coord_2PCs_95 <- ellipseCoord(pca_scores, pcx = 1, pcy = 3, conf.limit = 0.95, pts = 500)
coord_2PCs_90 <- ellipseCoord(pca_scores, pcx = 1, pcy = 3, conf.limit = 0.90, pts = 500)

str(coord_2PCs_99)
#> tibble [500 × 2] (S3: tbl_df/tbl/data.frame)
#>  $ x: num [1:500] 19369 19367 19363 19355 19344 ...
#>  $ y: num [1:500] -5.30e-13 1.06e+02 2.12e+02 3.18e+02 4.24e+02 ...

Step 6. Plot PC1 vs. PC2 scatterplot, with the two corresponding Hotelling ellipse. Points inside the two elliptical regions are within the 99% and 95% confidence intervals for the Hotelling’s T-squared.

pca_scores %>%
  ggplot(aes(x = Dim.1, y = Dim.2)) +
  geom_ellipse(aes(x0 = 0, y0 = 0, a = a1, b = b1, angle = 0), linewidth = .5, linetype = "solid", fill = "white") +
  geom_ellipse(aes(x0 = 0, y0 = 0, a = a2, b = b2, angle = 0), linewidth = .5, linetype = "solid", fill = "white") +
  geom_point(aes(fill = T2), shape = 21, size = 3, color = "black") +
  scale_fill_viridis_c(option = "viridis") +
  geom_hline(yintercept = 0, linetype = "solid", color = "black", linewidth = .2) +
  geom_vline(xintercept = 0, linetype = "solid", color = "black", linewidth = .2) +
  labs(title = "Scatterplot of PCA scores", subtitle = "PC1 vs. PC2", x = "PC1", y = "PC2", fill = "T2", caption = "Figure 1: Hotelling’s T2 ellipse obtained\n using the ellipseParam function") +
  theme_grey()

ggplot() +
  geom_polygon(data = coord_2PCs_99, aes(x, y), color = "black", fill = "white") +
  geom_path(data = coord_2PCs_95, aes(x, y), color = "darkred") +
  geom_path(data = coord_2PCs_90, aes(x, y), color = "darkblue") +
  geom_point(data = pca_scores, aes(x = Dim.1, y = Dim.3, fill = T2), shape = 21, size = 3, color = "black") +
  scale_fill_viridis_c(option = "viridis") +
  geom_hline(yintercept = 0, linetype = "solid", color = "black", linewidth = .2) +
  geom_vline(xintercept = 0, linetype = "solid", color = "black", linewidth = .2) +
  labs(title = "Scatterplot of PCA scores", subtitle = "PC1 vs. PC3", x = "PC1", y = "PC3", fill = "T2", caption = "Figure 2: Hotelling’s T2 ellipse obtained\n using the ellipseCoord function") +
  theme_grey()

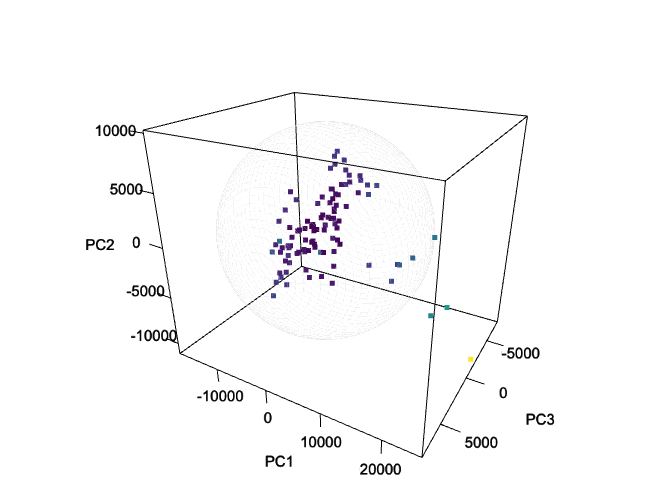

Note 1: Hotelling’s T-squared Ellipsoid - Visualizing Multivariate Data in 3D Space.

The ellipseCoord function has an optional parameter pcz, which is set to NULL by default. When specified, this parameter enables the computation of coordinates for Hotelling’s T-squared ellipsoid in three-dimensional space. In the example below, the 1st, 2nd, and 3rd components are mapped to the x, y, and z-axis, respectively. The resulting ellipsoid serves as a three-dimensional confidence region, encompassing a specified proportion of the data points based on the chosen confidence level.

df_ellipsoid <- ellipseCoord(pca_scores, pcx = 1, pcy = 2, pcz = 3, pts = 50)

str(df_ellipsoid)
#> tibble [2,500 × 3] (S3: tbl_df/tbl/data.frame)
#>  $ x: num [1:2500] -2.32e-13 -2.32e-13 -2.32e-13 -2.32e-13 -2.32e-13 ...
#>  $ y: num [1:2500] 6.93e-13 6.93e-13 6.93e-13 6.93e-13 6.93e-13 ...
#>  $ z: num [1:2500] 7745 7745 7745 7745 7745 ...

T2 <- ellipseParam(pca_scores, k = 3)$Tsquare$value

color_palette <- viridisLite::viridis(nrow(pca_scores))
scaled_T2 <- scales::rescale(T2, to = c(1, nrow(pca_scores)))
point_colors <- color_palette[round(scaled_T2)]

rgl::setupKnitr(autoprint = TRUE)
rgl::plot3d(
  x = df_ellipsoid$x,
  y = df_ellipsoid$y,
  z = df_ellipsoid$z,
  xlab = "PC1",
  ylab = "PC2",
  zlab = "PC3",
  type = "l",
  lwd = 0.5,
  col = "lightgray",
  alpha = 0.5)
rgl::points3d(
  x = pca_scores$Dim.1,
  y = pca_scores$Dim.2,
  z = pca_scores$Dim.3,
  col = point_colors,
  size = 5,
  add = TRUE)
rgl::bgplot3d({
    par(mar = c(0,0,0,0))
    plot.new()
    color_legend <- as.raster(matrix(rev(color_palette), ncol = 1))
    rasterImage(color_legend, 0.85, 0.1, 0.9, 0.9)
    text(
      x = 0.92,
      y = seq(0.1, 0.9, length.out = 5),
      labels = round(seq(min(T2), max(T2), length.out = 5), 2),
      cex = 0.7)
    text(x = 0.92, y = 0.95, labels = "T2", cex = 0.8)})
rgl::view3d(theta = 30, phi = 25, zoom = .8)

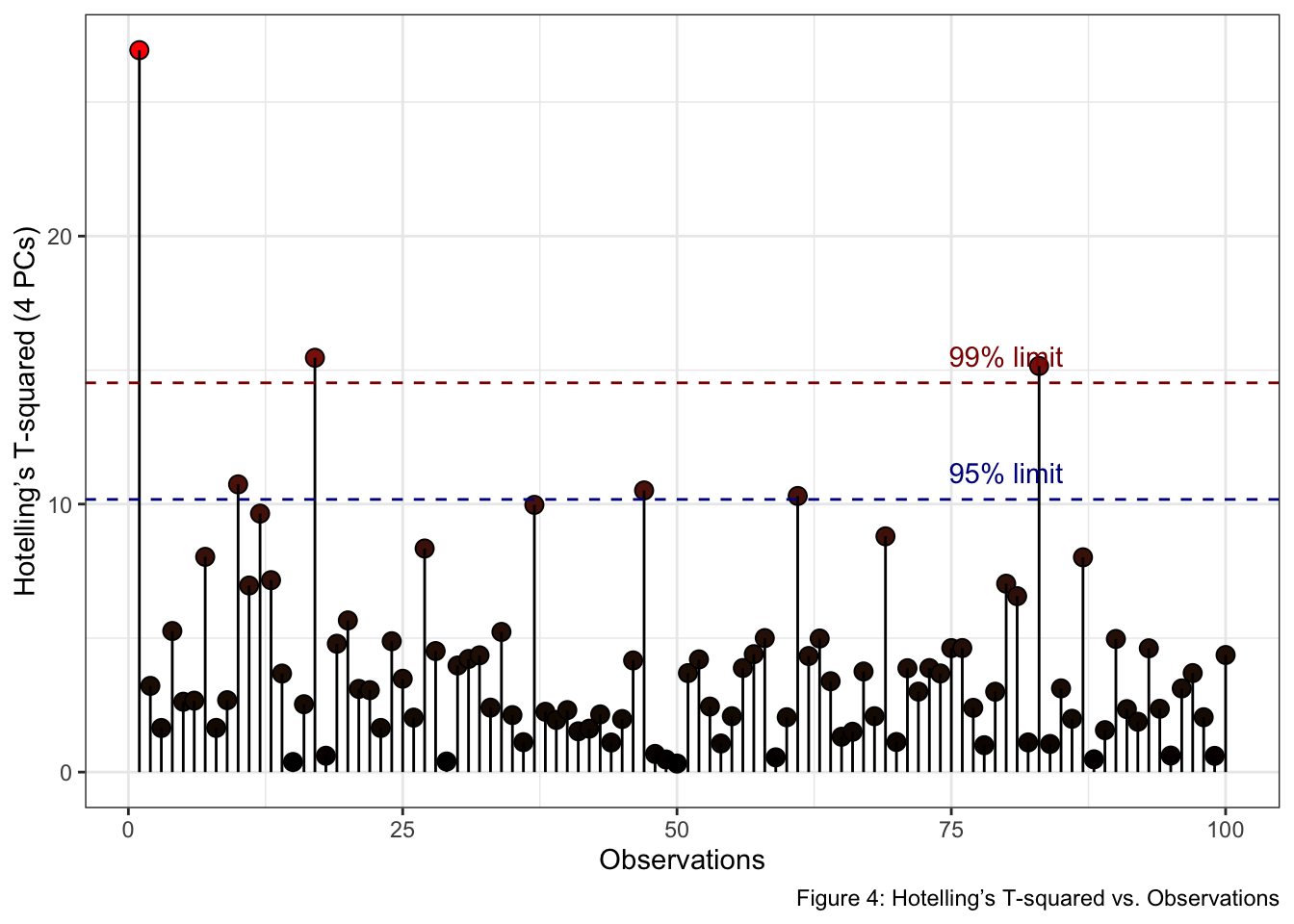

When dealing with more than two principal components, visualizing Hotelling’s T-squared becomes challenging in traditional 2D or 3D plots. A more effective approach for analyzing and interpreting this multivariate statistic involves plotting Hotelling’s T-squared against Observations, where the confidence limits are plotted as a line. Thus, observations below the two lines are within the Hotelling’s T-squared limits.

In the provided example, we utilize the ellipseParam() function with a cumulative variance threshold of 0.95 (threshold = 0.95). This setting ensures that the analysis captures 95% of the total variance in the data.

df <- ellipseParam(pca_scores, threshold = 0.95)

str(df)
#> List of 4
#>  $ Tsquare     : tibble [100 × 1] (S3: tbl_df/tbl/data.frame)
#>   ..$ value: num [1:100] 6.53 0.78 0.399 1.276 0.636 ...
#>  $ cutoff.99pct: num 14.5
#>  $ cutoff.95pct: num 10.2
#>  $ nb.comp     : num 4

tibble(
  T2 = pluck(df, "Tsquare", "value"),
  obs = 1:nrow(pca_scores)
  ) %>%
  ggplot() +
  geom_point(aes(x = obs, y = T2, fill = T2), shape = 21, size = 3, color = "black") +
  geom_segment(aes(x = obs, y = T2, xend = obs, yend = 0), size = .5) +
  scale_fill_gradient(low = "black", high = "red", guide = "none") +
  geom_hline(yintercept = pluck(df, "cutoff.99pct"), linetype = "dashed", color = "darkred", linewidth = .5) +
  geom_hline(yintercept = pluck(df, "cutoff.95pct"), linetype = "dashed", color = "darkblue", linewidth = .5) +
  annotate("text", x = 80, y = 13, label = "99% limit", color = "darkred") +
  annotate("text", x = 80, y = 9, label = "95% limit", color = "darkblue") +
  labs(x = "Observations", y = "Hotelling’s T-squared (4 PCs)", fill = "T2 stats", caption = "Figure 4: Hotelling’s T-squared vs. Observations") +
  theme_bw()
#> Warning: Using `size` aesthetic for lines was deprecated in ggplot2 3.4.0.
#> ℹ Please use `linewidth` instead.
#> This warning is displayed once every 8 hours.
#> Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
#> generated.
