gggenomes is a versatile graphics package for comparative genomics. It extends the popular R visualization package ggplot2 by adding dedicated plot functions for genes, syntenic regions, etc. and verbs to manipulate the plot to, for example, quickly zoom in into gene neighborhoods.

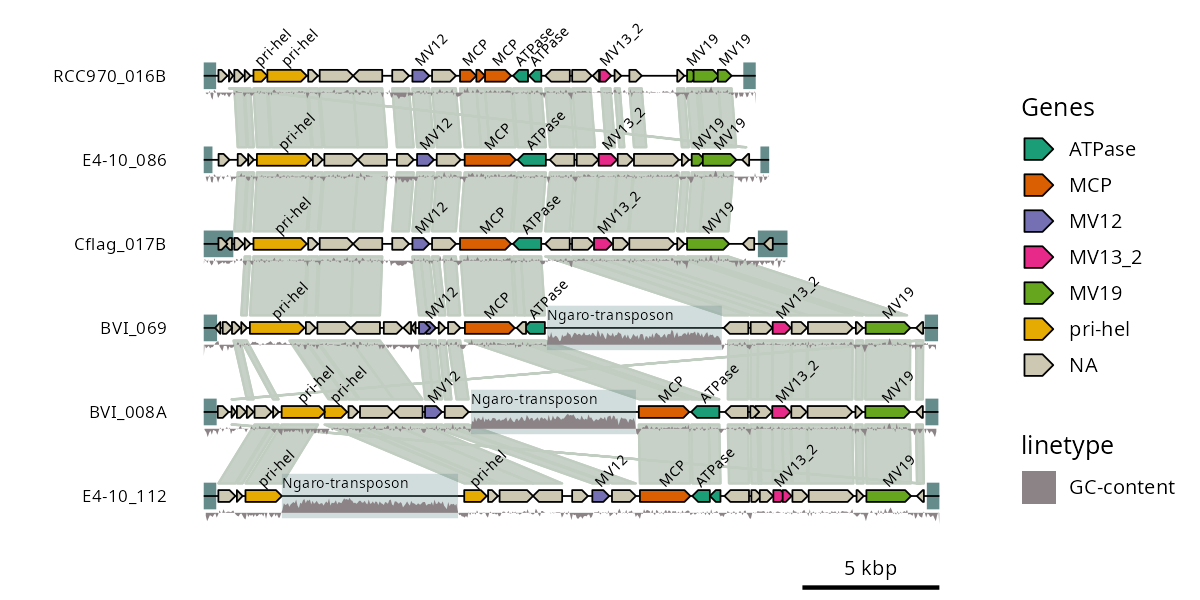

gggenomes makes it easy to combine data and annotations from different sources into one comprehensive and elegant plot. Here we compare the genomic architecture of 6 viral genomes initially described in Hackl et al.: Endogenous virophages populate the genomes of a marine heterotrophic flagellate
library(gggenomes)
# to inspect the example data shipped with gggenomes
data(package="gggenomes")
gggenomes(
genes = emale_genes, seqs = emale_seqs, links = emale_ava,
feats = list(emale_tirs, ngaros=emale_ngaros, gc=emale_gc)) |>
add_sublinks(emale_prot_ava) |>
sync() + # synchronize genome directions based on links
geom_feat(position="identity", size=6) +
geom_seq() +
geom_link(data=links(2)) +
geom_bin_label() +
geom_gene(aes(fill=name)) +
geom_gene_tag(aes(label=name), nudge_y=0.1, check_overlap = TRUE) +
geom_feat(data=feats(ngaros), alpha=.3, size=10, position="identity") +
geom_feat_note(aes(label="Ngaro-transposon"), data=feats(ngaros),
nudge_y=.1, vjust=0) +
geom_wiggle(aes(z=score, linetype="GC-content"), feats(gc),
fill="lavenderblush4", position=position_nudge(y=-.2), height = .2) +
scale_fill_brewer("Genes", palette="Dark2", na.value="cornsilk3")
ggsave("emales.png", width=8, height=4)For a reproducible recipe describing the full evolution of an earlier version of this plot with an older version of gggenomes starting from a mere set of contigs, and including the bioinformatics analysis workflow, have a look at From a few sequences to a complex map in minutes.
Visualization is a corner stone of both exploratory analysis and science communication. Bioinformatics workflows, unfortunately, tend to generate a plethora of data products often in adventurous formats making it quite difficult to integrate and co-visualize the results. Instead of trying to cater to the all these different formats explicitly, gggenomes embraces the simple tidyverse-inspired credo:
As a result gggenomes helps bridge the gap between data generation, visual exploration, interpretation and communication, thereby accelerating biological research.
Under the hood gggenomes uses a light-weight track system to accommodate a mix of related data sets, essentially implementing ggplot2 with multiple tidy tables instead of just one. The data in the different tables are tied together through a global genome layout that is automatically computed from the input and defines the positions of genomic sequences (chromosome/contigs) and their associated features in the plot.
gggenomes draws inspiration from some brilliant packages, in particular: * gggenes by David Wilkins * ggtree by Guangchuang Yu * ggraph by Thomas Lin Pedersen
gggenomes is at this point in an alpha release state, and only available as a developmental package from github.
# if you don't have it
install.packages("devtools")
# install gggenomes
devtools::install_github("thackl/gggenomes")
# optionally install ggtree to plot genomes next to trees
# https://bioconductor.org/packages/release/bioc/html/ggtree.html
if (!requireNamespace("BiocManager", quietly = TRUE))
install.packages("BiocManager")
BiocManager::install("ggtree")These binaries (installable software) and packages are in development.
