The xiacf package provides a robust framework for detecting complex non-linear and functional dependence in time series data. Traditional linear metrics, such as the standard Autocorrelation Function (ACF) and Cross-Correlation Function (CCF), often fail to detect symmetrical or purely non-linear relationships.
This package overcomes these limitations by utilizing
Chatterjee’s Rank Correlation (\(\xi\)), offering both univariate
(\(\xi\)-ACF) and multivariate (\(\xi\)-CCF) analysis tools. It features
rigorous statistical hypothesis testing powered by advanced surrogate
data generation algorithms (IAAFT and MIAAFT) and dynamic Family-Wise
Error Rate (FWER) control, all implemented in high-performance C++ using
RcppArmadillo.
If you use xiacf in your research, please cite our
latest working paper detailing the methodology:
Watanabe, Y. (2026). Differential diagnosis of nonlinearity: Integrating the BDS omnibus test with chatterjee’s xi for local structural identification. In Social Science Research Network. https://doi.org/10.2139/ssrn.6829431
X leads Y vs Y leads X) and captures
contemporaneous effects (Lag 0) where traditional Pearson CCF
fails.xi_matrix): Simultaneously evaluate causal
pathways across an entire system of time series to build directed
non-linear networks.xiacf uniquely implements a Dual-Family
FWER Control. It completely decouples the significance
thresholds for pure contemporaneous effects (Lag 0) and temporal causal
propagation (Lag > 0), maximizing the statistical power to detect
delayed causal spillovers.autoplot() methods
instantly generate beautiful, unified, and publication-ready
ggplot2 visualizations.doFuture) rolling window functions to
capture time-varying dependencies smoothly and efficiently.You can install the stable version of xiacf from CRAN with:
install.packages("xiacf")You can install the development version from GitHub with:
# install.packages("remotes")

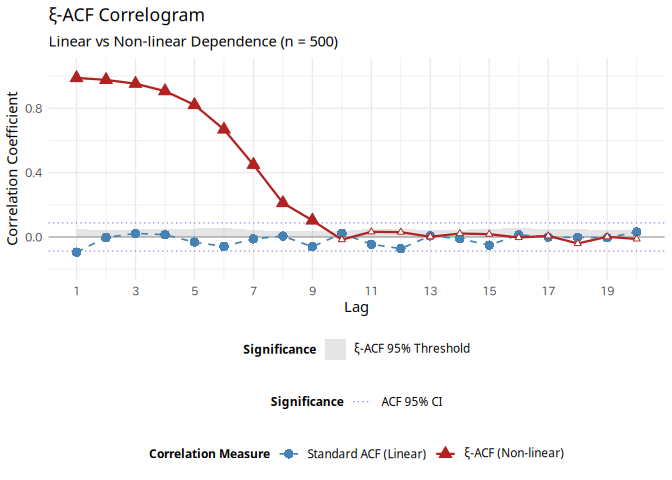

remotes::install_github("yetanothersu/xiacf")Detecting strong non-linear auto-dependence that standard linear ACF fails to capture.
### 1. Univariate Non-linear ACF (xi-ACF)
library(xiacf)
library(ggplot2)
set.seed(42)
n <- 300
# Generate a series with V-shaped auto-dependence (mean zero)
# Standard Pearson ACF will miss this, but Xi-ACF will detect it.
A <- numeric(n)
A[1] <- rnorm(1)
for (t in 2:n) {
# Subtracting 0.8 keeps the series centered around 0
A[t] <- abs(A[t - 1]) - 0.8 + rnorm(1, sd = 0.2)
}
res_acf <- xi_acf(A, max_lag = 5, n_surr = 249)
#> Warning in check_surrogate_count(n_surr = n_surr, sig_level = sig_level, :
#> Warning: For 5 simultaneous tests at sig_level = 0.05, the empirical
#> distribution of the max-statistic may be unstable with n_surr = 249.
#> Recommended n_surr is at least 399.
print(res_acf)
#>
#> === Univariate Xi-Autocorrelation Function ===
#> Time series length: 300
#> Max Lag: 5
#> Surrogates (IAAFT): 249
#> Significance Level: 0.05 (FWER controlled)
#> ==============================================
#> Significant Lags:
#> Lag Xi Global_Threshold Xi_Excess
#> 1 0.4470805 0.2976711 0.1494094

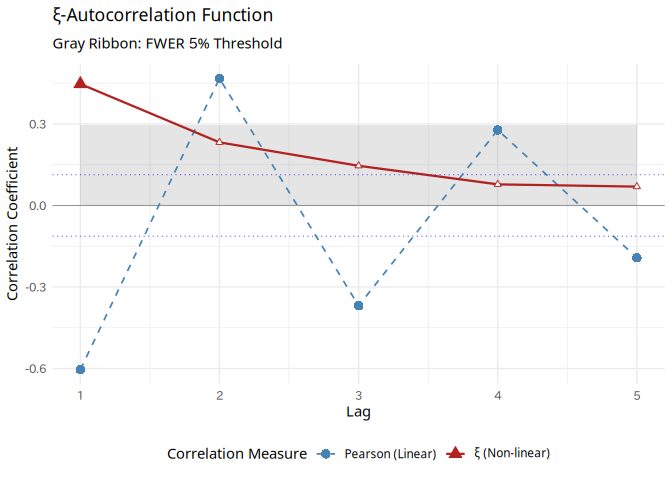

autoplot(res_acf)

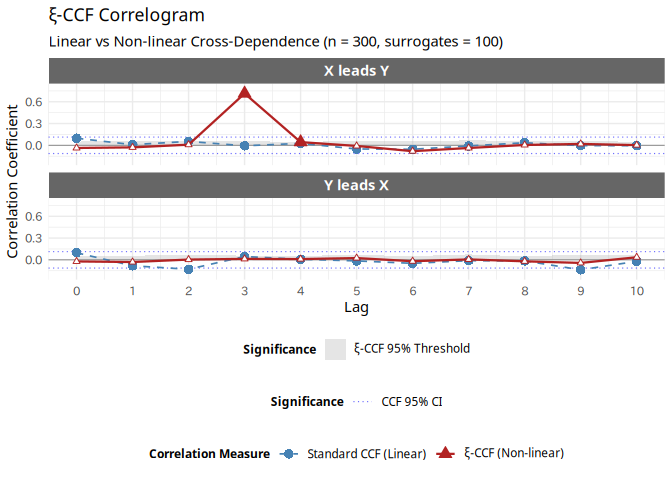

Discovering hidden causal pathways across different time series.
### 2. Bivariate Non-linear CCF (xi-CCF)
# X is pure noise (mean 0, symmetric)
X <- rnorm(n)
Y <- numeric(n)
# Y is a purely quadratic function of X at lag 2
for (t in 3:n) {
Y[t] <- X[t - 2]^2 + rnorm(1, sd = 0.2)
}
# Center Y so it contains both negative and positive values.
# Without this, Y is always positive, making abs(Y) purely linear later!
Y <- as.numeric(scale(Y))
res_ccf <- xi_ccf(X, Y, max_lag = 5, n_surr = 249, direction = "both")
#> Warning in xi_ccf(X, Y, max_lag = 5, n_surr = 249, direction = "both"):
#> Warning: For 10 simultaneous tests at sig_level = 0.05, the empirical
#> distribution of the max-statistic may be unstable with n_surr = 249.
#> Recommended n_surr is at least 399.
print(res_ccf)
#>
#> === Bivariate Xi-Cross-Correlation (CCF) ===
#> Variables: X, Y
#> Time series length: 300
#> Max Lag: 5
#> Direction: both
#> Surrogates (MIAAFT): 249
#> Significance Level: 0.05 (FWER controlled)
#> ============================================
#> Top 5 Strongest Causal Pathways:
#> Lead_Var Lag_Var Lag Xi CCF Global_Threshold Xi_Excess
#> X Y 2 0.6388298 0.123921 0.09151595 0.5473138

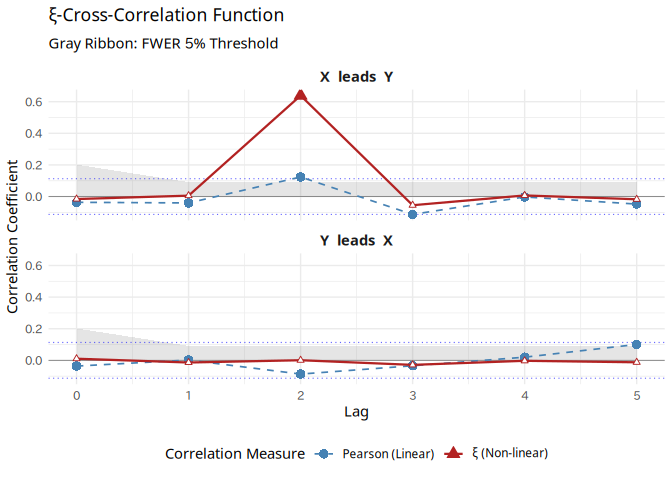

autoplot(res_ccf)

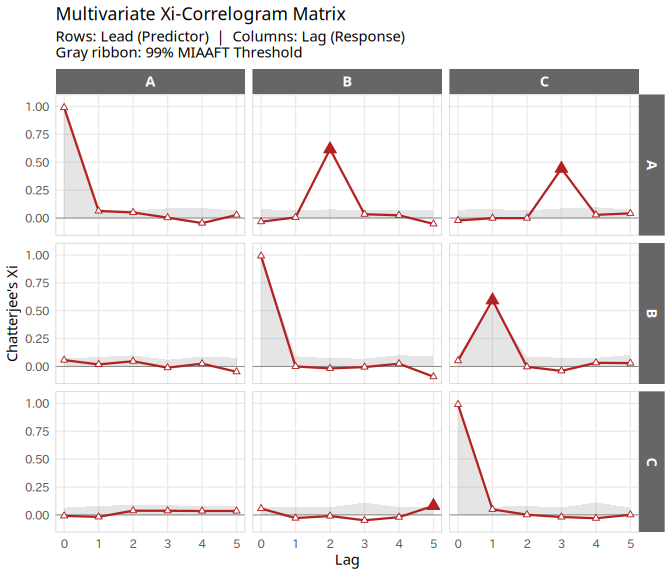

Analyze an entire system of variables at once.
### 3. Multivariate Network Matrix & Pathway Extraction
Z <- numeric(n)
# Z depends on the absolute value of Y at lag 1
# Because Y is centered, this creates a true V-shaped non-linear relationship
for (t in 2:n) {
Z[t] <- abs(Y[t - 1]) + rnorm(1, sd = 0.2)
}
Z <- as.numeric(scale(Z))
df_system <- data.frame(X = X, Y = Y, Z = Z)
# Compute the multivariate Xi-correlogram matrix
res_matrix <- xi_matrix(df_system, max_lag = 3, n_surr = 499)

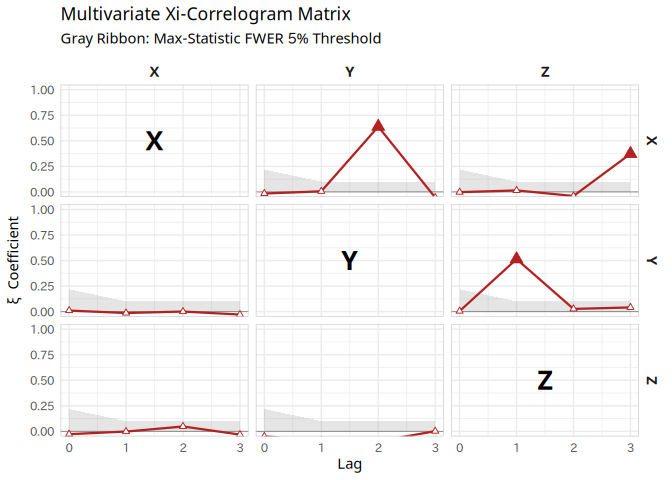

autoplot(res_matrix)
# Extract it for a detailed bivariate analysis with exact FWER re-evaluation!
ext_ccf <- extract_xi_ccf(res_matrix, var_x = "X", var_y = "Z", direction = "x_leads")

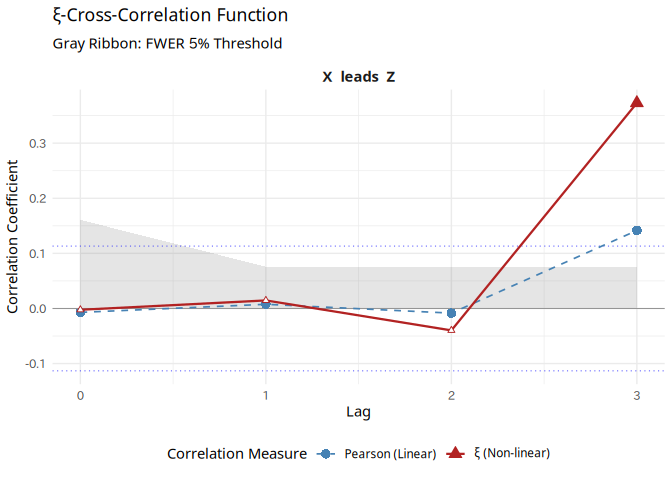

autoplot(ext_ccf)

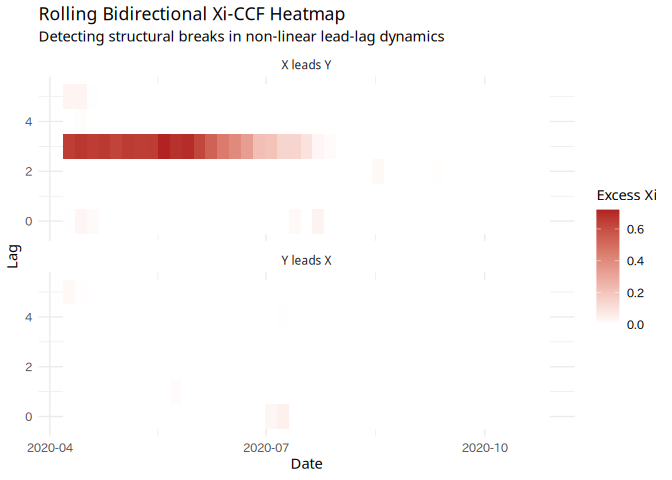

Extract time-varying non-linear dependencies. The output is a Tidy data frame, perfectly structured for custom EDA and visualization.
### 4. Rolling Analysis for Dynamic Relationships
library(future)
plan(multisession) # or multicore on Linux/macOS
rolling_res <- run_rolling_xi_ccf(
x = X,
y = Y,
window_size = 50,
step_size = 10,
max_lag = 3,
n_surr = 199
)
head(rolling_res)
#> Window_ID Lead_Var Lag_Var Lag Xi Global_Threshold Xi_Excess
#> 1 1 x y 0 -0.03601441 0.2570228 0.0000000
#> 2 1 x y 1 -0.04625000 0.2185806 0.0000000
#> 3 1 x y 2 0.54798089 0.2185806 0.3294003
#> 4 1 x y 3 -0.06657609 0.2185806 0.0000000
#> 5 1 y x 0 -0.07803121 0.2570228 0.0000000
#> 6 1 y x 1 0.00125000 0.2185806 0.0000000The theoretical foundation and surrogate data methodologies implemented in this package are based on the following works:
This project is licensed under the MIT License - see the LICENSE file for details.
